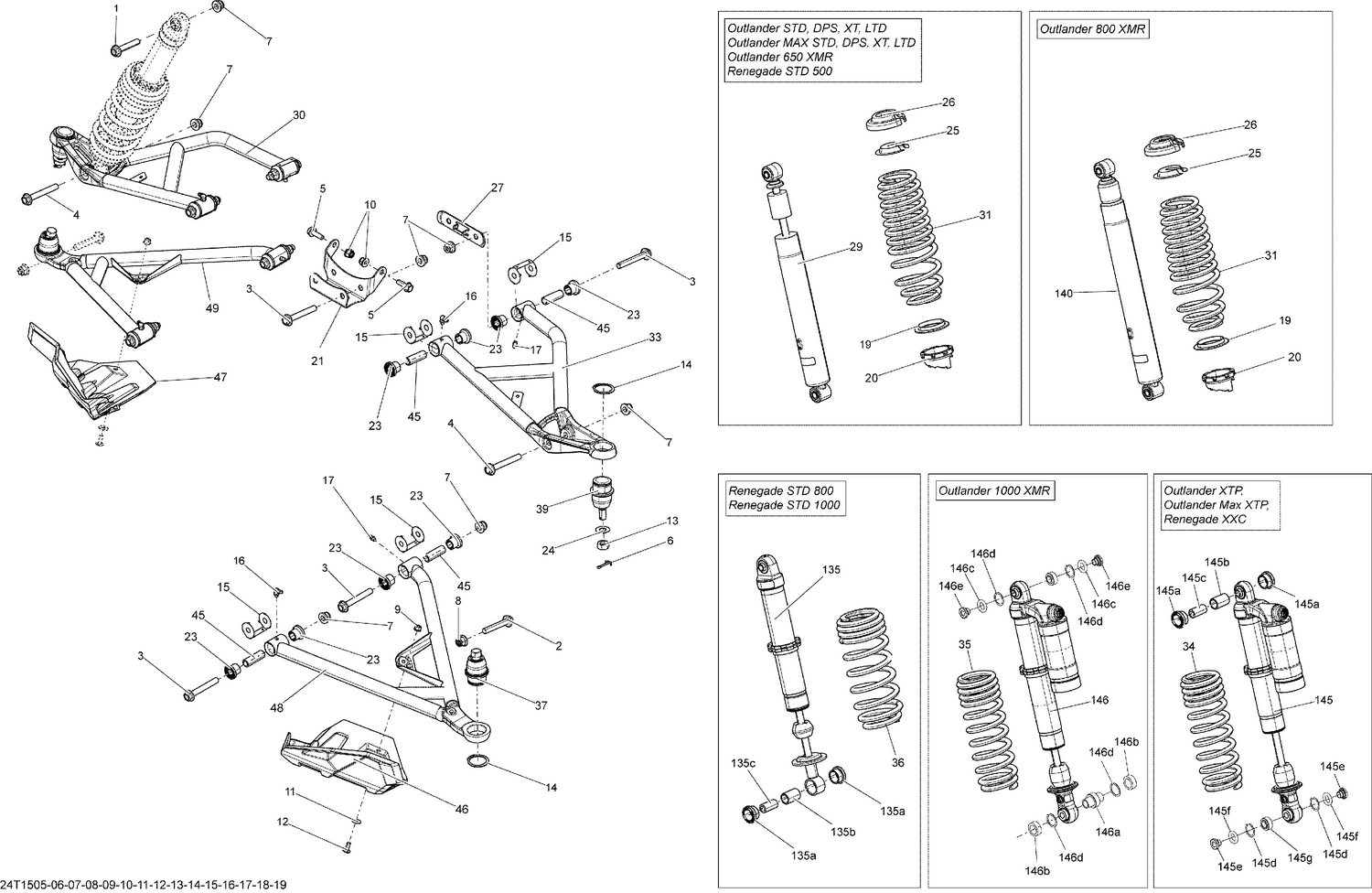

| Ref | Part Number | Description |
|---|
| 1 |
207605546 |
Hex. Flange Screw M10 X 55 |
| 2 |
207606044 |
Hex. Flange Screw M10 X 60 |
| 3 |
207607046 |
Hex. Flange Screw M10 X 70 |
| 4 |
250001038 |
Hex. Flange Screw M10 X 75 This part replaces 207607587. |
| 5 |
207682534 |
Hex. Flange Screw M8 X 25 |
| 6 |
211400017 |
Cotter Pin |
| 7 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 8 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 9 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 10 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 11 |
234062670 |
Stainless Steel Flat Washer |
| 12 |
250000755 |
Torx Screw M6 X 16 This part replaces 250000261. |
| 13 |
250100099 |
Nut M12 |
| 14 |
293370035 |
Circlip |
| 16 |
293550056 |
Grease Fitting 90° |
| 17 |
408200700 |
Grease Fitting |
| 21 |
705203247 |
Upper Front Holder |
| 24 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 27 |
706200998 |
Front Suspension Cross Plate |
| 30 |
706201797 |
Black RH Upper Arm |
| 33 |
706201796 |
Black LH Upper Arm |
| 35 |
XXX |
Not Available As Spare Parts |
| 36 |
XXX |
Not Available As Spare Parts |
| 37 |
706202045 |
Ball Joint |
| 39 |
706202044 |
Ball Joint |
| 46 |
XXX |
Not Available As Spare Parts |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
706204639 |
LH Lower Suspension Arm This part replaces 706201874. |
| 49 |
706202870 |
Black, RH Lower Arm This part replaces 706201875. |
| 135 |
XXX |
Not Available As Spare Parts |
| 135a |
XXX |
Not Available As Spare Parts |
| 135b |
XXX |
Not Available As Spare Parts |
| 135c |
XXX |
Not Available As Spare Parts |
| 140 |
XXX |
Not Available As Spare Parts |
| 145d |
XXX |
Not Available As Spare Parts |
| 146 |
XXX |
Not Available As Spare Parts |
| 146a |
XXX |
Not Available As Spare Parts |
| 146b |
XXX |
Not Available As Spare Parts |
| 146c |
XXX |
Not Available As Spare Parts |
| 146d |
XXX |
Not Available As Spare Parts |
