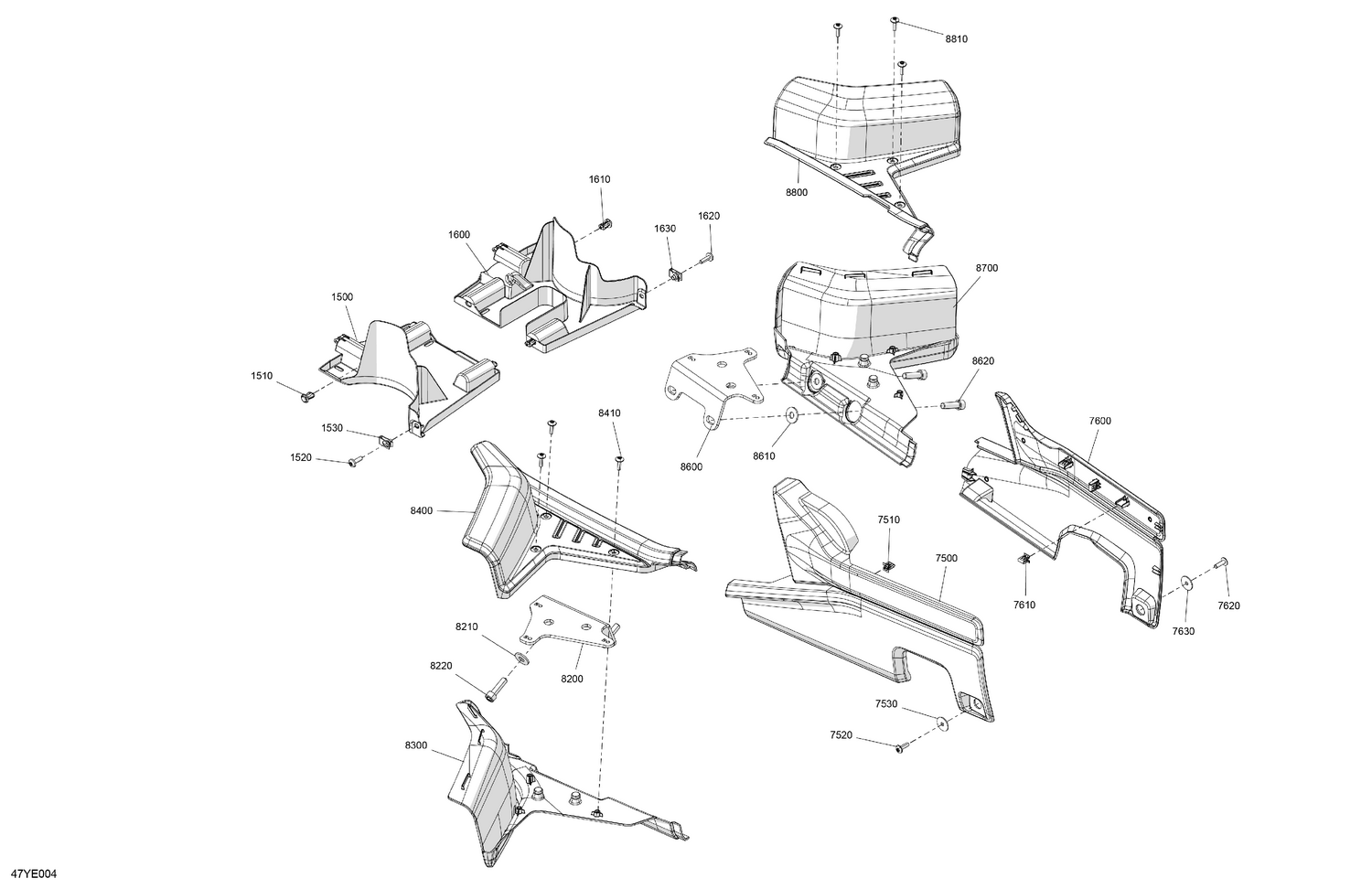

07- Body - Skid Plate
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1500 | 705017695 | LH Skid Plate |
| 1510 | 293150230 | Tuflok Plastic Rivet |
| 1520 | 250000705 | Torx Truss Screw M6 X 20 |
| 1530 | 250100198 | Panel Nut M6 X 1.0 |
| 1600 | 705017696 | RH Skid Plate |
| 1610 | 293150230 | Tuflok Plastic Rivet |
| 1620 | 250000705 | Torx Truss Screw M6 X 20 |
| 1630 | 250100198 | Panel Nut M6 X 1.0 |
| 7500 | 705017384 | LH Skid Plate |
| 7510 | 517302785 | Edge Clip |
| 7520 | 250000722 | Torx Screw M6 X 20 |
| 7530 | 250200029 | Washer M6 |
| 7600 | 705017385 | RH Skid Plate |
| 7610 | 517302785 | Edge Clip |
| 7620 | 250000722 | Torx Screw M6 X 20 |
| 7630 | 250200029 | Washer M6 |
| 8200 | 705018640 | LH Deflector Support |
| 8210 | 503191926 | Washer |
| 8220 | 244003560 | SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 8300 | 705018744 | LH Lower Deflector |
| 8400 | 705018742 | LH Upper Deflector |
| 8410 | 250001155 | Screw Type K-50 X20 |
| 8600 | 705018639 | RH Deflector Support |
| 8610 | 503191926 | Washer |
| 8620 | 244003560 | SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 8700 | 705018745 | RH Lower Deflector |
| 8800 | 705018743 | RH Upper Deflector |
