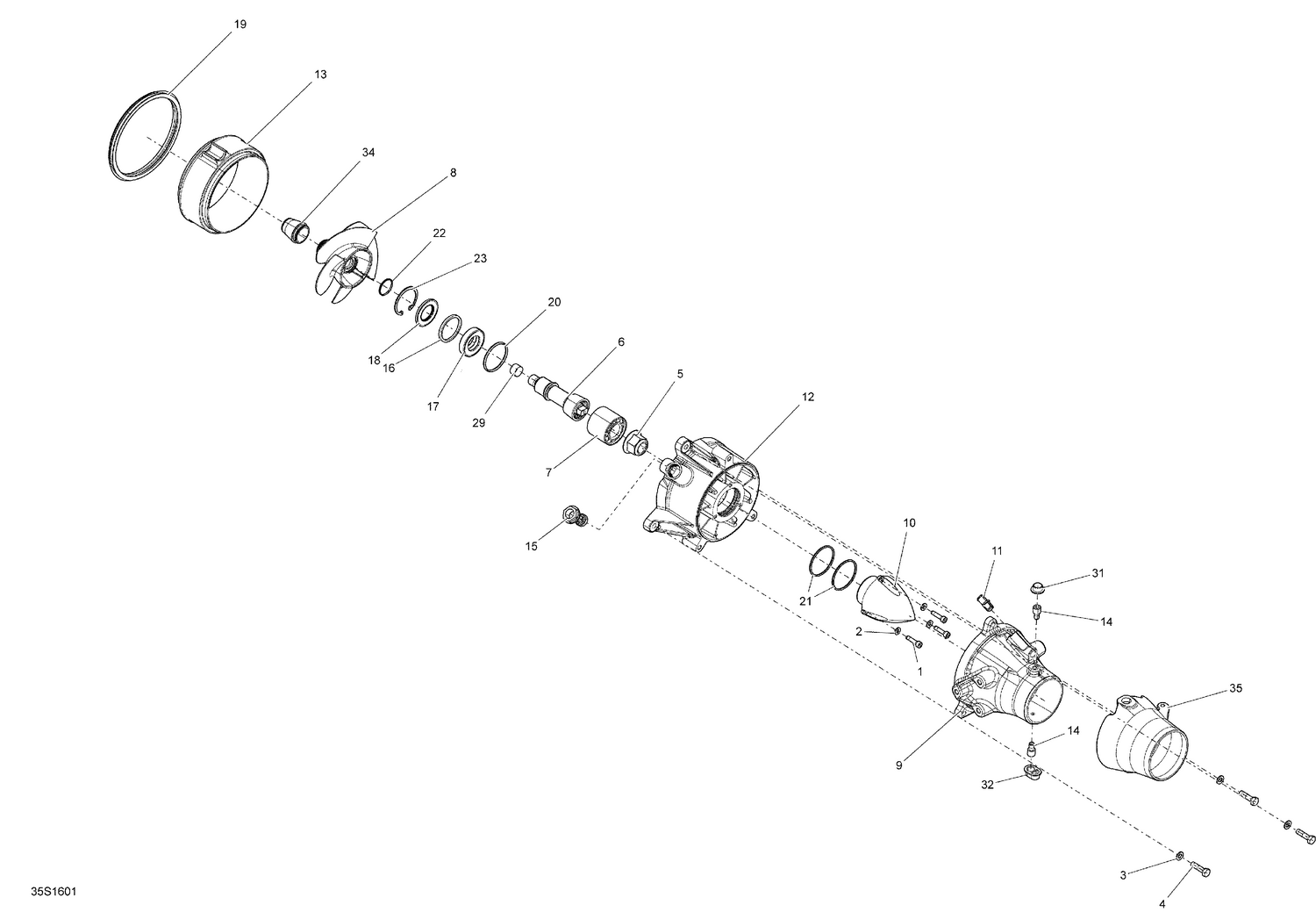

05- Pump
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 2 | 234061600 | Stainless Flat Washer M6 |
| 3 | 234080600 | Flat Washer M8, Stainless |
| 4 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 5 | 250100104 | Elastic Flange Nut M20 |
| 6 | 267000581 | Impeller Shaft |
| 7 | 267000583 | Conical Bearing |
| 8 | 267001070 | Impeller Ass'y This part replaces 267000584. |
| 9 | 267000909 | Venturi This part replaces 267000587. |
| 10 | 267000769 | Impeller Cover |
| 11 | 267000782 | Siphon Tube |
| 12 | 267000856 | Impeller Housing |
| 13 | 267000925 | Wear Ring This part replaces 267000813. |
| 14 | 268000141 | Socket Head Screw M8 X 13 |
| 15 | 267000282 | Plug |
| 16 | 271001393 | Spacer |
| 17 | 271002071 | Seal This part replaces 293200086. |
| 18 | 293200089 | Oil Seal |
| 19 | 293200134 | Neoprene Seal |
| 20 | 293300090 | O-Ring |
| 21 | 293300096 | O-Ring |
| 22 | 293300114 | O-Ring |
| 23 | 293370038 | Circlip |
| 31 | 293900007 | Venturi Bushing |
| 32 | 293900010 | Plastic Bushing |
| 34 | 267000829 | Boot Impeller |
