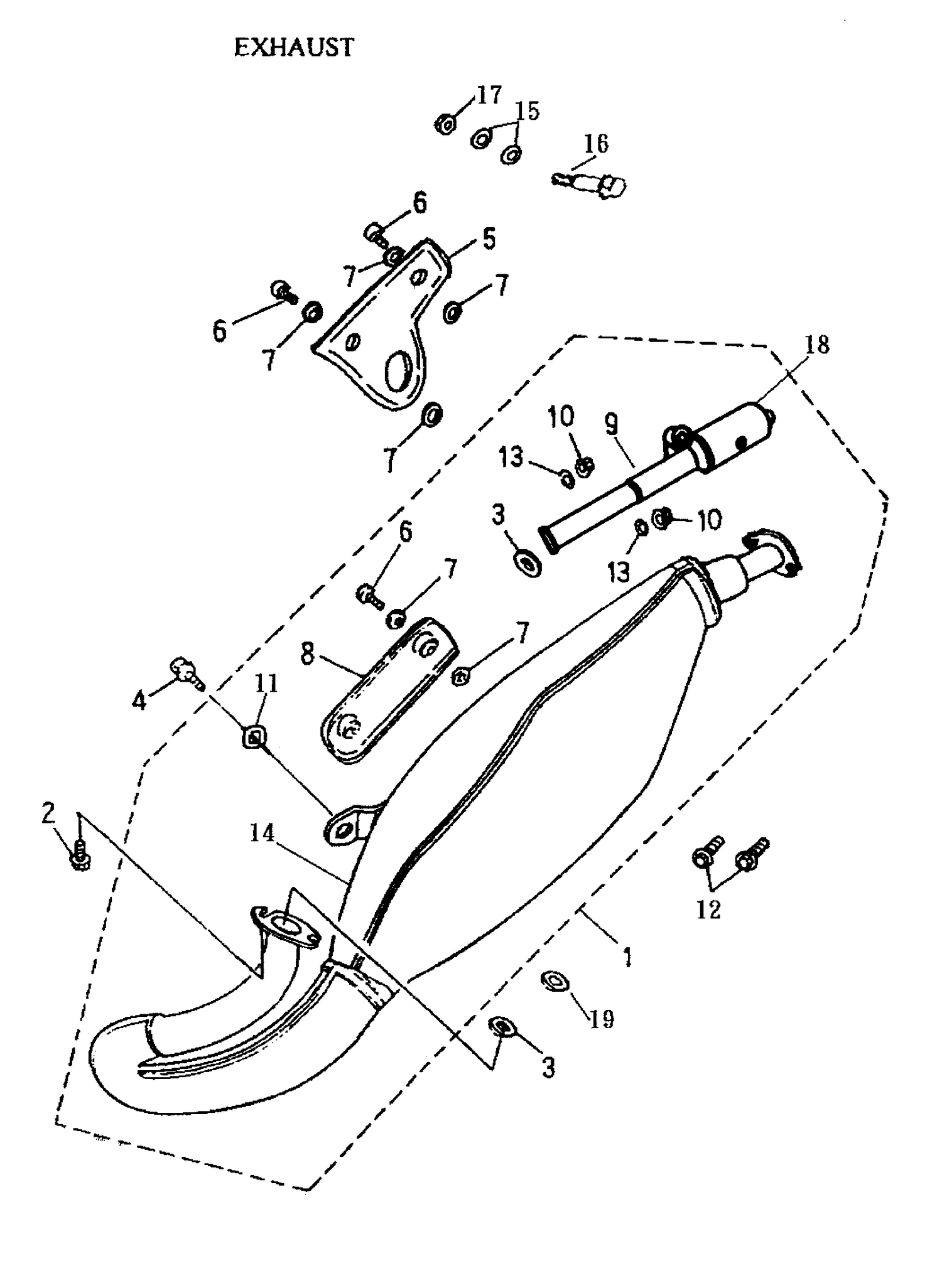

01- Exhaust System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A1830014500C | Exhaust Pipe Ass'y |
| 2 | A920010601810 | HEXAGONAL HEAD PHILLIPS BOLT M6X18 - Call your local BRP dealership |
| 3 | A18291101000 | EXHAUST PIPE GASKET - Call your local BRP dealership |
| 4 | A960000802512 | Hex. Washer Face Bolt M8 X 25 |
| 5 | A18301145000 | INSOLATOR - Call your local BRP dealership |
| 6 | A960000601208L | Hex. Washer Face Bolt M6 X 12 |
| 7 | A18292104000 | Muffler Shroud Packing |
| 8 | A18318145000 | Muffler Shroud |
| 9 | A1832114500C | Tail Of Muffler |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | A941110814520 | Spring Washer |
| 12 | A960000602510 | Hex. Washer Face Bolt M6 X 25 |
| 13 | A941010612015 | Plain Washer |
| 14 | A1831114500C | EXHAUST PIPE FRONT - Call your local BRP dealership |
| 15 | A941051022025G | PLAIN WASHER - Call your local BRP dealership |
| 16 | A960001004814G | HEXAGONAL WASHER FACE BOLT M10X48 - Call your local BRP dealership |
| 17 | V9035010000010LL | Nylon Nut M10 This part replaces A9035010000G. |
| 18 | A18330145000 | Spark Arrester |
