| Ref | Part Number | Description |
|---|
| 1 |
0434691 |
SUPPORT PIVOTANT |
| 1 |
0434724 |
SUPPORT PIVOTANT |
| 8 |
0513787 |
DISPOSITIF DE RETENUE, interrupteur-limiteur de relevage |
| 9 |
0337591 |
CAM, Tilt limit switch |
| 11 |
0337592 |
COLLAR, Cam, tilt limit switch |
| 12 |
0337593 |
COLLAR, Cam, tilt limit switch |
| 13 |
0335470 |
ARM, Trail lock |
| 14 |
0336210 |
RESSORT, verrouillage pour transport sur remorque vers support |
| 15 |
0335701 |
BUSHING, Trail arm |
| 16 |
0335487 |
SCREW, Thrust roller, swivel bracket |
| 18 |
0336172 |
DISPOSITIF DE RETENUE, bras transport sur remorque |
| 19 |
0336853 |
ATTACHE, vis, dispositif de retenue |
| 20 |
0336467 |
RETAINER, Support |
| 21 |
0335814 |
DISPOSITIF DE RETENUE, ressort de verrouillage pour transport sur remorque |
| 23 |
0335487 |
SCREW, Thrust roller, swivel bracket |
| 24 |
0335949 |
ROULEAU DE BUTÉE |
| 25 |
0335481 |
SCREW, Tilt lever to bracket |
| 26 |
0335486 |
BAGUE, levier de relevage |
| 27 |
0335485 |
LEVER, Tilt lock |
| 28 |
0336209 |
BALL, Detent, tilt lock |
| 29 |
0334241 |
GUIDE |
| 30 |
0336230 |
RESSORT, dispositif de blocage, verrouillage de relevage |
| 31 |
0336171 |
BRACKET, Tilt limit switch |
| 33 |
0586786 |
SWITCH Assembly, Tilt limit |
| 37 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 38 |
5009550 |
Strg Arm&Shaft 20" This part replaces 5001766. |
| 38 |
5009551 |
Strg Arm&Shft 25" This part replaces 5001825. |
| 38 |
5009614 |
Strg Arm&Shft 20" This part replaces 5001908. |
| 40 |
0587146 |
SENDING UNIT Assembly This part replaces 0586784. |
| 51 |
0512258 |
GAINE, tressée - 3/16 x 32" |
| 51 |
0513817 |
BRAIDED SLEEVE |
| 52 |
0351921 |
STERN BRACKET, Port |
| 53 |
0435007 |
TILT TUBE Assembly |
| 55 |
0336529 |
ANNEAU DE RETENUE, tige de correction d'assiette |
| 56 |
5009389 |
Kit This part replaces 0336525. |
| 57 |
0337580 |
SCREW, Cover |
| 58 |
0335475 |
CACHE, support arrière, bâbord |
| 59 |
0335474 |
CACHE, support arrière, tribord |
| 60 |
0584136 |
FIL, masse |
| 63 |
0351922 |
STERN BRACKET, Starboard |
| 64 |
0335554 |
CROU, tube de relevage |
| 65 |
0317894 |
CACHE, tube de relevage |
| 66 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 67 |
0338744 |
MOUNT BRACKET |
| 67 |
0340006 |
BRACKET, Mount |
| 68 |
0334936 |
SCREW, Mount |
| 69 |
0320746 |
CROU, support de montage |
| 70 |
0912233 |
DISPOSITIF DE RETENUE, joint arbre d'articulation |
| 71 |
0911312 |
JOINT, arbre d'articulation |
| 72 |
5010190 |
ANODE KIT This part replaces 5007089. |
| 73 |
0324816 |
SCREW, Anode |
| 74 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 0327053. |
| 74 |
0331578 |
Engine mount bolt 5 x 1/2 in. |
| 74 |
0354102 |
SCREW, Bracket mount, 1/2 x 7 in. |
| 74 |
0354103 |
SCREW, Bracket mount, 1/2 x 8 in. |
| 74 |
0354104 |
SCREW, Bracket mount, 1/2 x 9 in. |
| 74 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0354101. |
| 74 |
0363012 |
SCREW, Bracket mounting This part replaces 0336676. |
| 75 |
0307238 |
RONDELLE |
| 76 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 77 |
0320248 |
RONDELLE, écrou |
| 78 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 79 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 80 |
0318273 |
Bolt hex retainer 1/2 in. |

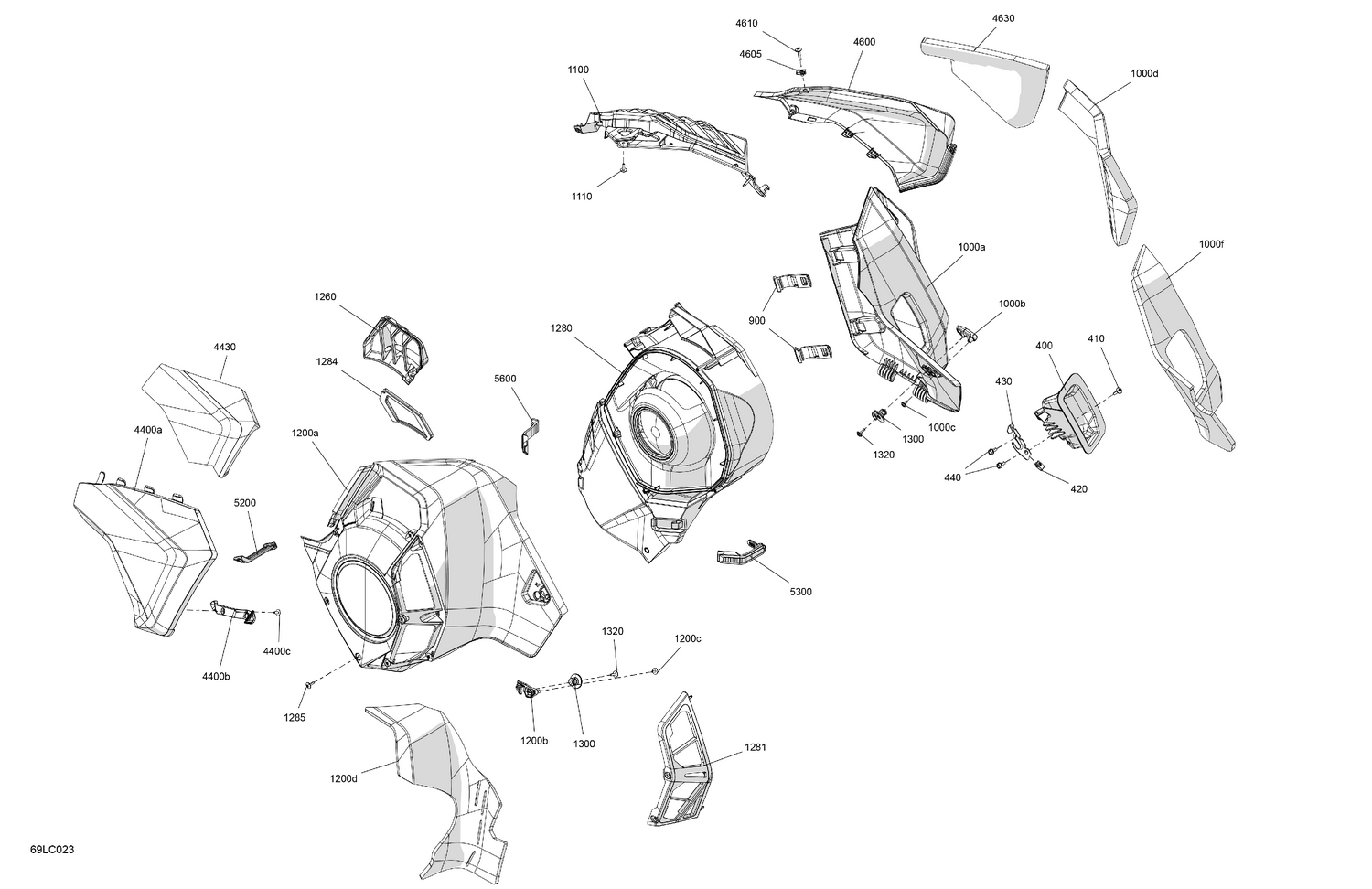

| 400 |
517306759 |
RH Console |
| 410 |
250000586 |
Torx Truss M5 X 20 |
| 420 |
250000958 |
Panel Nut M5 X 0.8 |
| 430 |
517306315 |
Rope Guide |
| 440 |
210261250 |
Hex. Flanged Screw M6 X 12 |
| 900 |
517308267 |
Front Soft Latch |
| 1000a |
517307876 |
Deep Black, RH Rear Panel |
| 1000b |
517306320 |
RH Rear Latch |
| 1000c |
250000805 |
Plastite Screw M4 X 10 |
| 1000d |
517308936 |
Acoustic Insulation |
| 1000f |
517308937 |
Acoustic Insulation |
| 1100 |
517307877 |
RH Grill |
| 1110 |
250000725 |
Screw M4 X 16 |
| 1200a |
517307878 |
Deep Black, LH Panel |
| 1200b |
517306325 |
LH Rear Latch |
| 1200c |
250000805 |
Plastite Screw M4 X 10 |
| 1200d |
517308935 |
Acoustic Insulation |
| 1260 |
517308537 |
LH Out Grill |
| 1280 |
517309062 |
CVT Cover Ass'y This part replaces 517309035. |
| 1281 |
517308166 |
Air Filter |
| 1284 |
517308716 |
Filter Grill |
| 1285 |
250000889 |
Screw M4 X 16 |
| 1300 |
517305985 |
Rear Stud |
| 1320 |
250000725 |
Screw M4 X 16 |
| 4400a |
517309745 |
Viper Red, LH Front Panel This part replaces 517308264. |
| 4400b |
517308530 |
LH Central Latch |
| 4400c |
250000805 |
Plastite Screw M4 X 10 |
| 4430 |
517308938 |
Acoustic Insulation |
| 4600 |
517308265 |
Viper Red, RH Front Panel |
| 4605 |
250000958 |
Panel Nut M5 X 0.8 |
| 4610 |
250000587 |
Torx Screw M5 X 26 |
| 4630 |
517309005 |
Acoustic Insulation |
| 5200 |
517308516 |
LH Upper Latch Soft |
| 5300 |
517308463 |
Rear Latch Soft |
