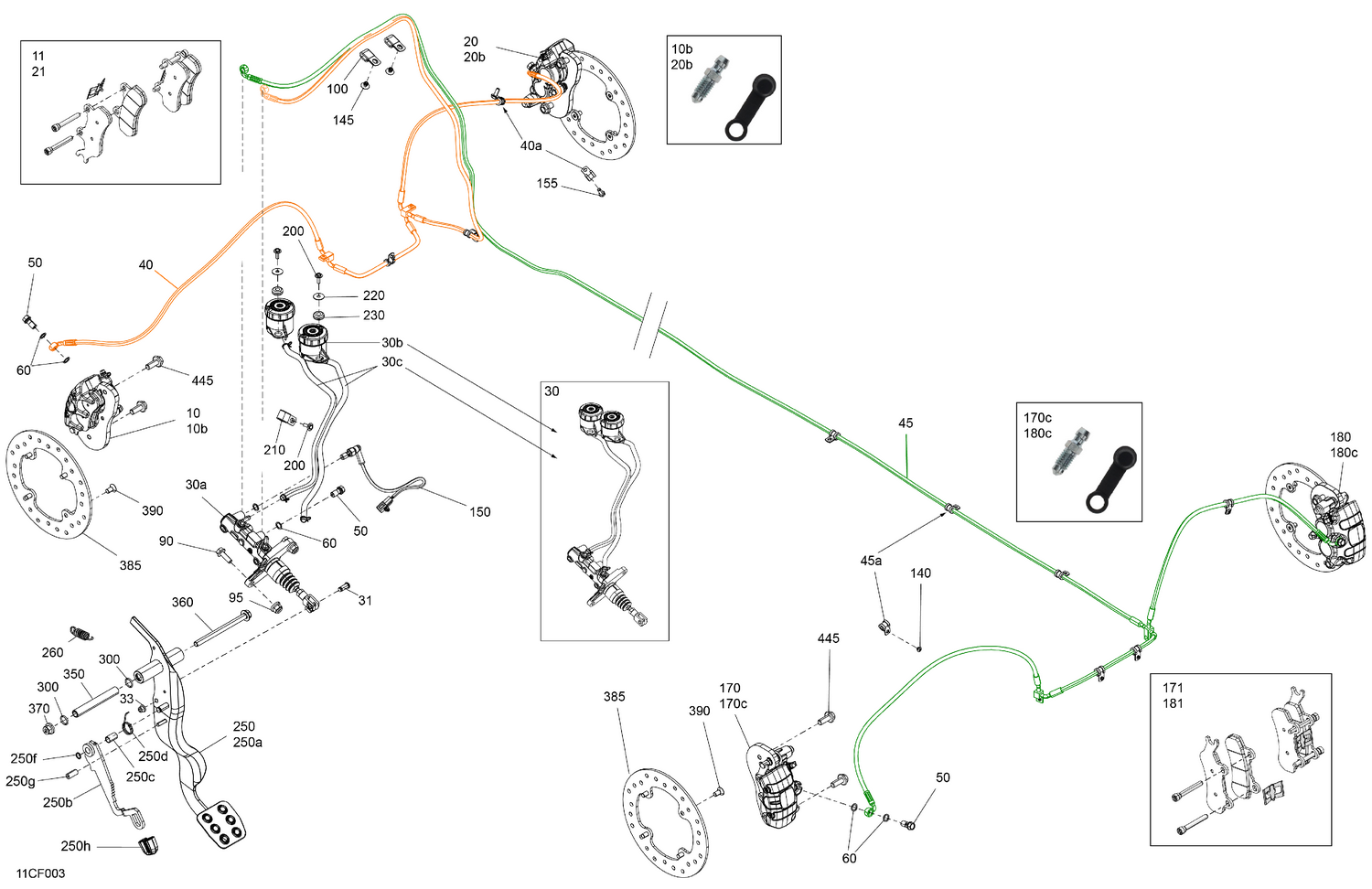

03- Mechanic - Brake System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 20b | 705601017 | Bleeding Screw |
| 21 | 703501198 | LH/RH Front Brake Pad Set |
| 30a | 705602306 | Master Cylinder |
| 30b | 705601020 | Oil Tank |
| 30c | 705601866 | Oil Hose Housing |
| 31 | 250000669 | Socket Head Screw M8 X 16 |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 40a | 293650256 | Clamp |
| 45a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 90 | 207682544 | Hex. Flange Screw M8 X 25 |
| 95 | 233281416 | Hex. Elastic Flange Nut M8 |
| 100 | 515175507 | Open Clamp |
| 140 | 293150293 | Pop Rivet 3/16 X ,425 |
| 145 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 150 | 705601250 | Brake Switch |
| 155 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 170c | 705601017 | Bleeding Screw |
| 171 | 703501199 | LH/RH Rear Brake Pad Set |
| 180c | 705601017 | Bleeding Screw |
| 181 | 703501199 | LH/RH Rear Brake Pad Set |
| 200 | 250000959 | Screw PT Type K-50 X 16 |
| 210 | 515175507 | Open Clamp |
| 220 | 250200040 | Flat Washer |
| 230 | 414036300 | Grommet |
| 250a | 705601777 | Brake Pedal |
| 250b | 705601725 | Lever |
| 250c | 705601722 | Bushing |
| 250d | 705602266 | Return Spring |
| 250f | 705601770 | Circlip |
| 250g | 219704549 | Hose |
| 250h | 708002655 | Adjustment Handle |
| 260 | 705600792 | Brake Pedal Spring |
| 300 | 293300144 | O-Ring |
| 350 | 705601373 | Inside Sleeve |
| 360 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 385 | 705601511 | Brake Disc |
| 390 | 250000143 | Torx Screw M8 X 25, Scotch Grip |
