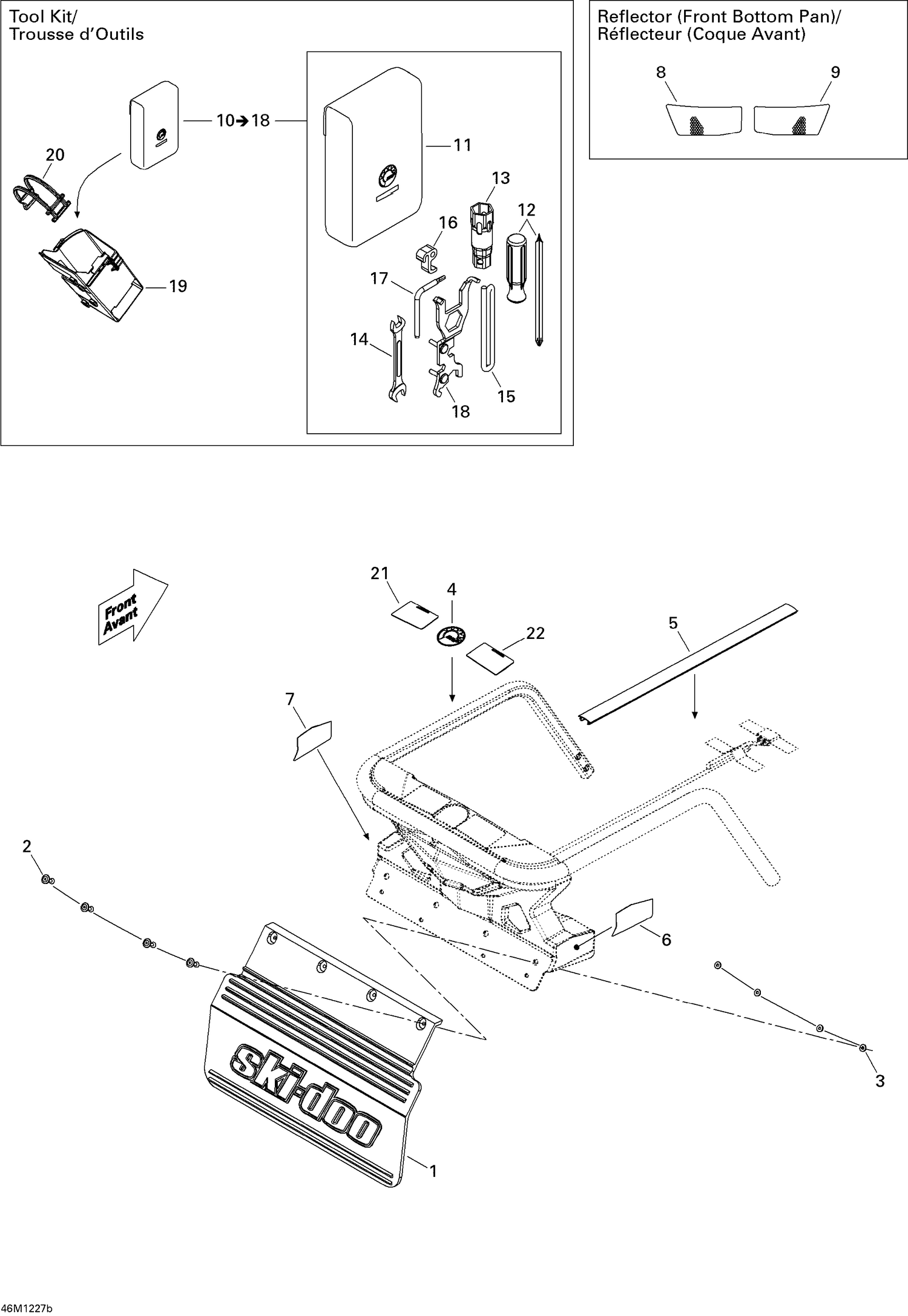

09- Utilities Sport
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000949 | Snow Guard |
| 2 | 293150100 | Pop Rivet 3/16" |
| 3 | 517124300 | Washer |
| 4 | 219903305 | BRP Logo 48 mm |
| 5 | 520000829 | Radiator Trim |
| 8 | 520000891 | Yellow, RH Front Reflector |
| 9 | 520000892 | Yellow, LH Front Reflector |
| 11 | Not | Available As Spare Part - Tool Bag |
| 12 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 13 | Not | Available As Spare Part - Socket Wrench, 16/21 mm |
| 14 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 15 | 219704403 | Was 412500100 Rope-Starter |
| 16 | 529000060 | Starter Grip |
| 17 | 520001142 | Spacing Tool |
| 18 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 19 | 520000894 | Tool Kit Rack |
| 20 | 520000528 | Latch |
| 21 | 516005043 | LH WARNING DECAL, SECURITY - Call your local BRP dealership |
