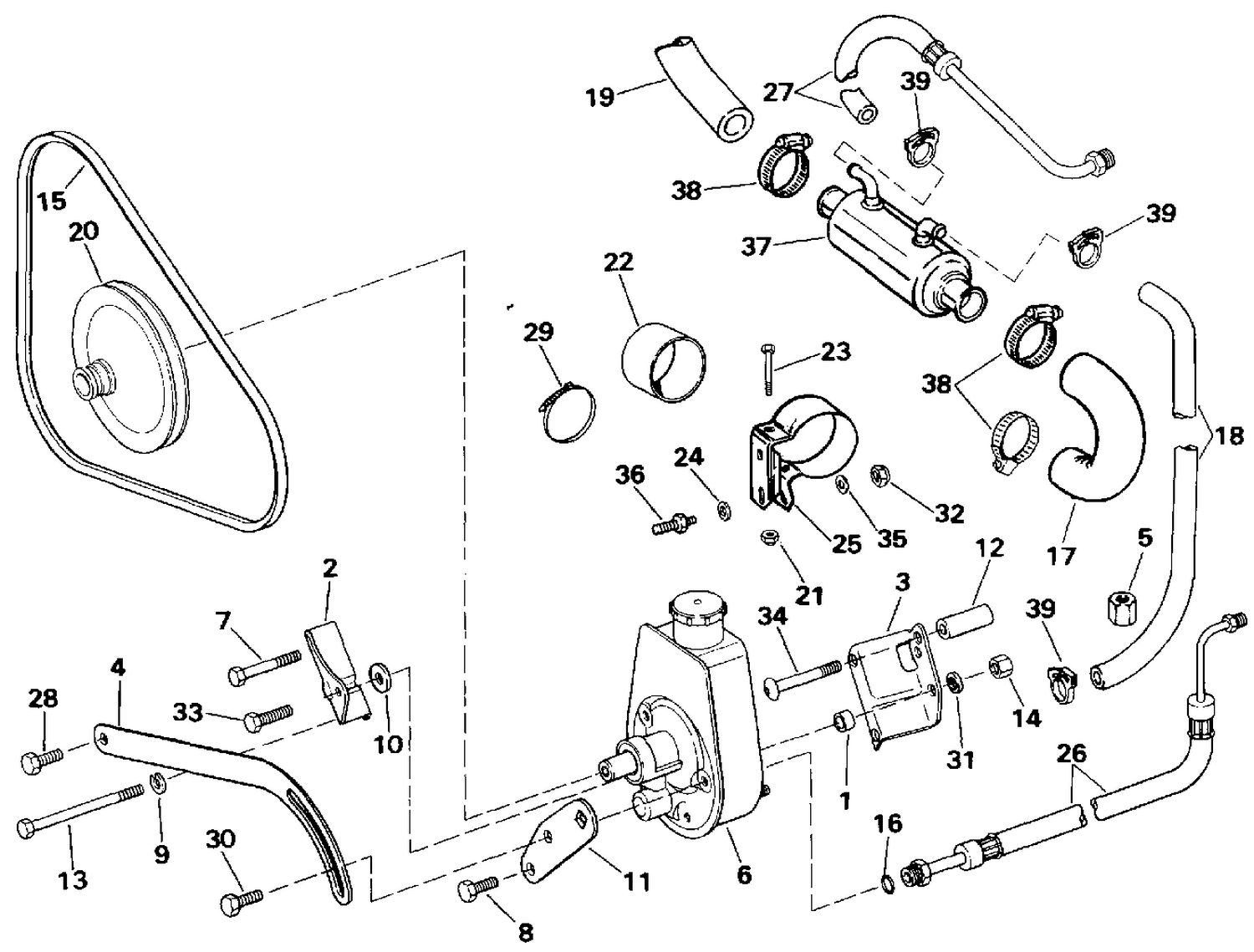

| Ref | Part Number | Description |
|---|
| 1 |
3852495 |
SPACER, Oil tube clamp |
| 2 |
3853330 |
BRACKET, Steering pump, front |
| 3 |
3852704 |
BRACKET, Steering pump, rear |
| 4 |
3853660 |
BRACE, Steering pump to engine |
| 5 |
3853315 |
FITTING, Steering hose plug |
| 6 |
3850491 |
Pump Ay This part replaces 3850492. |
| 7 |
3853394 |
SCREW, Bracket to engine, upper |
| 8 |
3853405 |
SCREW, Adjustment bracket |
| 10 |
0312972 |
WASHER, Alternator brkt This part replaces 3852116. |
| 11 |
3853327 |
BRACE, Belt adjustment |
| 12 |
3852699 |
TUBE, Support |
| 13 |
0553122 |
SCREW This part replaces 3852256. |
| 14 |
3852498 |
NUT, Pump to bracket, rear |
| 15 |
3853331 |
BELT, Power steering pump |
| 16 |
3852497 |
O-RING, Pressure hose |
| 17 |
3852285 |
HOSE, Gimbal to oil cooler |
| 18 |
3853632 |
HOSE, Cooler to pump, return |
| 19 |
3850907 |
HOSE, Cooler to cooler |
| 20 |
3853804 |
PULLEY, Steering pump |
| 21 |
3852079 |
BRACKET, Oil cooler |
| 22 |
3853236 |
SLEEVE, Ignition coil |
| 24 |
3852709 |
CLAMP, Hoses to valve cover |
| 25 |
3852218 |
BRACKET, Oil cooler |
| 26 |
3854204 |
HOSE, Pump to cyl., pressure |
| 27 |
3854168 |
HOSE, Cyl. to oil cooler, return |
| 28 |
3853557 |
SCREW, Brace to alterntr bracket |
| 29 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 30 |
3853406 |
SCREW, Brace to pump |
| 33 |
3853405 |
SCREW, Adjustment bracket |
| 34 |
3852700 |
SCREW, Support tube |
| 36 |
3852093 |
STUD, Lift bracket |
| 37 |
3851921 |
OIL COOLER This part replaces 3852840. |
| 38 |
3853780 |
CLAMP, Hose |
