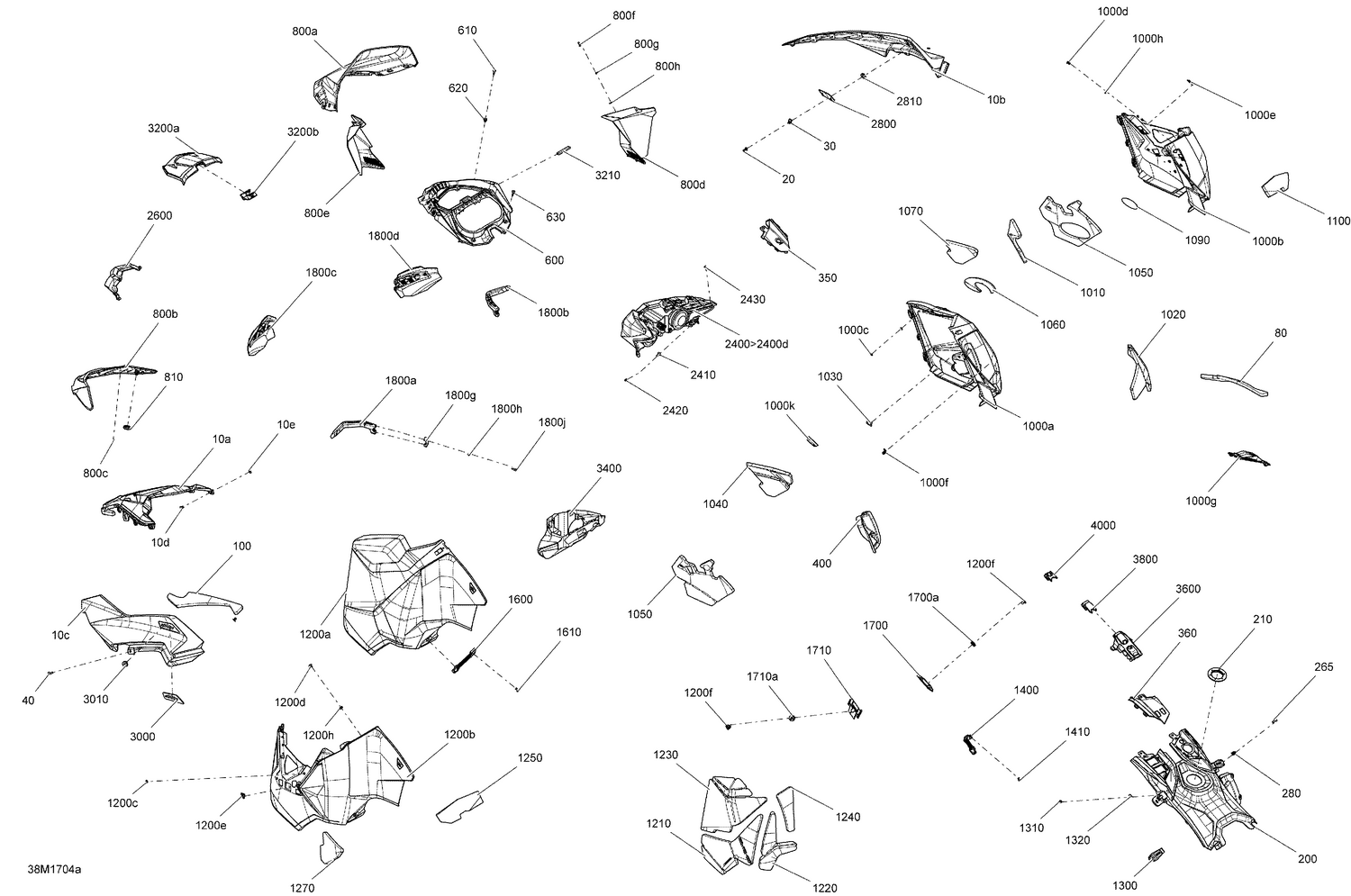

| Ref | Part Number | Description |
|---|
| 10a |
517304796 |
Deep Black, Center Hood |
| 10b |
517305239 |
Deep Black, RH Hood |
| 10b |
517305284 |
Bright White, RH Hood |
| 10b |
517305937 |
LICHEN HOOD RH - Call your local BRP dealership |
| 10c |
517305240 |
Deep Black, LH Hood |
| 10c |
517305285 |
Bright White, LH Hood |
| 10c |
517305938 |
LICHEN HOOD LH - Call your local BRP dealership |
| 10d |
293150104 |
Pop Rivet 3/16" |
| 10e |
517124300 |
Washer |
| 20 |
250000528 |
Torx Screw M5 X 20 |
| 30 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 40 |
250000587 |
Torx Screw M5 X 26 |
| 80 |
517305090 |
RH Rear Hood Foam |
| 100 |
517305091 |
LH Rear Hood Foam |
| 200 |
517305557 |
White, Rear Console |
| 200 |
517305641 |
Deep Black, Rear Console |
| 210 |
517304518 |
Console Nut |
| 265 |
250000705 |
Torx Truss Screw M6 X 20 |
| 280 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 400 |
517305061 |
Deep Black RH Console |
| 600 |
517305511 |
Deep Black, Indicator Support |
| 610 |
250000528 |
Torx Screw M5 X 20 |
| 620 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 630 |
250000587 |
Torx Screw M5 X 26 |
| 800a |
517304927 |
Windshield 345mm |
| 800b |
860200944 |
Windshield Support Long, Yellow 2000 |
| 800c |
732610072 |
Push Nut |
| 800d |
517304928 |
RH Air Deflector, Black 63% Transm. |
| 800e |
517304929 |
LH Air Deflector, Black 63% Transm. |
| 800f |
250000720 |
Torx Screw K50 X 16 |
| 800g |
250200025 |
Washer M5 |
| 800h |
250200024 |
Rubber Washer 5 mm |
| 810 |
517303756 |
Grommet |
| 1000c |
250100158 |
Push Nut |
| 1000d |
293150104 |
Pop Rivet 3/16" |
| 1000e |
517305109 |
Rivet Plate |
| 1000f |
517305734 |
Pin |
| 1000h |
517124300 |
Washer |
| 1030 |
517305451 |
Heat Shield |
| 1200c |
250100158 |
Push Nut |
| 1200d |
293150104 |
Pop Rivet 3/16" |
| 1200e |
517305109 |
Rivet Plate |
| 1200f |
517305734 |
Pin |
| 1200h |
517124300 |
Washer |
| 1300 |
517305279 |
Panel Latch |
| 1310 |
250000565 |
Hexalob Screw M4 X 10 |
| 1320 |
250100156 |
Weld Nut M4 |
| 1400 |
517304919 |
RH Panel Latch |
| 1410 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1600 |
517303808 |
LH Panel Latch |
| 1610 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1700a |
517305723 |
Ring |
| 1710a |
517305723 |
Ring |
| 1800a |
517305290 |
Deep Black, LH Arm |
| 1800b |
517305293 |
Deep Black, RH Arm |
| 1800c |
517305291 |
LH Deflector, Smoked 60% |
| 1800d |
517305294 |
RH Deflector, Smoked 60% |
| 1800g |
517305296 |
Clamp |
| 1800h |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1800j |
250000724 |
Torx Screw M5 X 20 |
| 2400a |
219400070 |
Cap |
| 2400b |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 2400c |
219800282 |
Holder Bracket |
| 2400d |
219800281 |
Spring |
| 2410 |
250000528 |
Torx Screw M5 X 20 |
| 2420 |
250100035 |
Jack Nut M5 |
| 2430 |
250000725 |
Screw M4 X 16 |
| 2600 |
517305010 |
Headlight Trim Cap |
| 2800 |
517304923 |
RH Air Deflec.Console, Black 63% Transm. |
| 2810 |
517307161 |
Grommet This part replaces 517302841. |
| 3000 |
517304924 |
LH Air Deflec.Console, Black 63% Transm. |
| 3010 |
517307161 |
Grommet This part replaces 517302841. |
| 3200a |
517304912 |
Deep Black, Upper Storage Access Cover |
| 3200b |
517304917 |
Cover Latch |
| 3210 |
517305157 |
Seal Joint |
| 3400 |
517305095 |
Deep Black, Trunk |
| 3600 |
517304970 |
Deep Black, Console Support |
| 3800 |
517305180 |
Deep Black, Support Console Cap |
