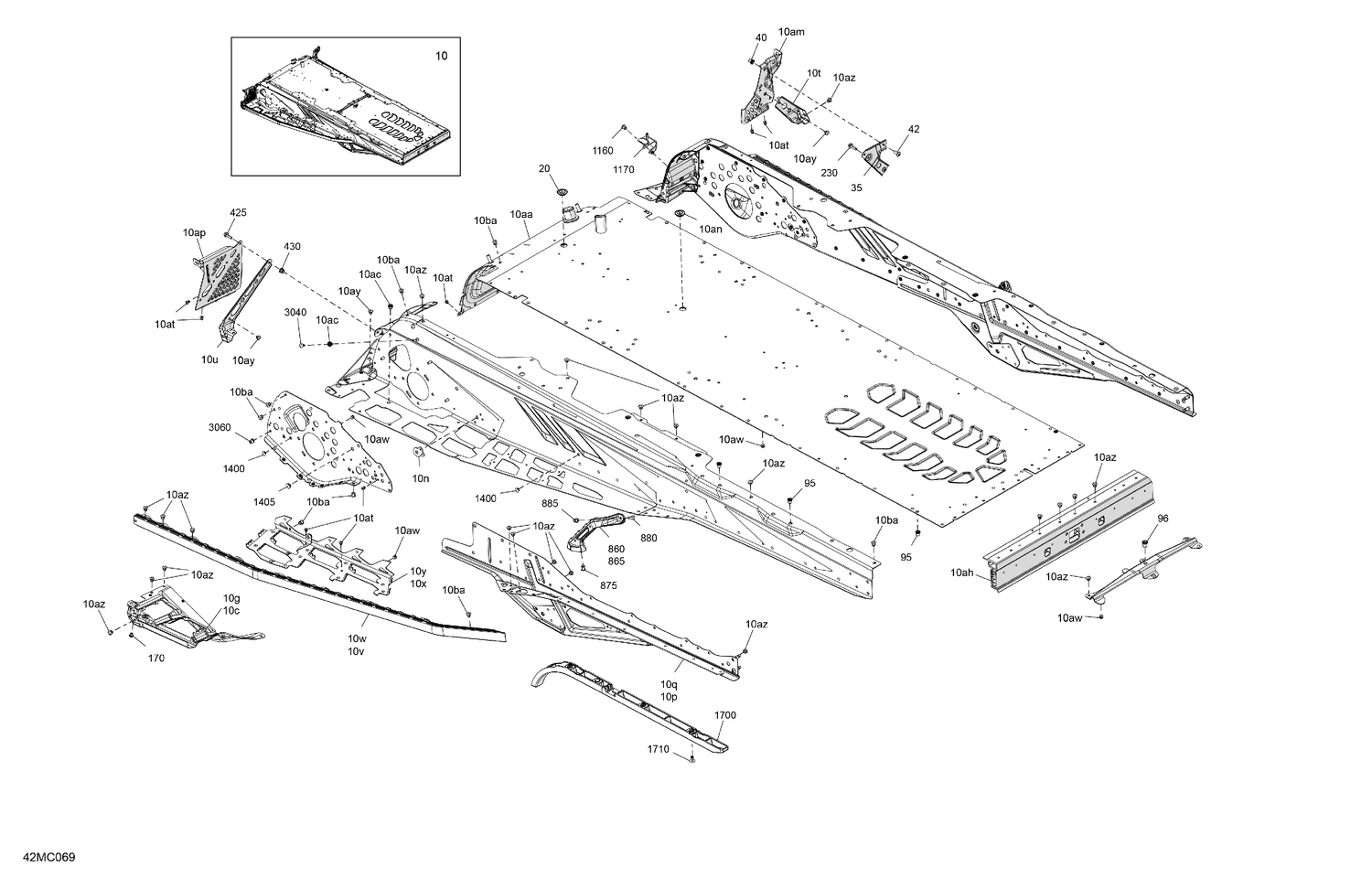

| Ref | Part Number | Description |
|---|
| 10aa |
518335121 |
Radiator Tunnel 154 This part replaces 518332621. |
| 10ac |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 10ah |
518332481 |
Rear Cap |
| 10am |
518331822 |
RH Footrest |
| 10an |
293730052 |
Black, Plug |
| 10ap |
518332977 |
LH Footrest |
| 10at |
293150203 |
Rivet Avibulb 3/16 |
| 10aw |
293150245 |
Henrob Rivet |
| 10ay |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10az |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10ba |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 10c |
518332803 |
Deep Black, RH Footrest Reinforcement |
| 10g |
518332802 |
Deep Black, LH Footrest Reinforcement |
| 10n |
518335959 |
Front Suspension Arm Reinforcement This part replaces 518329659. |
| 10p |
518333792 |
RH Rear Suspension Support |
| 10q |
518333791 |
LH Rear Suspension Support |
| 10t |
518329789 |
RH Footrest Reinforcement |
| 10u |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10v |
518329648 |
RH Roller |
| 10w |
518328452 |
LH Roller |
| 10x |
518329646 |
RH Tunnel Liner |
| 10y |
518329647 |
LH Tunnel Liner |
| 20 |
293730052 |
Black, Plug |
| 35 |
518331727 |
RH Stirrup Reinforcement |
| 40 |
293450275 |
Insert |
| 42 |
250000717 |
Torx Head Screw M6 X 16 |
| 95 |
293450275 |
Insert |
| 96 |
293450275 |
Insert |
| 170 |
293450267 |
Insert M5 - 0.8 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 860 |
518330858 |
Deep Black LH Rear Footrest Reinforcement |
| 865 |
518335169 |
Deep Black, RH Rear Footrest Reinforcement This part replaces 518330861. |
| 875 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 880 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 885 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 1160 |
293150266 |
Ornit Rivet 6,5 X 14.5 |
| 1170 |
518334031 |
Muffler Support Ass'y |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3040 |
293730079 |
Dart |
