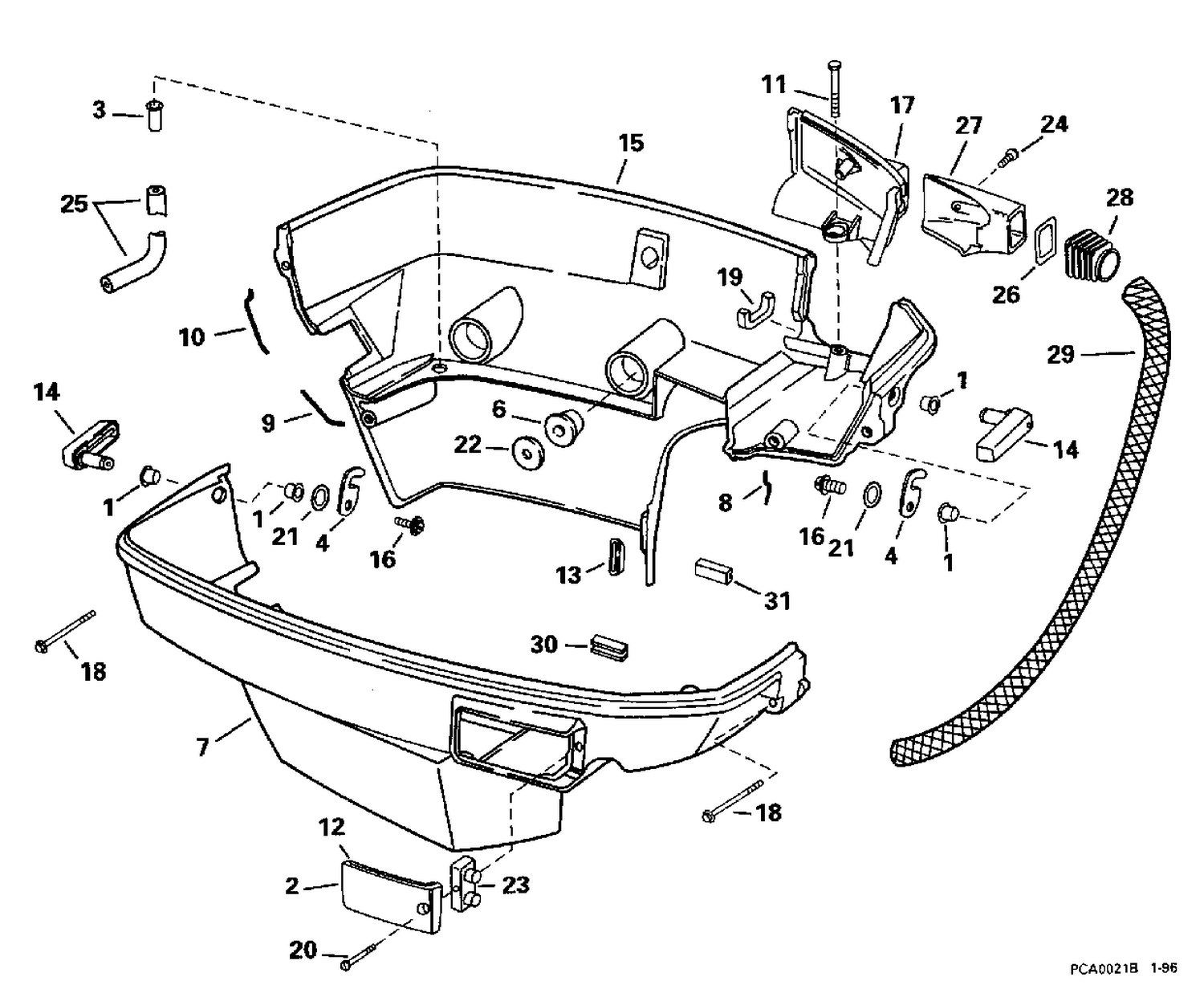

| Ref | Part Number | Description |
|---|
| 2 |
0335632 |
COVER, Anchor block |
| 4 |
0335570 |
HOOK, Front & rear |
| 6 |
0349557 |
MOUNT This part replaces 0328584. |
| 7 |
0434646 |
ENGINE COVER, Starboard |
| 8 |
SEAL, |
Engine cover, front |
| 9 |
SEAL, |
Engine cover, rear, lower |
| 10 |
SEAL, |
Engine cover, rear, upper |
| 12 |
0307103 |
SEAL |
| 14 |
0433514 |
HANDLE ASSY. |
| 15 |
0434645 |
ENGINE COVER, Port |
| 17 |
0435273 |
RETAINER, Fuel & electric |
| 18 |
0335221 |
SCREW, Throttle body to reed plate |
| 19 |
0335345 |
SEAL, Electric wires |
| 20 |
0335846 |
SCREW, Cover, anchor block |
| 22 |
0349556 |
Washer This part replaces 0329749. |
| 23 |
0335631 |
GROMMET, Control cables |
| 25 |
0336225 |
FLEXIBLE, connecteur vers filtre |
| 26 |
0336634 |
RETAINER, Grommet |
| 27 |
0336383 |
COVER, Fuel & elect. |
| 28 |
0336384 |
COVER, Fuel & elect. |
| 29 |
0336545 |
SLEEVE, Braided |
