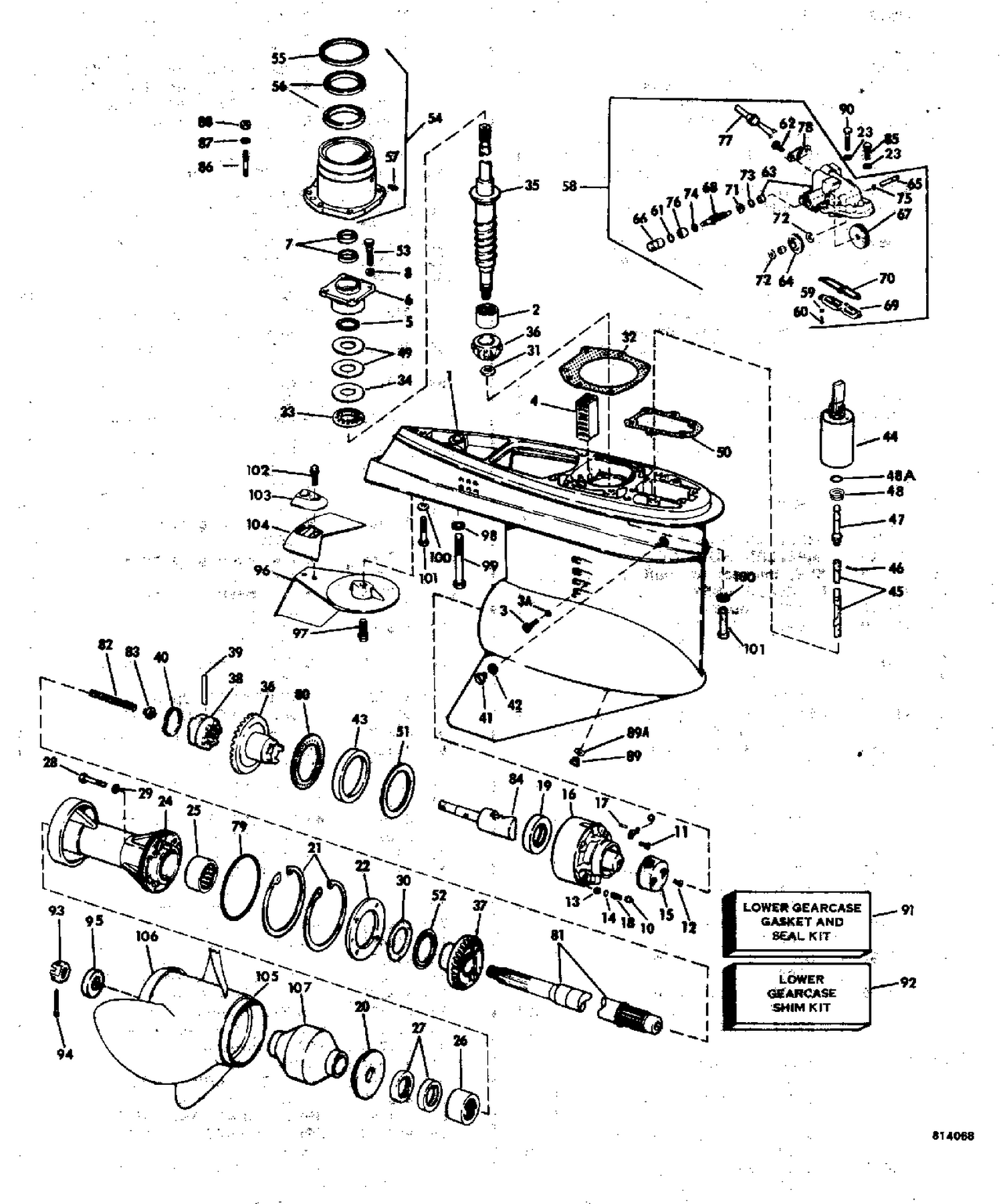

| Ref | Part Number | Description |
|---|
| 1 |
0390528 |
GEARCASE & BRG ASSY |
| 6 |
0982422 |
BEARING HOUSING & SEAL |
| 20 |
0333592 |
THRUST BUSHING This part replaces 0321173. |
| 21 |
0321171 |
RETAINING RING |
| 22 |
0321174 |
PLUG, Large |
| 24 |
0387374 |
BEARING HOUISNG & SEAL ASSY |
| 28 |
0316563 |
SCREW |
| 29 |
0317178 |
O RING |
| 32 |
0910236 |
GASKET |
| 35 |
0982424 |
DRIVESHAFT ASSY |
| 36 |
5004941 |
Gearset This part replaces 0982406. |
| 37 |
0325445 |
GEAR, Revers |
| 38 |
0910198 |
SHIFTER, Clutch dog |
| 40 |
3243639 |
SPRING, Clutch dog pin |
| 43 |
0323516 |
THRUST WASHER, Forward gear |
| 44 |
0981859 |
SHIFT ASSY, Gearcase |
| 45 |
0982102 |
PUSH ROD ASSY |
| 46 |
0320176 |
PIN, Push rod |
| 49 |
0314742 |
SHIM BEARING HOUSING |
| 51 |
0323517 |
SHIM, .002 |
| 51 |
0323518 |
SHIM, .003 |
| 51 |
0323519 |
SHIM, .004 |
| 54 |
0982439 |
SWIVEL BEARING RETAINER & BUSHING |
| 58 |
0982154 |
SHIFT ASSEMBLY |
| 77 |
0982951 |
CABLE ASSY |
| 79 |
0305123 |
O RING This part replaces 0321119. |
| 81 |
0982416 |
PROP SFT SPR & GUIDE ASSY |
| 82 |
0910191 |
SPRING, Shf rod to prop shaft |
| 83 |
0910203 |
GUIDE, Spring shift rod |
| 84 |
0982415 |
SHIFT ROD & BEARING ASSY |
| 85 |
0329894 |
SCREW This part replaces 0302510. |
| 86 |
0910551 |
STUD |
| 87 |
0329241 |
RONDELLE This part replaces 0305981. |
| 91 |
0982946 |
LOWER GEARCASE GASKET & SEAL KIT |
| 92 |
0982191 |
LOWER GEARCASE SHIM KIT |
| 94 |
0309955 |
COT PIN,Prop nut |
| 96 |
0909779 |
TRIM TAB, Gearcase |
| 97 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 98 |
0306314 |
L'WASHER,Scr,long |
| 99 |
0313697 |
SCR,Grc to hsg.long |
| 100 |
0307708 |
RONDELLE GROWER |
| 101 |
0552898 |
SCR,Grc to hsg,short |
| 102 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 103 |
0909548 |
CLAMP, Ext rudder |
| 104 |
0909549 |
EXTENION,Rudder |
| 105 |
0387995 |
PROP, 14-1/2 x 24 sstr |
| 105 |
0387996 |
PROP, 14-1/2 x 26 sstr |
| 105 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 105 |
0389923 |
PROP, 14-1/2 x 21 SST |
| 105 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 105 |
0389925 |
PROP, 15 x 16 SST |
| 105 |
0390725 |
PROP, 14 x 25 SST |
| 105 |
0390831 |
PROP, 14-1/2 x 14 SST |
| 105 |
0391202 |
PROP, 14-1/2 x 21 |
| 105 |
0391203 |
BEARING ASSY,Rear,std |
| 105 |
0391290 |
PROP, 15 x 17 SST |
| 105 |
0391535 |
PROP, 15-1/2 x 15 |
| 105 |
0391536 |
PROP, 15-1/2 x 13 |
| 105 |
0765187 |
PROPELLER, WDEX Models This part replaces 0391200. |
| 105 |
3191201 |
PROP, 14-1/2 x 19 |
| 0307853 |
0307853 |
O RING |
| 0981610 |
0981610 |
OIL PUMP HOUSING & COVER |
| 0982481 |
0982481 |
GEARCASE ASSY, Complete |
