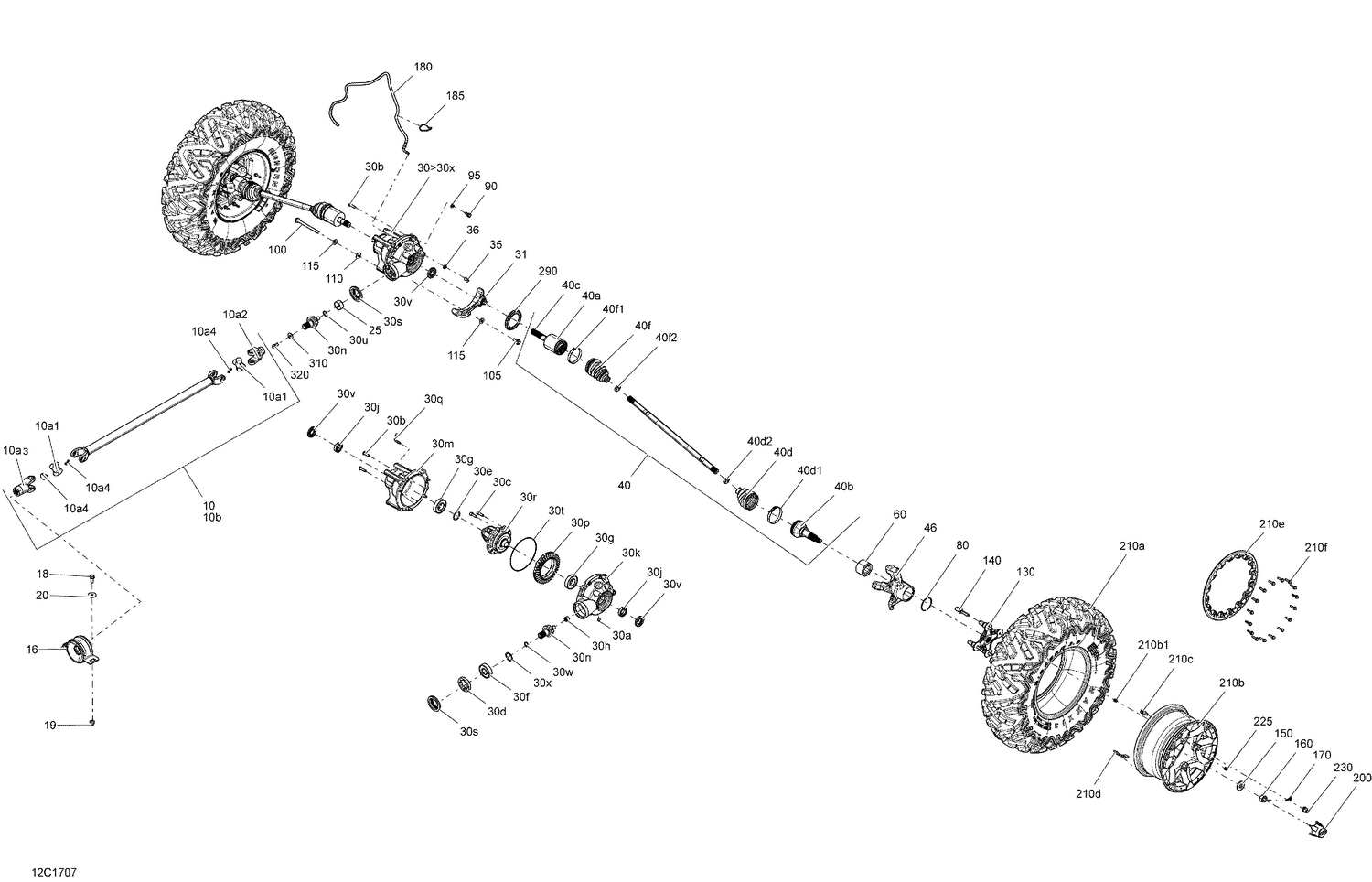

07- Drive System, Front - All Models
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 715900435 | U-Joint Cross Kit |
| 10a2 | 715900116 | Fixed Yoke Joint |
| 10a3 | 715900231 | Yoke Joint |
| 10a4 | 703500815 | Grease Fitting |
| 10a4 | 715900483 | Cover |
| 10b | 705400036 | Wear Ring |
| 25 | 705400036 | Wear Ring |
| 30a | 705501885 | Drain Plug |
| 30b | 705401601 | Screw |
| 30c | 705401602 | Screw |
| 30d | 705401603 | Nut |
| 30e | 705401604 | Shim |
| 30f | 705401605 | Ball Bearing |
| 30g | 705401606 | Ball Bearing |
| 30h | 705402848 | Ball Bearing This part replaces 705401607. |
| 30j | 705401608 | Ball Bearing |
| 30k | 705401792 | Front Pinion Cover |
| 30m | 705401610 | Front Cover |
| 30n | 705402841 | Pinion 10 Teeth This part replaces 705401791. |
| 30p | 705401612 | Gear 36 Teeth |
| 30q | 705401613 | Vent Valve |
| 30s | 705401615 | Oil Seal |
| 30t | 705401616 | Seal |
| 30u | 705401617 | O'Ring |
| 30v | 705401618 | Gasket |
| 30w | 705401769 | Shim |
| 30x | 705401770 | Shim |
| 31 | 705401600 | SUPPORT - Call your local BRP dealership |
| 35 | 705500504 | Fill Level Plug |
| 36 | 705500506 | Copper Washer |
| 40c | 705401349 | Circlip Joint |
| 45 | 705401548 | LH Front Knuckle |
| 46 | 705401549 | RH Front Knuckle |
| 60 | 293350150 | Ball Bearing This part replaces 293350118. |
| 80 | 293370019 | Circlip |
| 90 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 95 | 234281474 | Conical Spring Washer M8 |
| 100 | 230602546 | Hex. Flange Screw M10 X 125 |
| 105 | 207602546 | Hex. Flange Screw M10 X 25 |
| 110 | 250200014 | Flat Washer M10 |
| 115 | 234201474 | Conical Spring Washer 10 mm |
| 130 | 705501900 | Wheel Hub |
| 140 | 250300060 | Wheel Stud |
| 150 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 170 | 250400071 | Cotter Pin |
| 180 | 414834000 | Formed Hose |
| 185 | 414115200 | Tie-Rap 180 mm |
| 210b1 | 293450317 | Insert |
| 210c | 705400193 | Rim Valve With Cap |
| 225 | 293000110 | Valve Cap |
| 230 | 250100184 | Black, Wheel Nut M10 X 1.25 |
| 310 | 250200014 | Flat Washer M10 |
| 320 | 250001046 | Hex Flange Screw M10 X 20 S.Grip This part replaces 250000847. |
