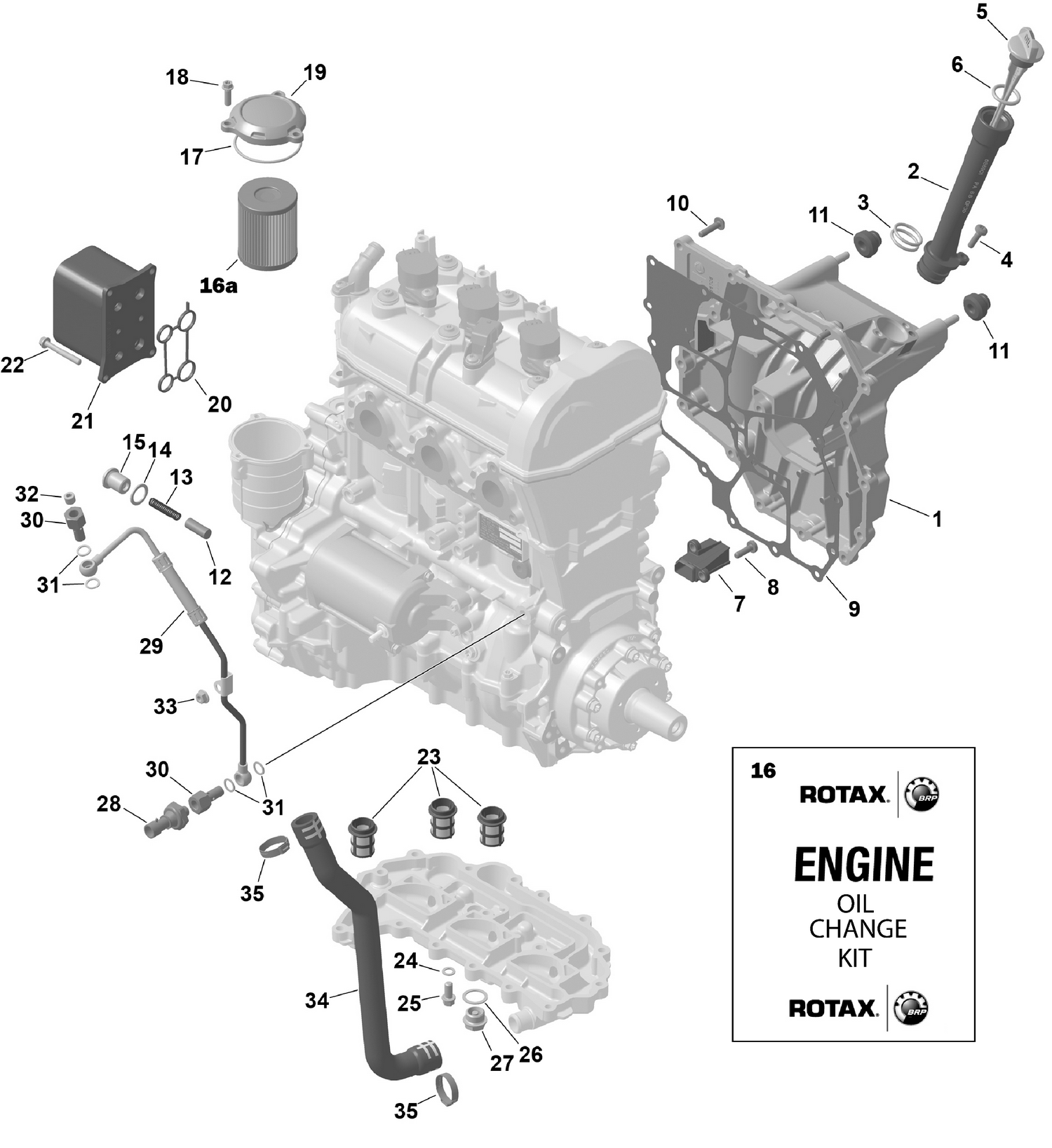

01- ROTAX - Engine Lubrication
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420656708 | Oil Sump Cover |
| 2 | 420656901 | Oil Filler Tube |
| 4 | 420441383 | Torx Flange Screw M6 X 20 |
| 5 | 420856668 | Oil Dipstick |
| 7 | 420456260 | Oil Suction Pipe |
| 8 | 420441383 | Torx Flange Screw M6 X 20 |
| 10 | 420841548 | Torx Flange Screw M6 X 25 |
| 11 | 420860150 | Rubber Grommet |
| 12 | 420256591 | Pressure Regulating Piston |
| 13 | 420239445 | Spring |
| 15 | 420441373 | Plug Screw |
| 16 | 9779489 | Can-Am Oil Change Kit 5W40 900C |
| 16a | 420956123 | Oil Filter |
| 18 | 420440207 | Torx Flange Screw M6 X 20 |
| 19 | 420612135 | Oil Filter cover This part replaces 420612137. |
| 21 | 420656689 | Oil Water Heat Exchanger |
| 22 | 420440324 | Torx Flange Screw M6 X 45 |
| 23 | 420656680 | Oil Sieve |
| 25 | 420440852 | Torx Flange Screw M8 X 16 |
| 27 | 420840278 | Drain Plug M18 X 1.5 This part replaces 420840277. |
| 28 | 420256915 | Oil Pressure Switch |
| 29 | 420456451 | Pressure Oil Line |
| 30 | 420947580 | Spacer |
| 32 | 420641323 | Plug Screw M10 X 1 |
| 33 | 420842890 | Hex Nut M6-10 |
| 34 | 420201743 | Molded Hose |
