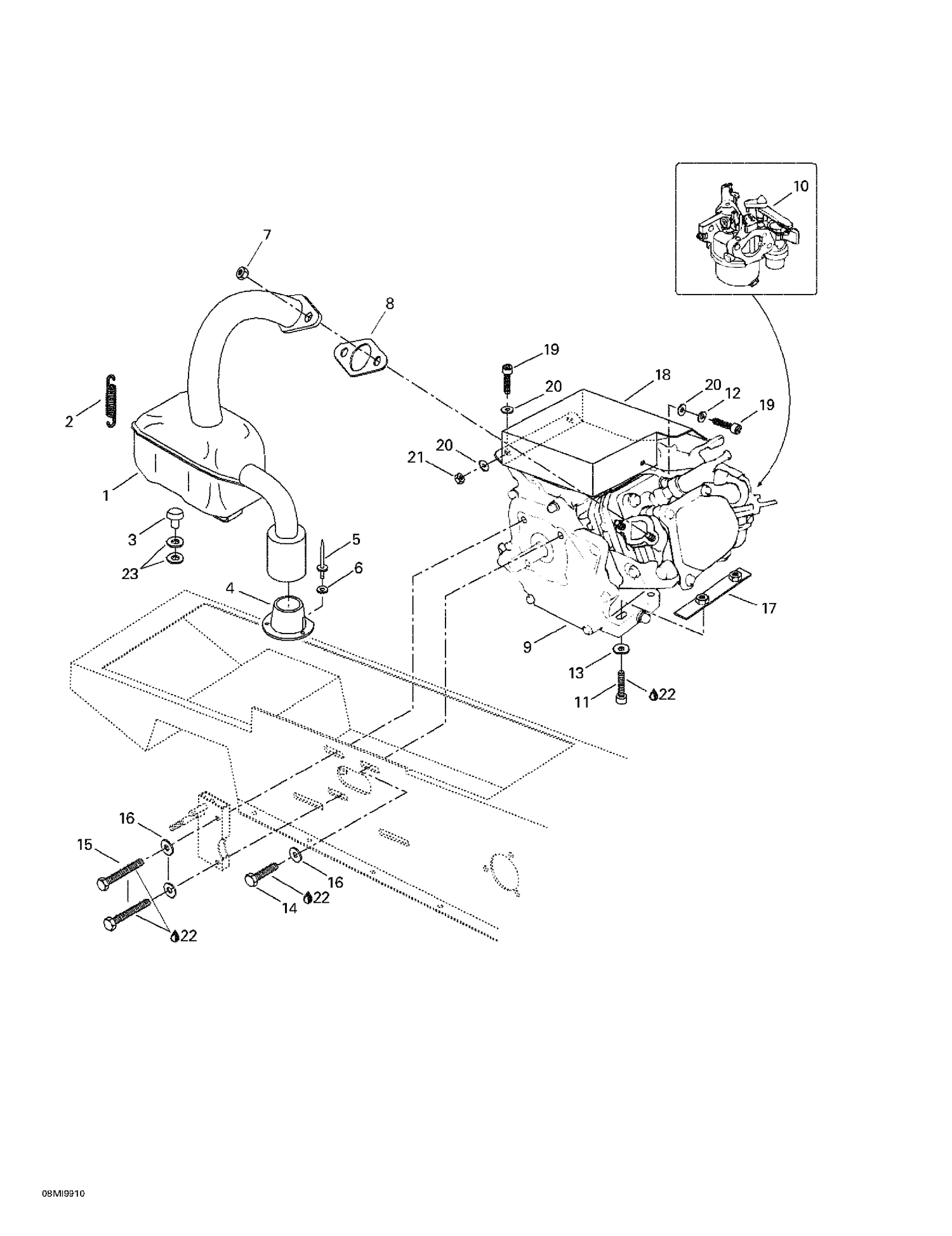

| Ref | Part Number | Description |
|---|
| 1 |
514098700 |
MUFFLER - Call your local BRP dealership |
| 2 |
415104800 |
SPRING - Call your local BRP dealership |
| 3 |
570044700 |
Rubber Bumper |
| 4 |
570028700 |
Exhaust Grommet |
| 5 |
390407200 |
Pop Rivet 3/16” |
| 6 |
234051410 |
Flat Washer M5 This part replaces 224051111. |
| 7 |
H94001080000S |
Hexagonal Nut M8 |
| 8 |
H18381ZH8800 |
Gasket |
| 9 |
400101101 |
MOTEUR 118 (JAUNE) - Appelez votre concessionnaire BRP local |
| 10 |
H16100ZH7U51 |
Carburetor Ass'y |
| 11 |
207084544 |
Hex. Screw M8 X 45 This part replaces 222084565. |
| 12 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 13 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 14 |
Not |
Available As Spare Part - Hex. Screw 5/4 |
| 15 |
Not |
Available As Spare Part - Hex. Screw 5/16 x 1 1/4 |
| 16 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 17 |
512057400 |
STOPPER PLATE - Call your local BRP dealership |
| 18 |
512058700 |
Engine Protector |
| 19 |
207063044 |
Hex. Screw M6 X 30 This part replaces 222063065. |
| 20 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 21 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 22 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
