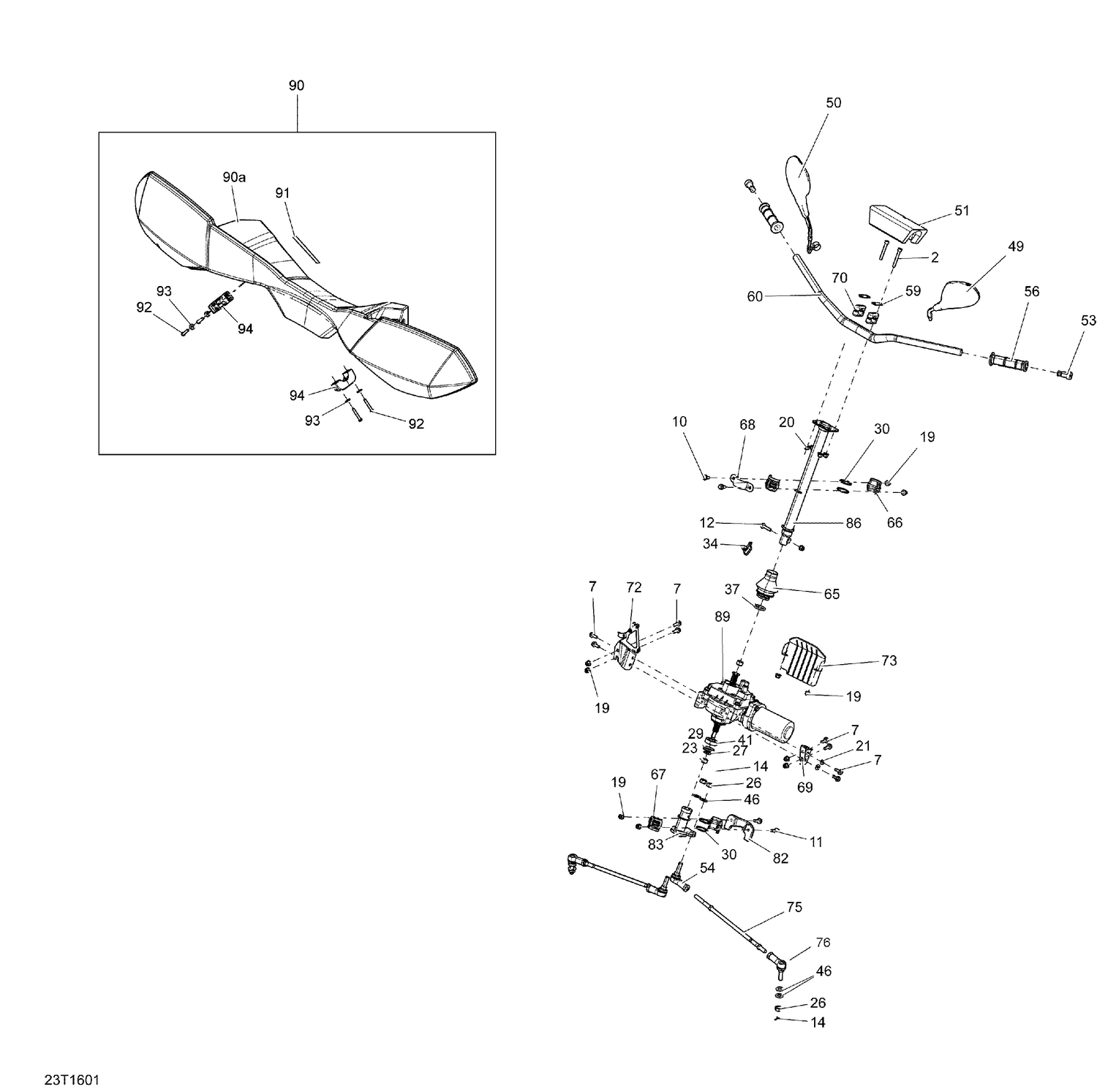

07- Steering - All Models
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 207682044 | Hex. Flange Screw M8 X 20 |
| 11 | 207682544 | Hex. Flange Screw M8 X 25 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 233281416 | Hex. Elastic Flange Nut M8 |
| 23 | 250000047 | Hex. Flange Elastic Nut M12 |
| 26 | 250100099 | Nut M12 |
| 27 | 706200281 | Hardened Washer This part replaces 250200086. |
| 46 | 706200281 | Hardened Washer This part replaces 250200086. |
| 51 | 709400939 | Cover |
| 53 | 709400449 | End Piece |
| 54 | 709402302 | RH Ball Joint This part replaces 709400490. |
| 56 | 709400493 | Handle Grip |
| 59 | 709400509 | Stiffner |
| 60 | 709401240 | Black, Handlebar |
| 66 | 709400783 | Spherical Half Bushing |
| 68 | 709400827 | Upper Column Attachment |
| 70 | 709400919 | Steering Support |
| 72 | 709400994 | RH STEERING BRACKET - Call your local BRP dealership |
| 76 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 82 | 709401428 | Column Attachment |
