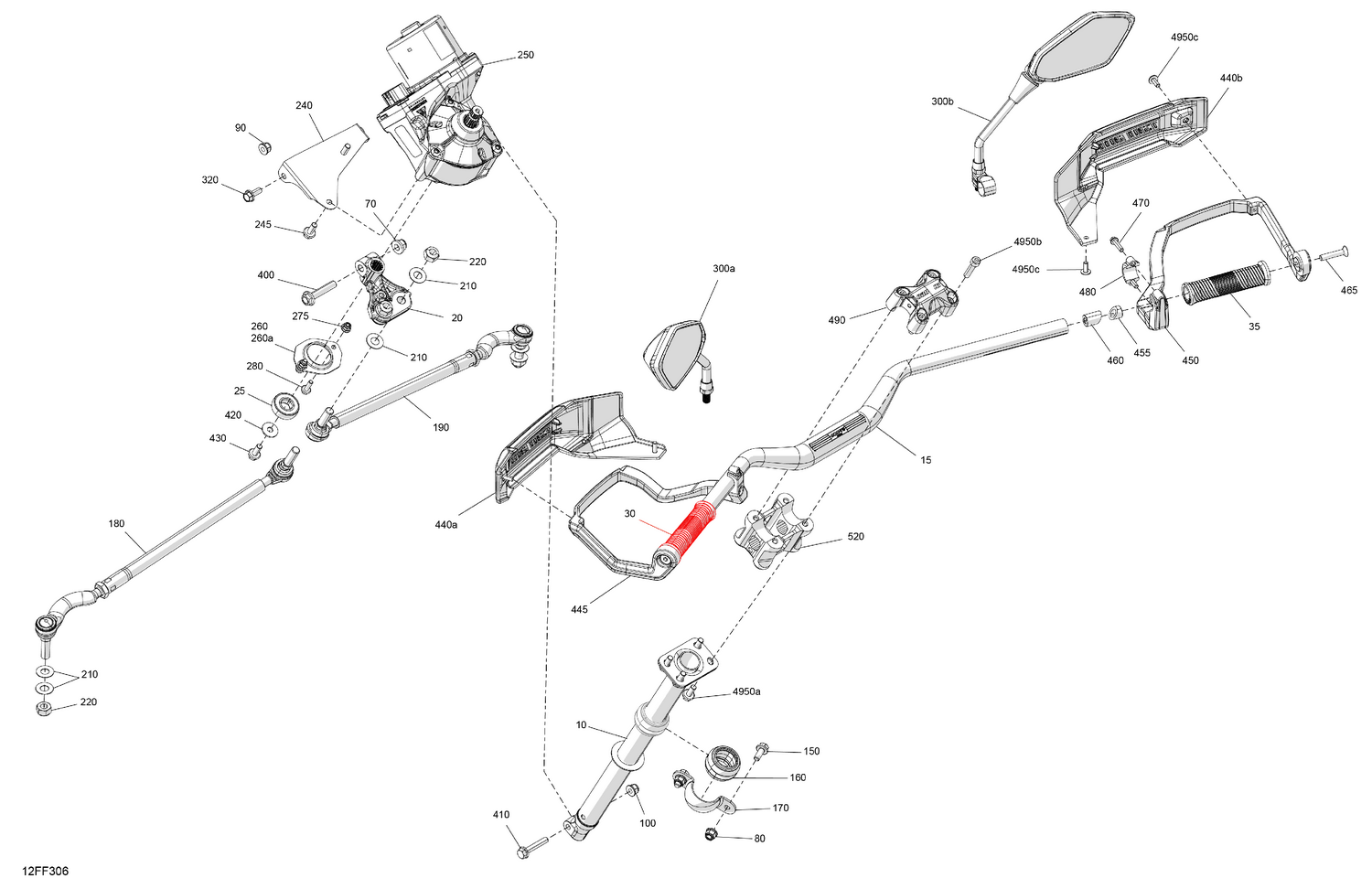

03- Mechanic - Steering
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709402739 | Steering Column |
| 15 | 709403062 | Black, Anodized Handlebar |
| 20 | 709403064 | Pitman Arm |
| 25 | 709402499 | Ball Bearing |
| 30 | 709402868 | LH Handlebar Grip |
| 35 | 709403010 | RH Handlebar Grip |
| 70 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 80 | 233281416 | Hex. Elastic Flange Nut M8 |
| 90 | 233281416 | Hex. Elastic Flange Nut M8 |
| 100 | 233281416 | Hex. Elastic Flange Nut M8 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 160 | 709402169 | Spherical Bushing |
| 170 | 709400827 | Upper Column Attachment |
| 180 | 709402737 | LH Tie Rod Ass'y |
| 190 | 709402738 | RH Tie Rod Ass'y |
| 210 | 706200281 | Hardened Washer |
| 220 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 240 | 709402182 | Power Steering Support |
| 245 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 250 | 709402871 | Power Steering Ass'y |
| 260a | 709402713 | Lower Bearing Support |
| 275 | 233261466 | Hex. Flange Elastic Nut M6 |
| 280 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a | 708200963 | LH Rearview Mirror |
| 300b | 708201092 | RH Rearview Mirror |
| 320 | 207682044 | Hex. Flange Screw M8 X 20 |
| 400 | 207505046 | Hex. Flange Screw M10 X 50, Scotch Grip |
| 410 | 250001133 | Hex. Flange Screw M8 X 45 Scotch Grip |
| 420 | 234082410 | Flat Washer 8 mm |
| 430 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 440a | 715010297 | LH/RH Handlebar Air Deflector Kit |
| 440b | 715010297 | LH/RH Handlebar Air Deflector Kit |
| 445 | 709402412 | LH Deflector Support |
| 450 | 709402413 | RH Deflector Support |
| 455 | 709403128 | Expansion Plug |
| 460 | 709403130 | Expansion Plug |
| 465 | 205384034 | Socket Head Screw |
| 470 | 229000711 | Hex Flange Screw M6 X 25 |
| 480 | 507032477 | Clamp And Screw Kit This part replaces 507032726. |
| 490 | 709402870 | Flange |
| 520 | 709402885 | Handlebar Riser Block |
| 4950a | 207582054 | Hex Screw Washer Head M8 X 20 |
| 4950b | 250001297 | Socket Head Screw S.Grip M8 X 35 |
