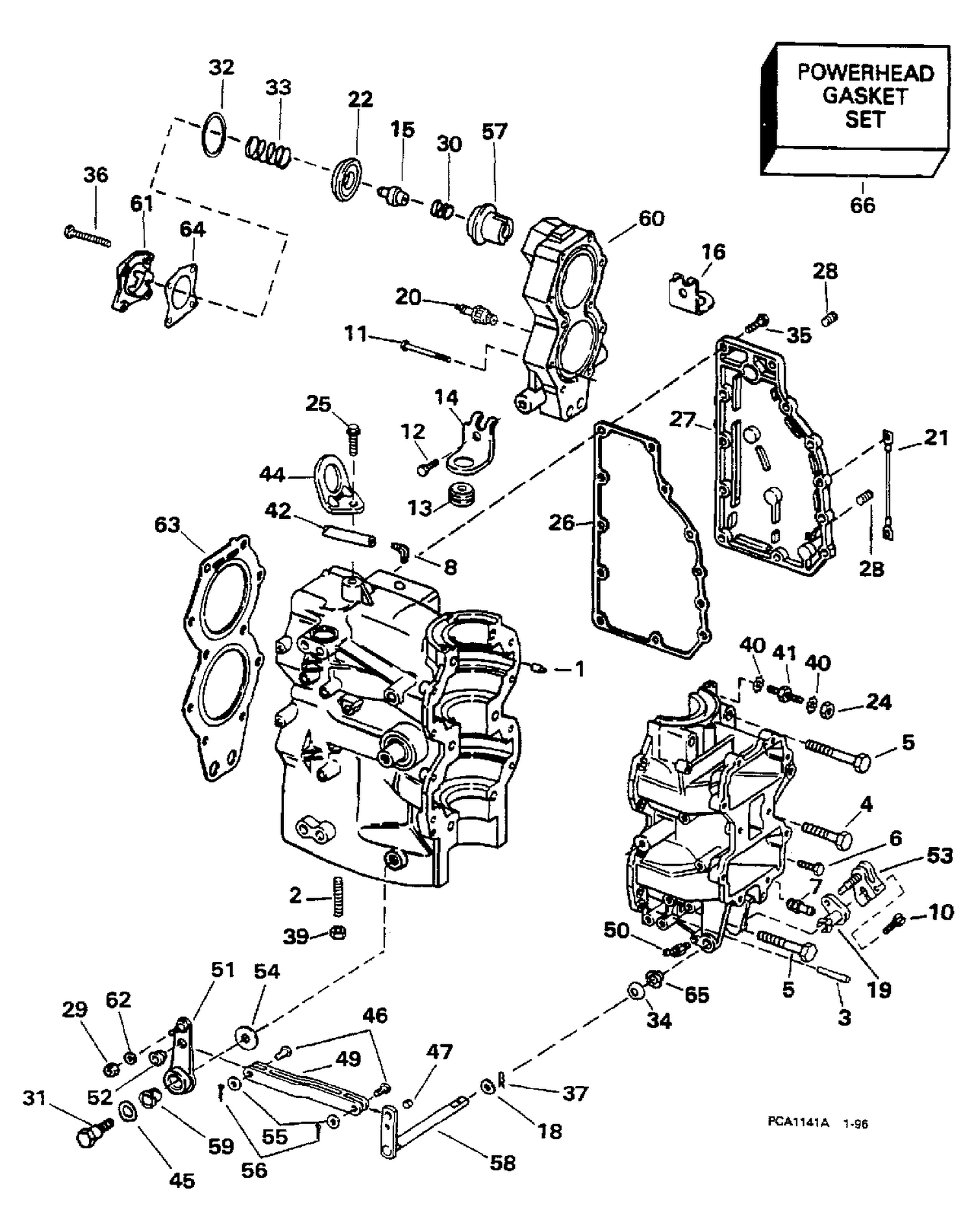

| Ref | Part Number | Description |
|---|
| 10 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 11 |
0322323 |
SCREW |
| 12 |
0306539 |
BOLT, Distributor |
| 13 |
0337505 |
GROMMET, Bracket |
| 14 |
0337504 |
BRACKET, Cyl. head to lower cover, starboard |
| 15 |
0436195 |
ENSEMBLE THERMOSTAT |
| 16 |
0337503 |
BRACKET, Cyl. head to lower cover, port |
| 18 |
0202026 |
LOCK WASHER, Stud |
| 19 |
0331765 |
BUSHING & ROD KEEPER |
| 20 |
0432424 |
SPARK PLUG , QL16V |
| 20 |
0502894 |
SPARK PLUG, Champion, L16V This part replaces 0433627. |
| 21 |
0584472 |
ENSEMBLE FILS, masse |
| 22 |
0435957 |
DIAPHRAGM |
| 25 |
0314515 |
SCREW |
| 26 |
0325211 |
GASKET |
| 27 |
0437506 |
COVER & PLUG Assy, Water passage |
| 33 |
0343115 |
SPRING |
| 34 |
0306012 |
BOW WASHER |
| 36 |
0306049 |
SCREW |
| 39 |
0316355 |
BUT, Carburetor mounting |
| 42 |
HOSE, |
Indicator, 18 3/4 in. (476mm) |
| 44 |
0326023 |
LIFT BRACKET |
| 47 |
0320302 |
BUSHING, Laink to lever |
| 53 |
0396831 |
LEVER SHIFT ROD |
| 58 |
0396832 |
SHIFT LEVER |
| 59 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 60 |
0340101 |
CYLINDER HEAD |
| 61 |
0343141 |
COVER, Thermostat |
| 62 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 63 |
0335359 |
GASKET, Cylinder head |
| 64 |
0329830 |
GASKET, Cover |
| 65 |
0312708 |
BUSHING |
| 0437339 |
5005576 |
CYLINDER & CRANKCASE ASSY. This part replaces 0437339. |
