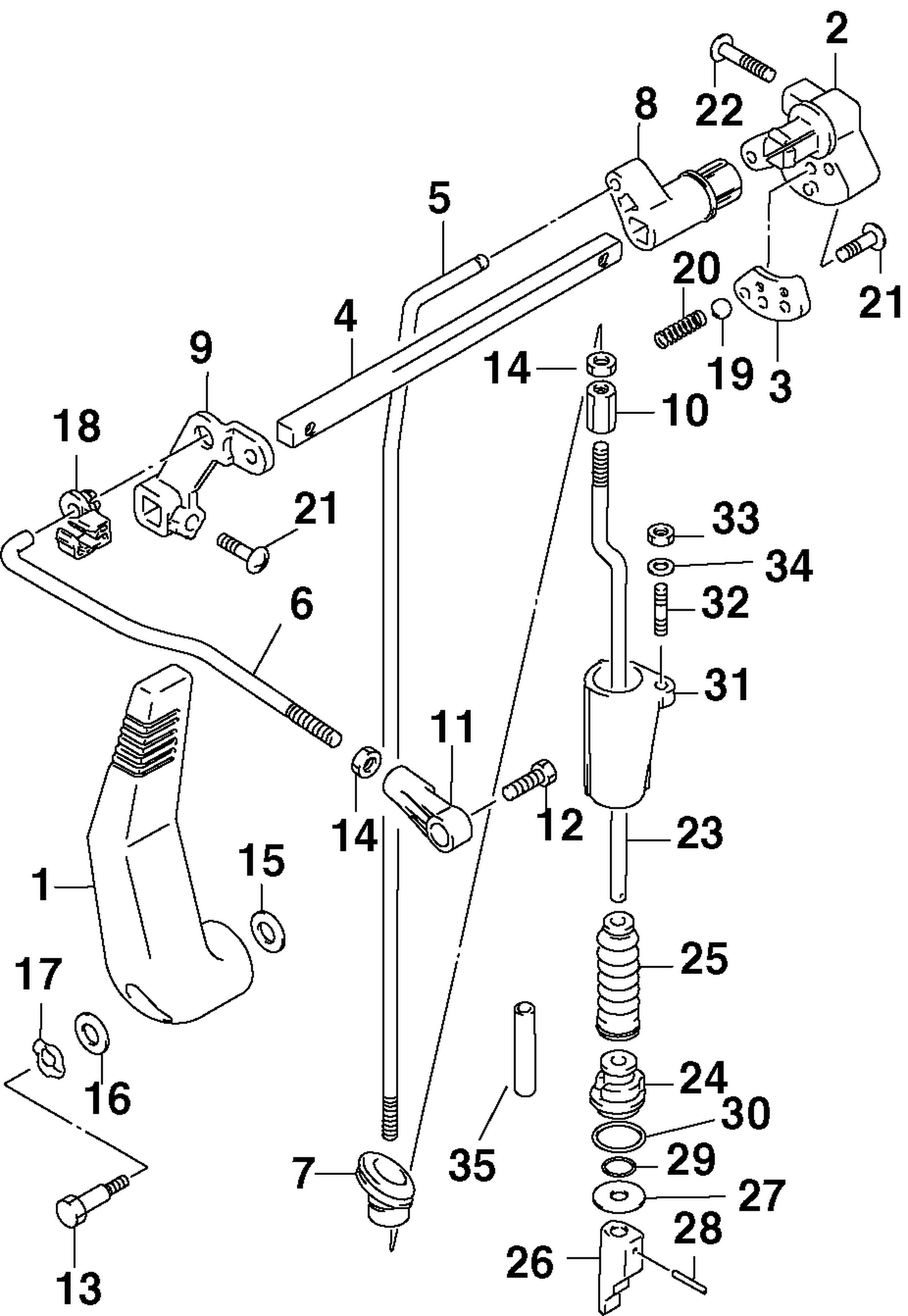

| Ref | Part Number | Description |
|---|
| 1 |
5033131 |
LEVER, CLUTCH |
| 2 |
5036240 |
LEVER, CLUTCH NOTCH This part replaces 5033132. |
| 3 |
5033133 |
PLATE, CLUTCH NOTCH |
| 4 |
5033134 |
ARBRE, LEVIER D'EMBRAYAGE |
| 5 |
5033135 |
ROD, CLUTCH |
| 6 |
5033136 |
LINK, CLUTCH LEVER |
| 7 |
5033137 |
BOOT, CLUTCH ROD |
| 8 |
5036756 |
ARM, CLUTCH ROD This part replaces 5033138. |
| 9 |
5032724 |
LEVER, CLUTCH CONTROL |
| 10 |
5031449 |
CONNECTOR, Shift rod |
| 11 |
5033139 |
CONNECTEUR, ARTICULATION EMBRAYAGE |
| 13 |
5031818 |
BOULON (6 x 28,8 mm) |
| 16 |
5031831 |
RONDELLE (8X22X1,0mm) |
| 17 |
5031856 |
RONDELLE, ONDULÉE |
| 18 |
5032997 |
CONNECTEUR |
| 19 |
5030096 |
BALL |
| 20 |
5030139 |
SPRING |
| 21 |
5031010 |
SCREW |
| 22 |
5033308 |
SCREW |
| 23 |
5033140 |
ROD, SHIFT 20" |
| 23 |
5033141 |
ROD, SHIFT 15" |
| 24 |
5033143 |
GUIDE, SHIFT ROD |
| 25 |
5030215 |
SOUFFLET DE PROTECTION, TIGE DE COMMANDE DE SENS DE MARCHE |
| 26 |
5033144 |
CAM, SHIFT |
| 27 |
5033309 |
RONDELLE (5,5X24X1,6mm) |
| 29 |
5033004 |
JOINT TORIQUE |
| 30 |
5035583 |
JOINT TORIQUE This part replaces 5033007. |
| 31 |
5035584 |
COLLAR, SHIFT ROD This part replaces 5033142. |
| 32 |
5032764 |
GOUJON FILETÉ |
| 34 |
5031829 |
RONDELLE (5,5 x 12 x 0,8 mm) |
