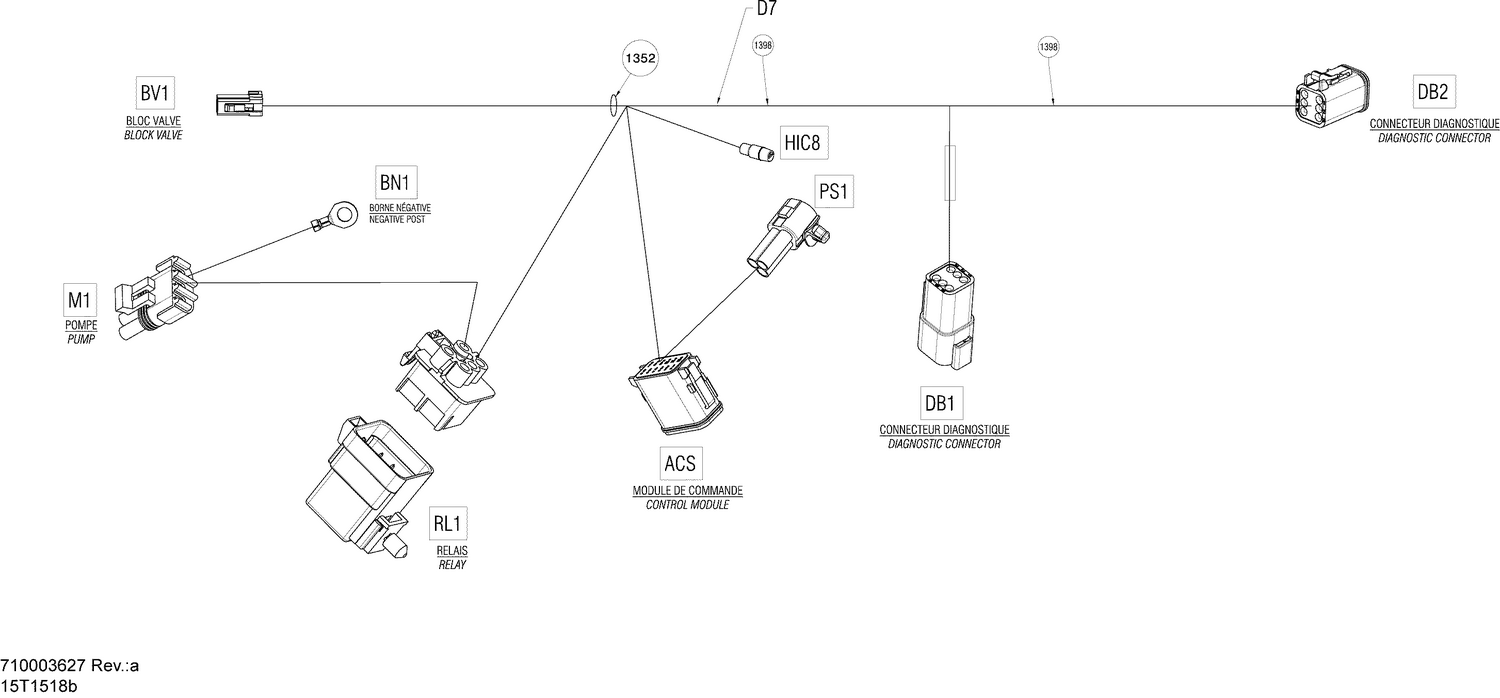

10- Electrical Harness Compressor_15T1518b
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| ACS | 278001665 | Female Terminal |
| ACS | 293000052 | Sealing Cap |
| ACS | 710003192 | MALE WEDGE, 12 CIRCUITS - Call your local BRP dealership |
| ACS | 710003193 | CONNECTOR_FEMALE 12 CAVITIES - Call your local BRP dealership |
| BN1 | 278000992 | Open Barrel |
| BV1 | 515175231 | Female Terminal |
| BV1 | 515175658 | Female Housing, 2 Circuits |
| D7 | 409012700 | Diode |
| DB1 | 278000735 | Female Lock, 6 Circuits |
| DB1 | 710001348 | Male Terminal |
| DB1 | 710001539 | Male Terminal Housing, 6 Circuits |
| DB2 | 278002896 | Housing, 6 Circuits |
| DB2 | 515175678 | Male Wedge, 6 Circuits |
| HIC8 | 278000230 | Male Terminal |
| HIC8 | 278001008 | Insulated Sheath |
| M1 | 278000216 | Wire Seal |
| M1 | 278000218 | Wire Seal |
| M1 | 278000273 | Male Housing, 3 Circuits |
| M1 | 409007300 | Female Terminal |
| PS1 | 409011300 | Male Terminal |
| PS1 | 710000402 | Wire Seal |
| PS1 | 710000722 | Connector |
| RL1 | 278001065 | Wire Seal |
| RL1 | 710002920 | CONNECTOR_FEMALE 5 CAVITIES - Call your local BRP dealership |
| RL1 | 710002921 | Lock |
| RL1 | 710002996 | RELAY - Call your local BRP dealership |
| RL1 | 710003001 | CLIP - Call your local BRP dealership |
| RL1 | 710003191 | TERMINAL - Call your local BRP dealership |
| 1 | 710005160 | Compressor Harness This part replaces 710003627. |
| 1352 | 710003168 | Dart Tie Rap 200MM |
