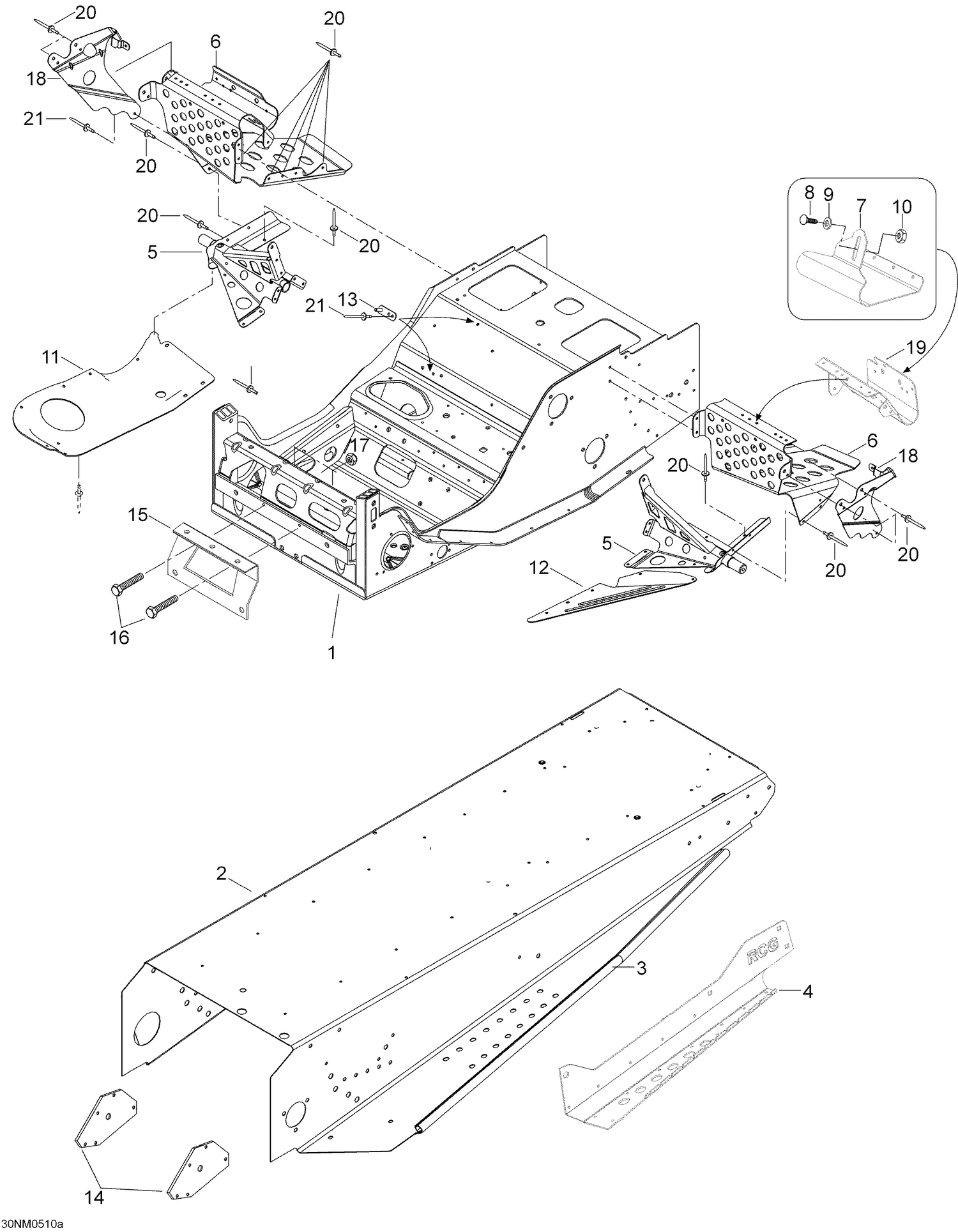

09- Frame
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605148866 | Frame ass'y |
| 2 | 605148867 | Tunnel |
| 3 | 5348168 | R.H. Support |
| 3 | 5348265 | L.H. Support |
| 4 | 605148823 | R.H. Support |
| 4 | 605148824 | L.H. Support |
| 5 | 605248447 | R.H. support |
| 5 | 605248448 | L.H. support |
| 6 | 605250377 | R.H. front footrest |
| 6 | 605250378 | L.H. front footrest |
| 7 | 5248038 | R.H. front footrest |
| 7 | 5248039 | L.H. front footrest |
| 8 | 40058 | Locking screw M8 x 20 |
| 9 | 20005 | WASHER M10 - Call your local BRP dealership |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 11 | 518322636 | RH BOTTOM PAN PLATE - Call your local BRP dealership |
| 12 | 605349267 | L.H. reinf. plate |
| 13 | 518319728 | Double bracket |
| 14 | 5348321 | Support |
| 15 | 5346111 | Support plate |
| 16 | 40029 | Hex. screw M6 x 16 |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 18 | 605250669 | R.H. footrest reinforcem. |
| 18 | 605250670 | L.H. footrest reinforcem. |
| 19 | 5147869 | R.H. toe hold |
| 19 | 5147870 | R.H. toe hold |
| 20 | 36108 | Rivet |
