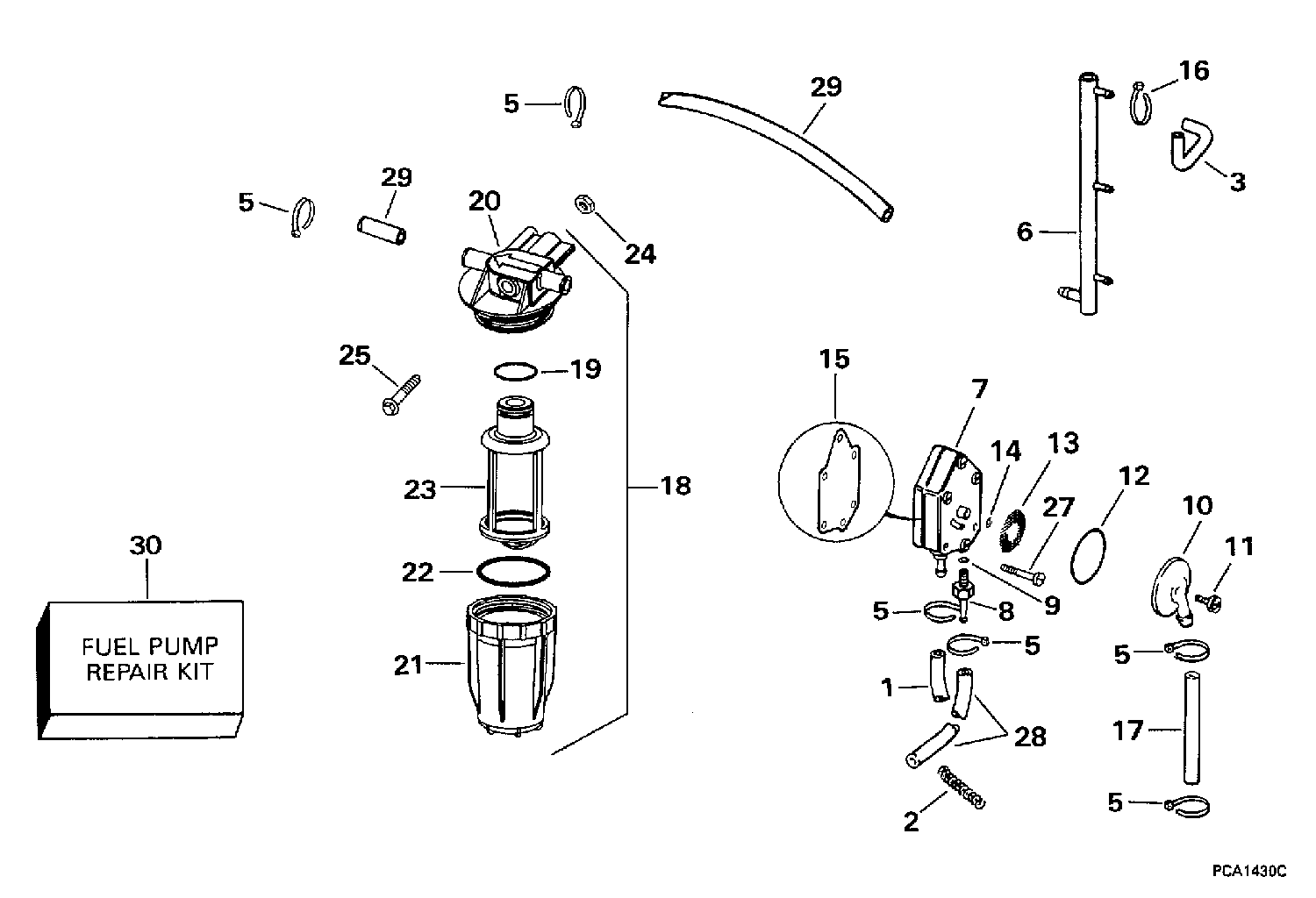

FUEL SYSTEM
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0333383 | HOSE, Connector to filter This part replaces 0324866. |
| 2 | 0315942 | SPRING |
| 3 | 0339367 | HOSE, Manifold to carburetor |
| 5 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 6 | 0436032 | FUEL MANIFOLD ASSY. |
| 7 | 0438557 | FUEL PUMP Assy |
| 17 | 0333635 | HOSE, Filter to fuel manifold |
| 18 | 0438017 | FUEL FILTER ASSY. |
| 27 | 0342389 | SCREW, Fuel pump mounting, M5 |
| 28 | 0333635 | HOSE, Filter to fuel manifold |
| 29 | 0333635 | HOSE, Filter to fuel manifold |
