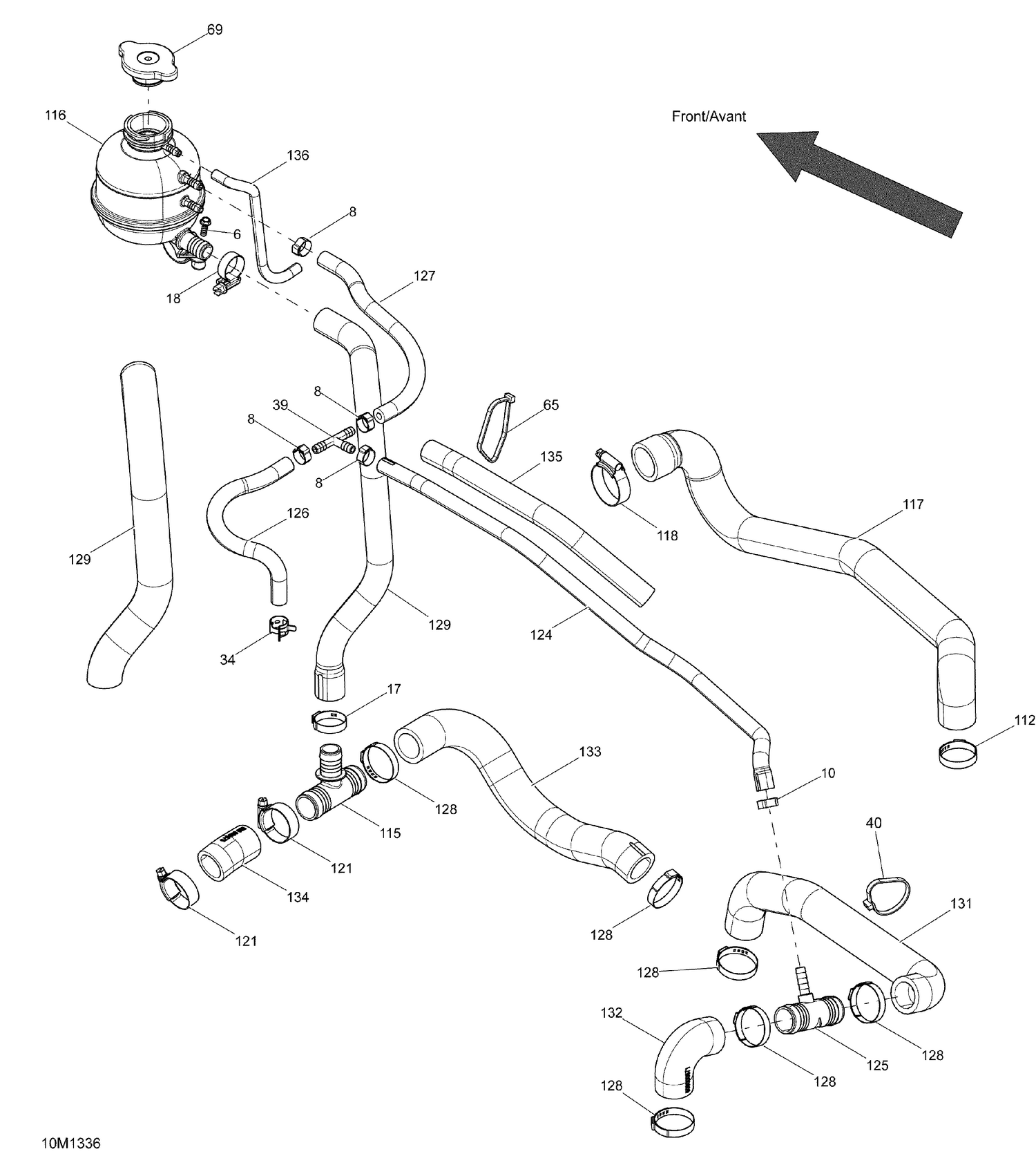

01- Cooling System
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 8 | 293650046 | Oetiker Clamp |
| 10 | 293650047 | Crimp Clamp, 15.3-706R |
| 17 | 293650099 | Crimp Clamp |
| 18 | 293650124 | Norma Gear Clamp |
| 34 | 293650210 | Spring Clamp |
| 39 | 293710024 | T-Fitting |
| 40 | 414115200 | Tie-Rap 180 mm |
| 65 | 414115200 | Tie-Rap 180 mm |
| 69 | 509000180 | Radiator Pressure Cap |
| 112 | 509000181 | Oetiker Gear Clamp |
| 115 | 509000372 | T-Fitting |
| 116 | 509000421 | Coolant Tank |
| 117 | 509000431 | ENGINE OUTLET HOSE - Call your local BRP dealership |
| 118 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 121 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 124 | 509000503 | BREATHER HOSE - Call your local BRP dealership |
| 125 | 509000510 | T-Fitting |
| 126 | 509000518 | BLEEDER HOSE - Call your local BRP dealership |
| 127 | 509000519 | BLEEDER HOSE - Call your local BRP dealership |
| 128 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 129 | 509000551 | FILLING HOSE - Call your local BRP dealership |
| 131 | 509000670 | Radiator Hose |
| 132 | 509001066 | Radiator Hose This part replaces 509000671. |
| 133 | 509000673 | Radiator Hose |
| 134 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 135 | 219704408 | Tubing 16 Mm 1000Mm Long |
