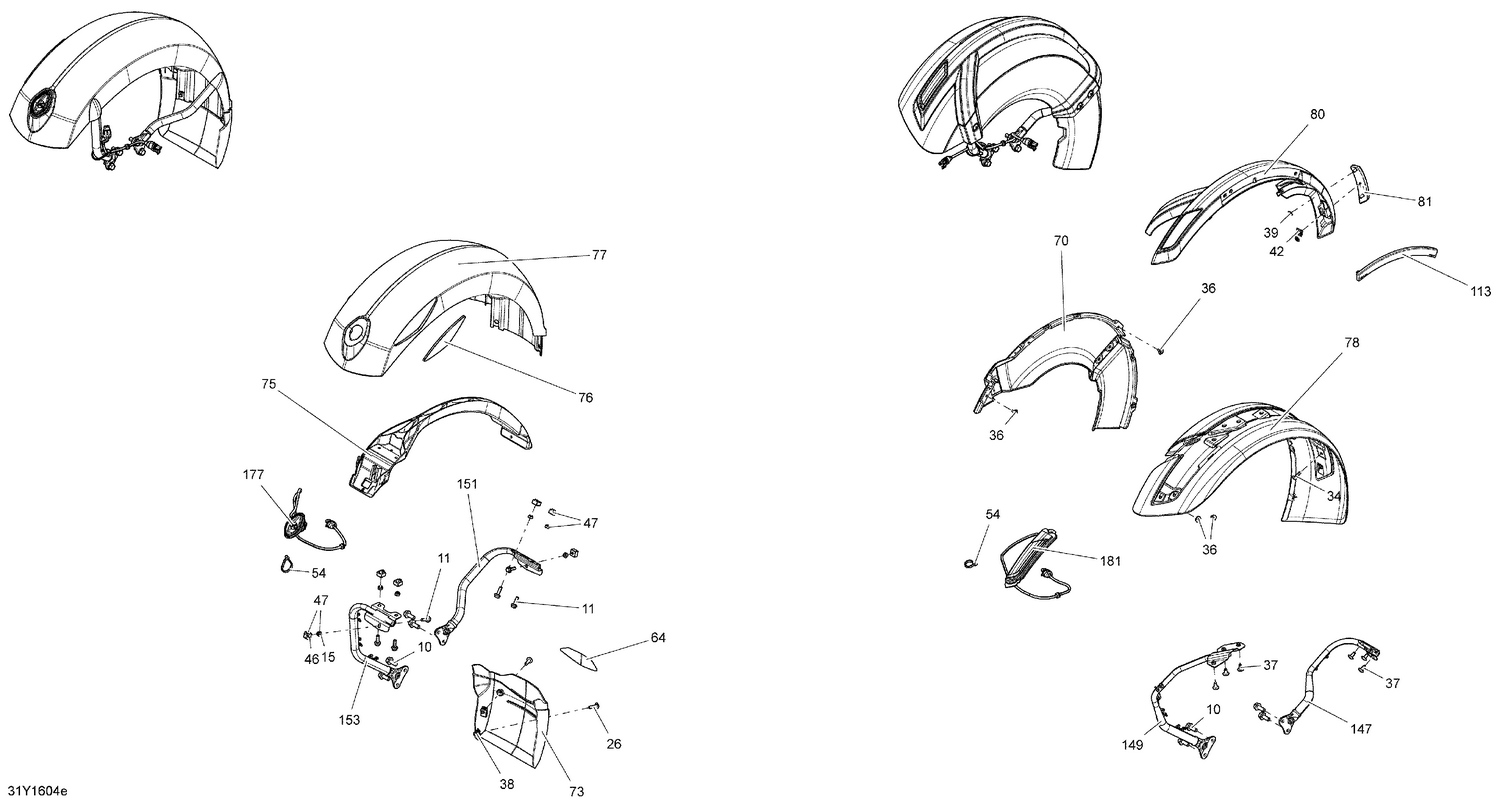

| Ref | Part Number | Description |
|---|
| 10 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 11 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 15 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 26 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 36 |
250000805 |
Plastite Screw M4 X 10 |
| 37 |
250000851 |
Torx Screw M6 X 14 |
| 38 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 39 |
250100163 |
Pressure Nut |
| 42 |
250100176 |
Panel Nut M5 X 0.8 |
| 46 |
269500252 |
M6 Nut Housing Ass'y |
| 47 |
269500725 |
M6 Nut Housing Ass'y |
| 64 |
704901160 |
Reflective Stripe |
| 70 |
705007616 |
LH Inner Fender |
| 70 |
705007617 |
RH Inner Fender |
| 73 |
705001767 |
LH Mudguard |
| 73 |
705001768 |
RH Mudguard |
| 75 |
705002389 |
Central Front Fender Support |
| 76 |
705002423 |
Amber, Lateral Reflector |
| 77 |
705003413 |
Bare, LH Front Fender This part replaces 705007994. |
| 77 |
705003414 |
Bare, RH Front Fender This part replaces 705007996. |
| 78 |
705004801 |
Bare, LH Front Fender This part replaces 705008027. |
| 78 |
705004802 |
Bare, RH Front Fender This part replaces 705010461. |
| 78 |
705006501 |
Metallic Magnesium Front Fender RH |
| 78 |
705006509 |
White LH Front Fender This part replaces 705008021. |
| 78 |
705006909 |
Metallic Black Front Fender RH This part replaces 705008026. |
| 78 |
705008020 |
Vegas White P RH Front Fender |
| 78 |
705010294 |
Lh Fr Fender Dragon Red |
| 78 |
705010295 |
Rh Fr Fender Dragon Red |
| 78 |
705012643 |
Red Front Fender RH This part replaces 705008718. |
| 78 |
Not |
Available As Spare Part - Not Available |
| 80 |
705005407 |
Bare, LH Fender This part replaces 705008744. |
| 80 |
705005408 |
Bare, RH Fender This part replaces 705008005. |
| 80 |
705006513 |
Metal. Magnesium Frt Fender Moulding LH |
| 80 |
705006514 |
Metal. Magnesium Frt Fender Moulding RH |
| 80 |
705006520 |
White Front Fender Moulding LH This part replaces 705008004. |
| 80 |
705006912 |
Carbone Black Front Fender Moulding LH This part replaces 705008010. |
| 80 |
705006913 |
Carbone Black Front Fender Moulding RH This part replaces 705008011. |
| 80 |
705008743 |
Red Front Fender Moulding RH This part replaces 705008721. |
| 80 |
705008747 |
Steel Black RH Front Fender Moulding This part replaces 705008745. |
| 80 |
705010463 |
Orbital Blue Fender Cover RH |
| 80 |
Not |
Available As Spare Part - Not Available |
| 113 |
705008661 |
Yellow LH Reflector |
| 113 |
705008662 |
Yellow RH Reflector |
| 147 |
219800398 |
RH Fender Rear Support Kit This part replaces 705009547. |
| 147 |
219800414 |
LH Support This part replaces 705009546. |
| 149 |
219800396 |
RH Fender Front Support Kit This part replaces 705010099. |
| 149 |
219800497 |
LH Fender Front Support Kit This part replaces 705010098. |
| 151 |
705010100 |
LH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership |
| 151 |
705010101 |
RH PAINTED FENDER REAR SUPPORT - Call your local BRP dealership |
| 153 |
705010102 |
LH Painted Fender Front Support |
| 153 |
705010103 |
RH Painted Fender Front Support |
| 177 |
710003295 |
Position Light |
| 181 |
710004033 |
RH Position Light |
