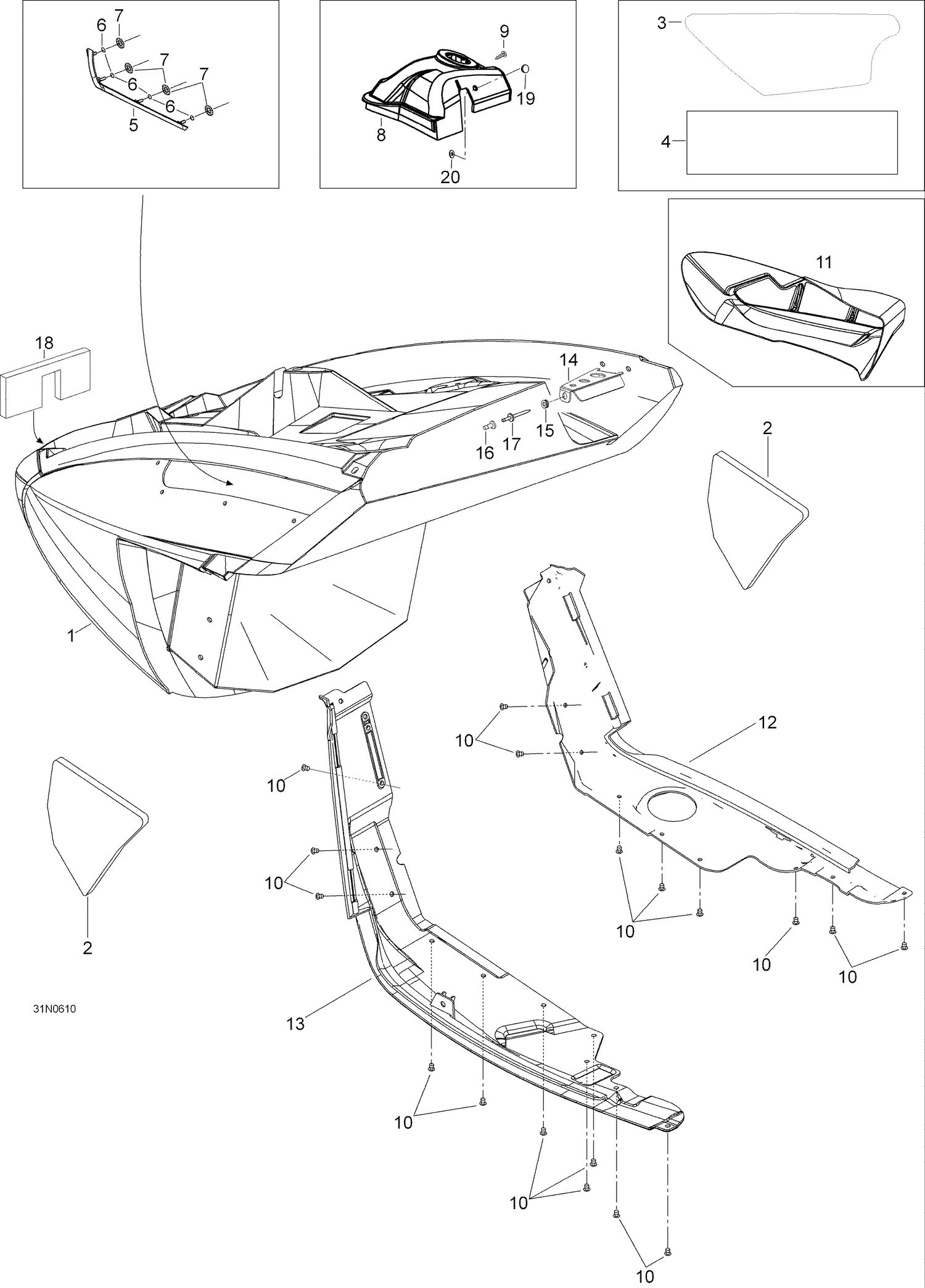

09- Bottom Pan
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605153652 | Front bottom pan ass'y |
| 2 | 605354135 | L.H. Foam |
| 2 | 605354136 | R.H. Foam |
| 3 | 605354137 | R.H. Foam (rear) |
| 4 | 44001 | REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 5 | 605253929 | Intake frame |
| 6 | 48231 | O-ring |
| 7 | 36084 | Snap ring |
| 8 | 605353758 | R.H. Shock cover |
| 8 | 605353759 | L.H. Shock cover |
| 9 | 40887 | Wronic-screw 4,2 x 9,5 |
| 10 | 36037 | Rivet |
| 11 | 605253930 | Inlet channel |
| 12 | 502006702 | RH BOTTOM PAN - Call your local BRP dealership |
| 13 | 502006703 | LH BOTTOM PAN - Call your local BRP dealership |
| 14 | 605353182 | Support |
| 15 | 517307161 | Grommet This part replaces 517302841. |
| 16 | 36013 | Rivetnut |
| 17 | 36014 | Rivet |
| 18 | 605353483 | Foam |
| 19 | 414644300 | Black, Dart |
