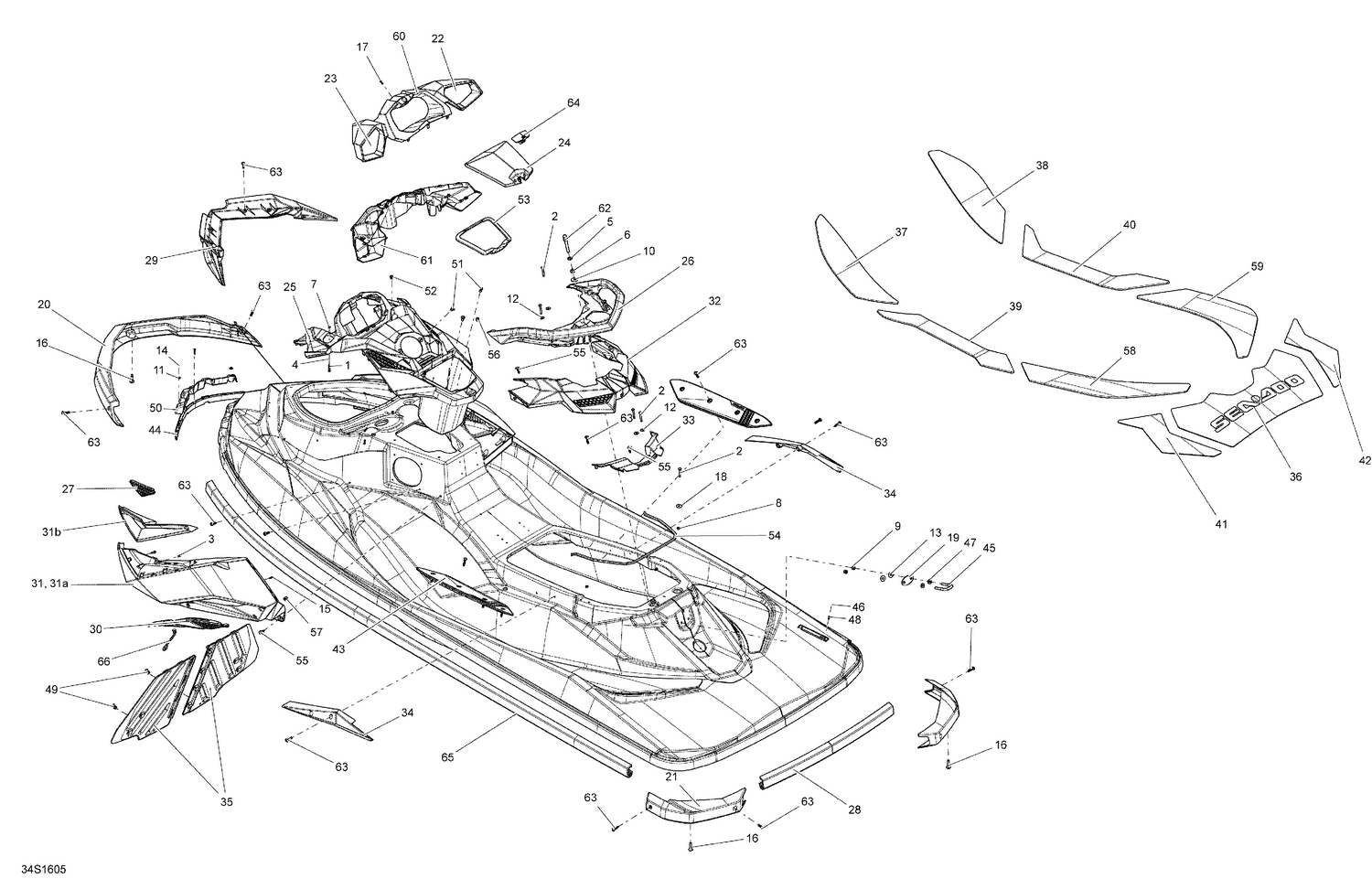

| Ref | Part Number | Description |
|---|
| 1 |
207153060 |
Hex. Flange Screw M5 X 30 |
| 2 |
207164060 |
Hex. Screw M6 X 40 |
| 3 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 4 |
211200035 |
Flat Washer |
| 5 |
232100600 |
Hex. Jam Nut M10 |
| 6 |
232501200 |
Elastic Stop Nut M10, Brass |
| 7 |
232551200 |
Elastic Stop Nut 5 mm |
| 8 |
232561200 |
Brass Elastic Stop Nut M6 |
| 9 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 10 |
234002600 |
Flat Washer 10 mm, Stainless |
| 11 |
234042600 |
Flat Washer 4 mm, Stainless |
| 12 |
234062600 |
Flat Washer M6, Stainless |
| 13 |
234082600 |
Flat Washer 8 mm, Stainless |
| 14 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 15 |
250000287 |
Flange Torx Screw K40 X 16 |
| 16 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 17 |
250000735 |
Torx Screw K40 X 16 |
| 18 |
250200022 |
Flat Washer M6.6 X 22 |
| 19 |
291001386 |
Black, Finition Plate |
| 20 |
291004277 |
Front Bumper |
| 21 |
291004278 |
Black, Corner Bumper |
| 21 |
291004279 |
Black, Corner Bumper |
| 22 |
291003090 |
Mirror RH, With Double-Face Tape |
| 23 |
291003091 |
Mirror LH, With Double-Face Tape |
| 24 |
291004579 |
Deep Black, Glove Box Door This part replaces 291003331. |
| 25 |
295501182 |
Kit Console This part replaces 291004282. |
| 26 |
291004619 |
REAR HANDLE ASS'Y - Call your local BRP dealership This part replaces 291004414. |
| 26 |
291004620 |
Black, Rear Handle Ass'y This part replaces 291003338. |
| 27 |
291003343 |
Deep Black, LH Front Hood Grille |
| 27 |
291003344 |
Deep Black, RH Front Hood Grill |
| 28 |
291003872 |
Lateral Bumper This part replaces 291004304. |
| 29 |
291004367 |
Deflector |
| 30 |
291003348 |
Black, LH Side Grille |
| 30 |
291003349 |
Deep Black, RH Side Grille |
| 32 |
291004365 |
Deep Black, Cosmetic Rear |
| 33 |
291003372 |
Deep Black, Vent Cover |
| 35 |
291004572 |
Divider Ass'y This part replaces 291003391. |
| 36 |
291003586 |
Platform Carpet |
| 37 |
291003587 |
Front Carpet LH |
| 38 |
291003588 |
Front Carpet RH |
| 39 |
291003589 |
Center Front Carpet LH |
| 40 |
291003591 |
Center Front Carpet RH |
| 41 |
291003593 |
Rear Carpet LH |
| 42 |
291003594 |
Rear Carpet RH |
| 43 |
291004317 |
Footrest |
| 43 |
291004319 |
Footrest |
| 44 |
291003897 |
Deck Nose |
| 45 |
292000933 |
U-Clamp |
| 46 |
293000014 |
Black, Snap Cap |
| 47 |
293050001 |
Flat Washer M8.5 x 18 |
| 48 |
293150016 |
Rivet 1/8" |
| 49 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 50 |
291003704 |
Bumper Support |
| 51 |
293150123 |
Pop Rivet 3/16" |
| 52 |
293150186 |
Pop Rivet 3/16 |
| 53 |
293250265 |
Urethane Seal |
| 54 |
292002523 |
Gasket This part replaces 293250289. |
| 55 |
293730006 |
Black, Dart |
| 56 |
293830005 |
Rubber Bumper |
| 57 |
414644300 |
Black, Dart |
| 58 |
291003577 |
Rear Center Carpet LH |
| 59 |
291003578 |
Rear Center Carpet RH |
| 60 |
291004261 |
Black Bezel Ass'y |
| 61 |
291004271 |
Deep Black, Mirror Support |
| 62 |
291003877 |
Stud Seat |
| 63 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 63 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000710. |
| 64 |
264000164 |
Black, Latch This part replaces 264000091. |
| 65 |
291003872 |
Lateral Bumper This part replaces 291004304. |
