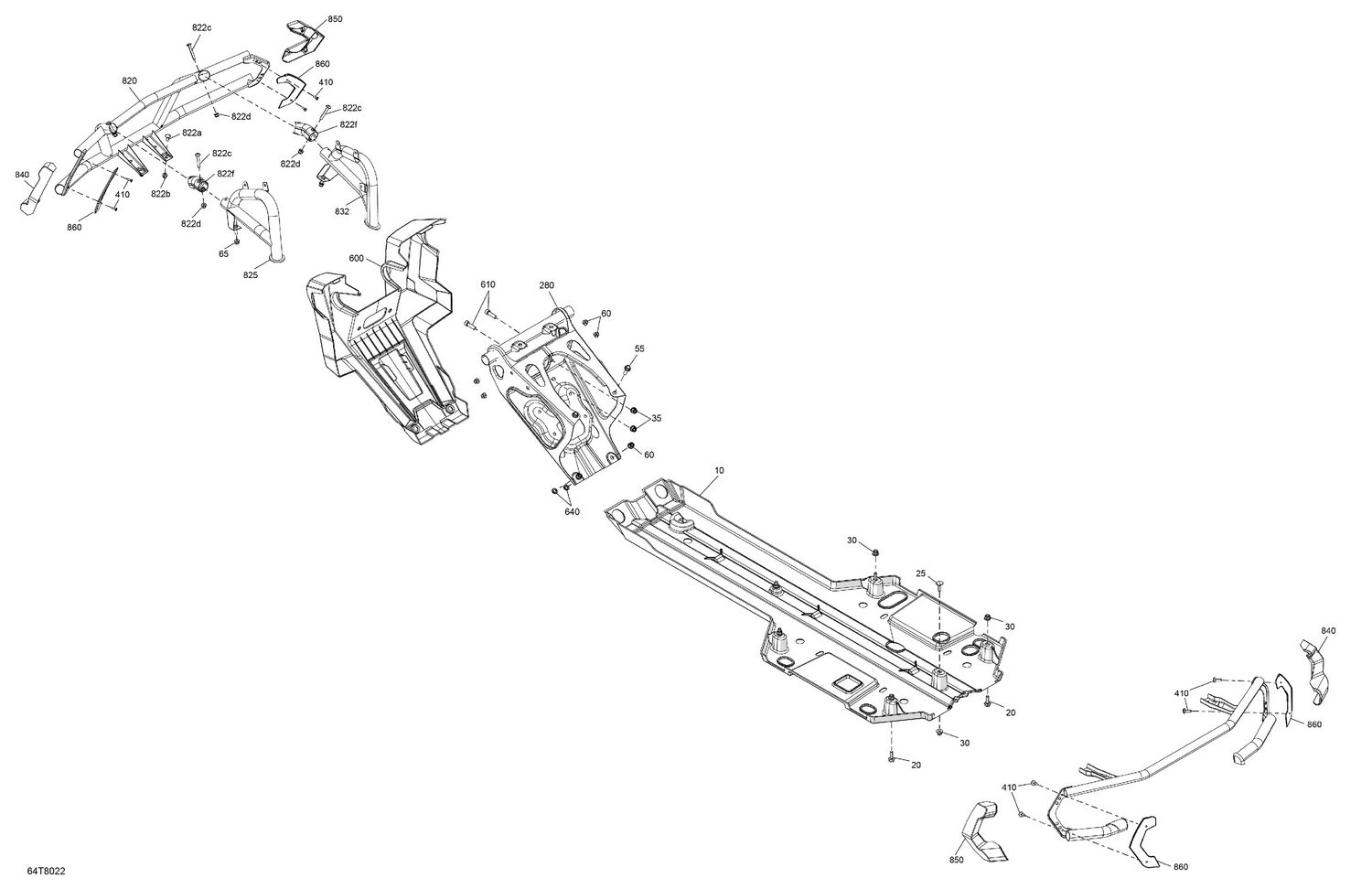

07- Body - Skid Plate and Bumper
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002374 | Protective Plate Kit |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233281434 | Hex. Flange Elastic Nut M8 |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 65 | 233281464 | Elastic Flange Nut M8 |
| 280 | 705016893 | Front Bumper Support This part replaces 705009253. |
| 410 | 250000720 | Torx Screw K50 X 16 |
| 600 | 705006299 | Front Guard Plate |
| 610 | 236282054 | Hex. Screw M8 X 20 |
| 640 | 705004497 | Ring |
| 820 | 705014575 | Can-Am Red, Front Bumper |
| 822a | 207782044 | Carriage Bolt, M8 X 20 |
| 822b | 233281414 | Hex. Flange Elastic Nut M8 |
| 822c | 250000535 | Torx Screw M8 X 55 |
| 822d | 233281464 | Elastic Flange Nut M8 |
| 822f | 705009891 | Red, Upper Bracket |
| 825 | 705013934 | Red, LH Bracket |
| 832 | 705013935 | Red, RH Rad Bracket |
| 840 | 705004409 | Cap (Front LH) (Rear RH) |
| 850 | 705004410 | Cap (Front RH) (Rear LH) |
