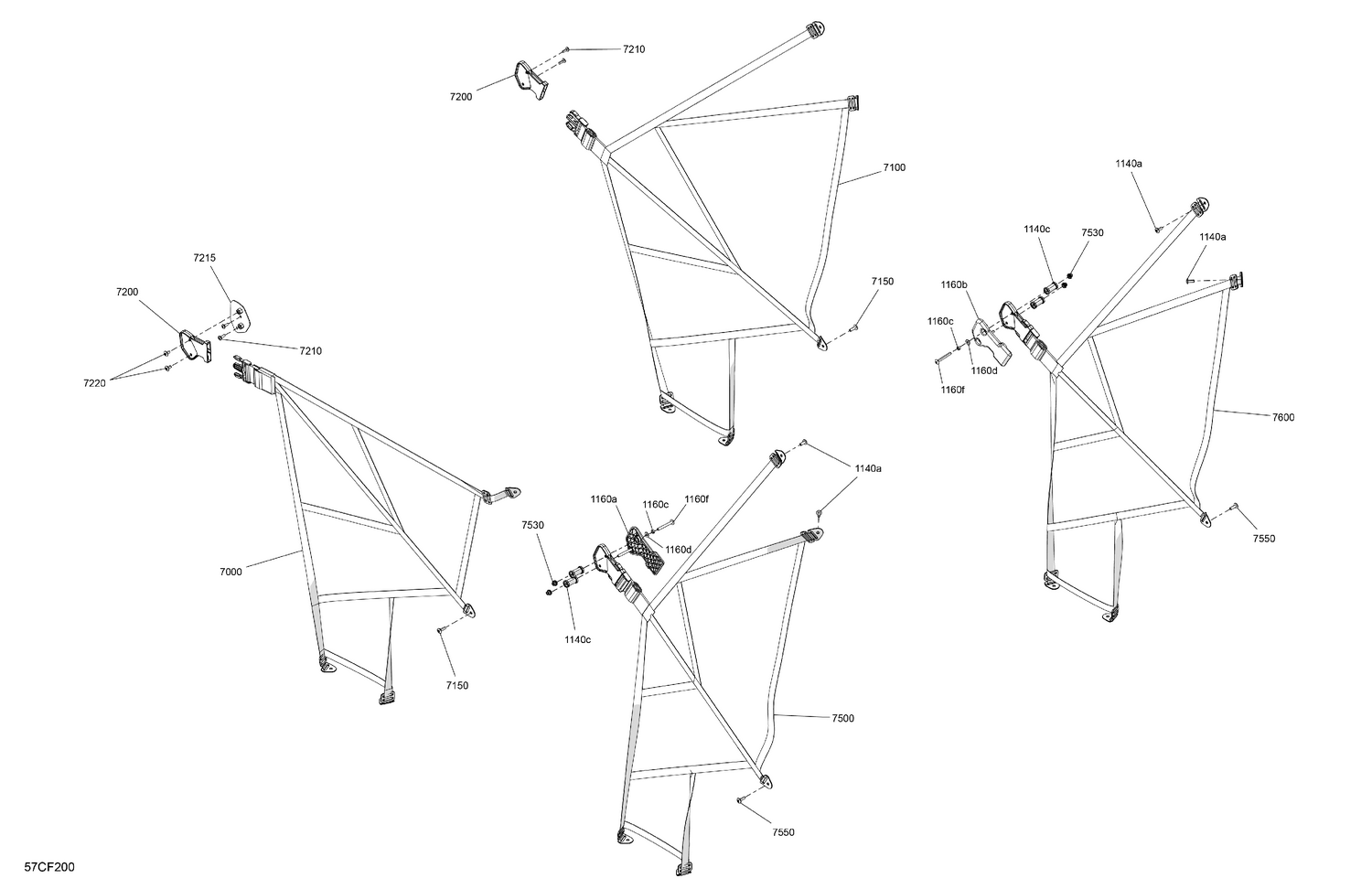

07- Cab Interior - Safety Net
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1140a | 250000717 | Torx Head Screw M6 X 16 |
| 1140c | 707900470 | Spacer |
| 1160a | 707900815 | LH Rear Guard |
| 1160b | 707900816 | RH Rear Guard |
| 1160c | 708300737 | Bushing |
| 1160d | 224061121 | Flat Washer |
| 7000 | 707901180 | LH Front Protection Net |
| 7100 | 707900673 | RH Front Protection Net |
| 7150 | 250000722 | Torx Screw M6 X 20 |
| 7200 | 707900592 | Safety Net Link |
| 7210 | 250000720 | Torx Screw K50 X 16 |
| 7215 | 707900610 | Support |
| 7220 | 250000767 | Torx Truss Screw M6 X 12 |
| 7500 | 707900674 | LH Rear Net Protection |
| 7530 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 7550 | 250000722 | Torx Screw M6 X 20 |
| 7600 | 707900675 | RH Rear Net Protection |
