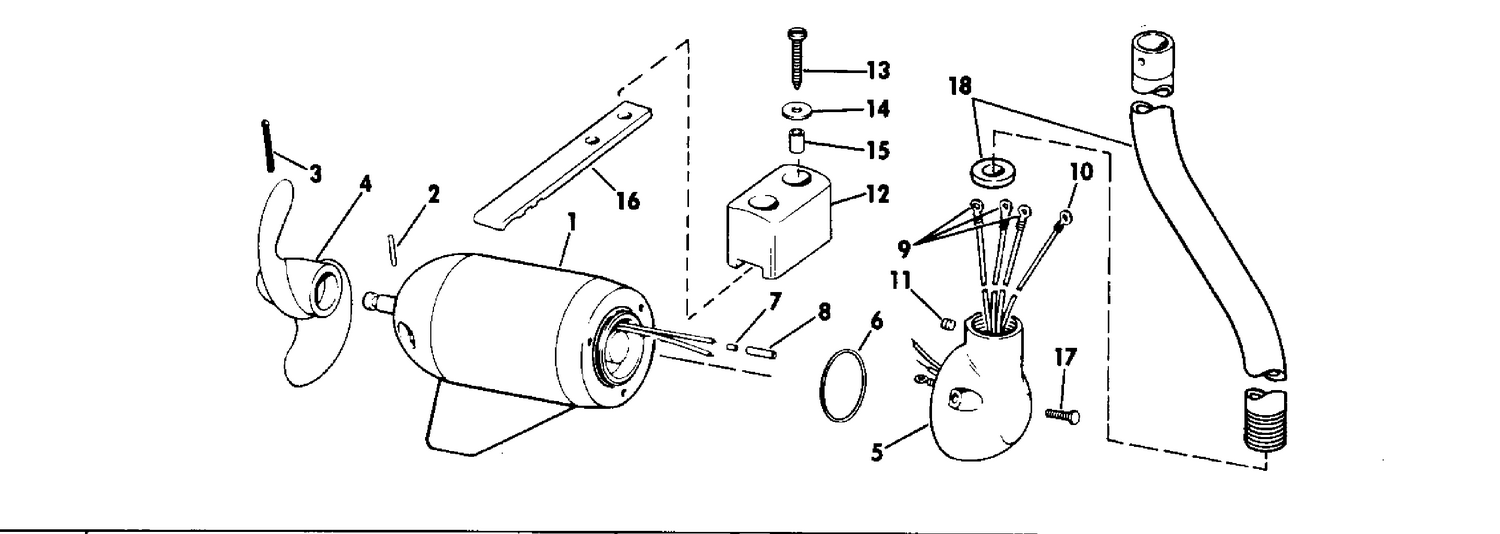

MOTOR AND ADAPTER GROUP/24 VOLT BOW MOUNT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0433611 | ELECTRIC MOTOR ASSY., 24v (includes 21, 22 & 24) This part replaces 0386971. |
| 2 | 0312862 | ROLL PIN, Handle to shaft |
| 3 | 0319658 | COTTER PIN, Prop |
| 4 | 0325185 | PROPELLER |
| 5 | 0391321 | ADAPTOR & O-RING PKG. This part replaces 0387969. |
| 7 | 0320373 | BUTT SPLICE |
| 11 | 0321223 | SET SCREW |
| 12 | 0319660 | REST PAD, Motor |
| 13 | 0121202 | SCREW |
| 14 | 0305940 | WASHER |
| 15 | 0302406 | SLEEVE |
| 16 | 0319778 | STRAP, Motor to rest pad |
| 17 | 0319617 | SCREW, Adaptor to motor |
