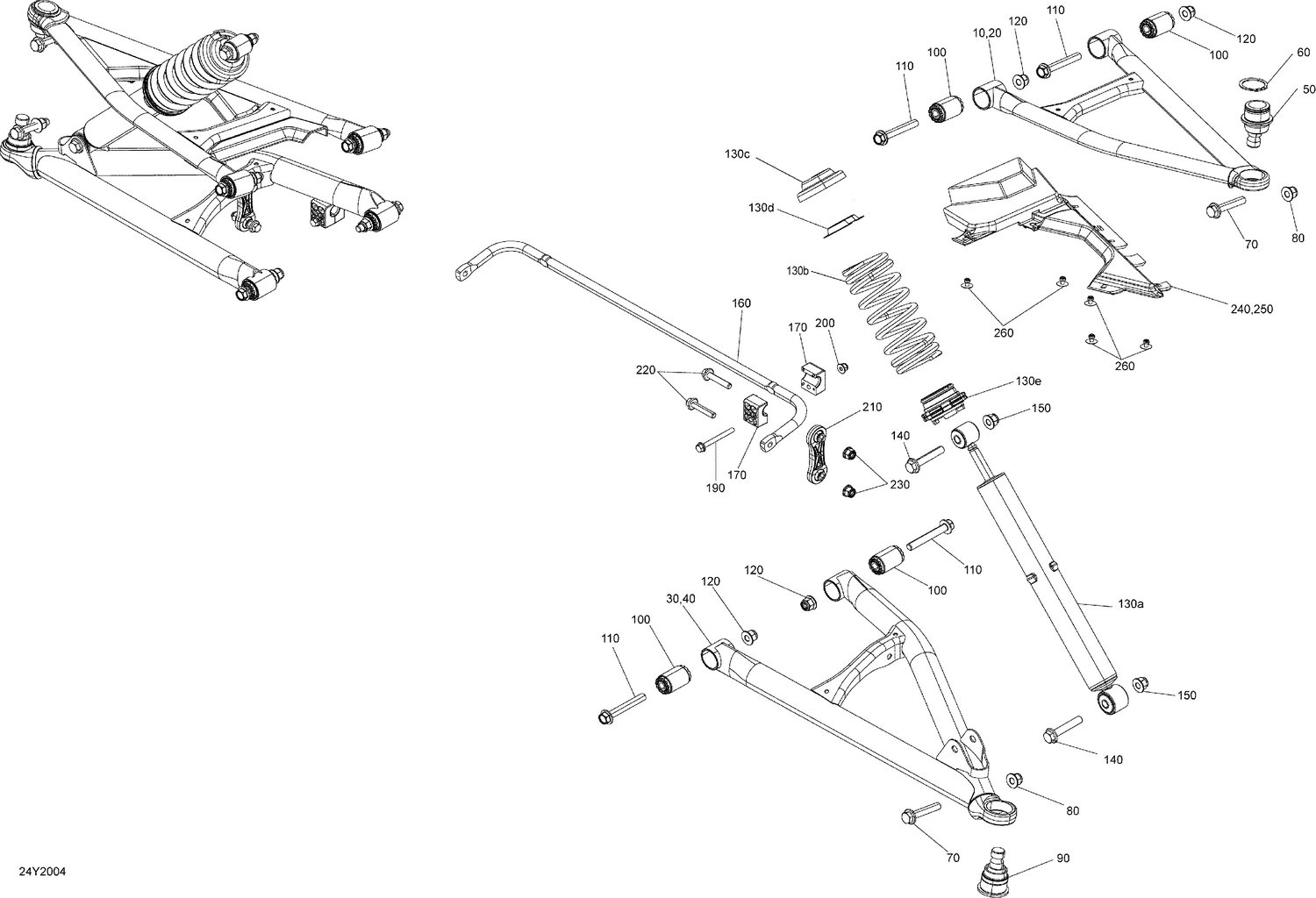

07- Suspension, Front
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706204681 | Carbon Black, LH Upper Suspension Arm This part replaces 706201988. |
| 20 | 706201989 | Carbon Black RH Upper Arm |
| 30 | 706201990 | Carbon Black, LH Lower Suspension Arm |
| 40 | 706201991 | Carbon Black, RH Lower Suspension Arm |
| 50 | 706202507 | Ball Joint |
| 60 | 293370035 | Circlip |
| 70 | 207605554 | Hex. Flange Screw M10 X 55 |
| 80 | 233201466 | Flange Elastic Nut M10 |
| 90 | 706202508 | Ball Joint |
| 100 | 706201519 | Suspension Arm Bushing |
| 110 | 207607056 | Hex. Flange Screw M10 X 70 |
| 120 | 233201466 | Flange Elastic Nut M10 |
| 130a | 706001697 | Shock |
| 130b | 706002451 | Spring |
| 130c | 706200881 | Spring Stopper |
| 130d | 706200785 | Cap |
| 130e | 706002480 | Adjuster Ass'y |
| 140 | 207605554 | Hex. Flange Screw M10 X 55 |
| 150 | 233201466 | Flange Elastic Nut M10 |
| 160 | 706202799 | Sway Bar |
| 170 | 706201429 | Bushing |
| 190 | 250000778 | Hex. Flange Screw M6 X 60 |
| 200 | 233261466 | Hex. Flange Elastic Nut M6 |
| 210 | 706200671 | Tie Rod |
| 220 | 207684054 | Hex. Flange Screw M8 X 40 |
| 230 | 233281464 | Elastic Flange Nut M8 |
| 240 | 706203371 | LH Cable Cap |
| 250 | 706203372 | RH Cable Cap |
