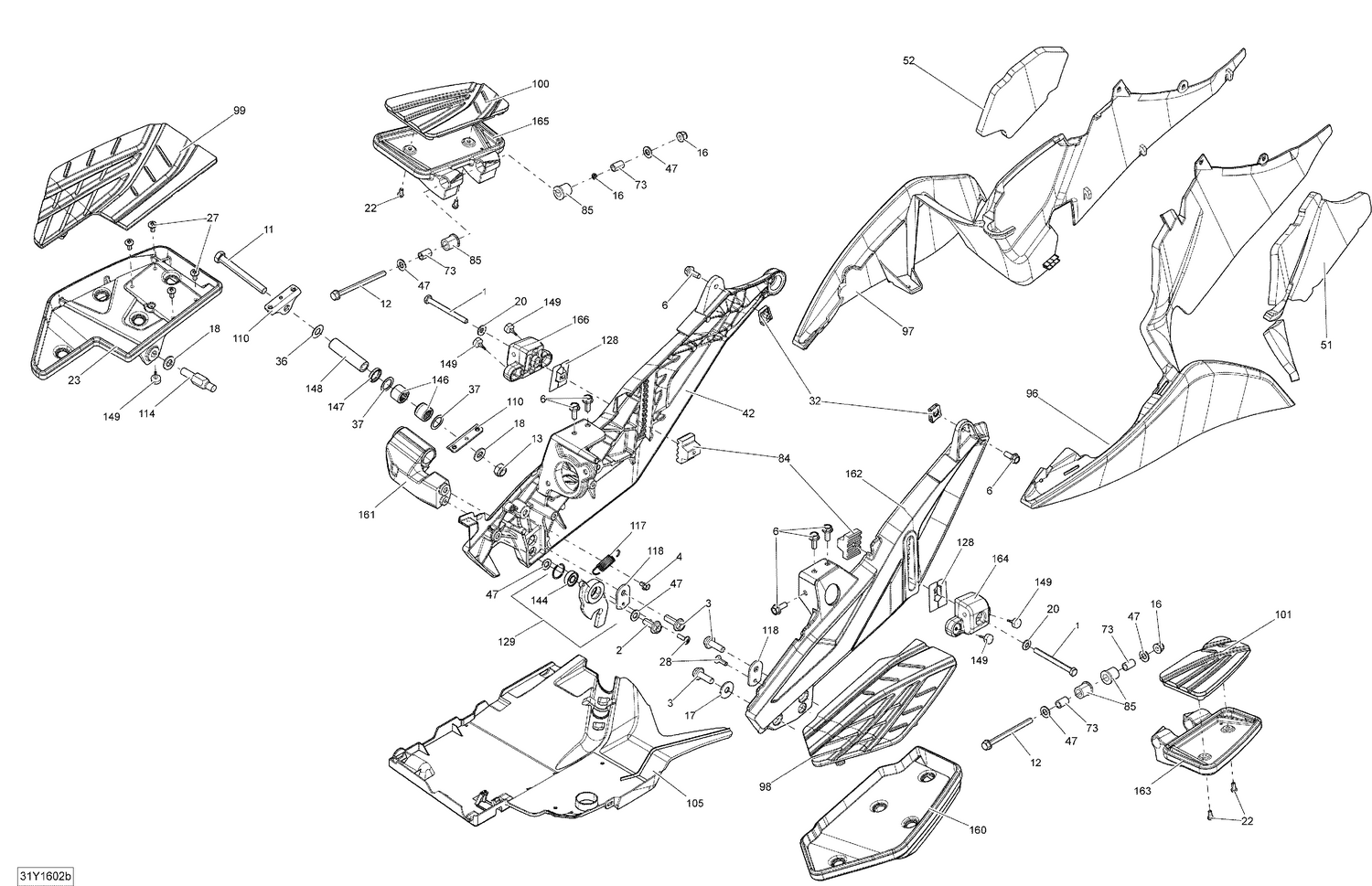

09- Body And Accessories - Footrest
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207189060 | Hex. Screw M8 x 90 |
| 2 | 207502546 | Hex. Flange Screw M10 X 25 |
| 3 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 4 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 6 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 11 | 230020586 | Hexagonal Screw M12 X 105 |
| 12 | 230681034 | Hex. Flange Screw M8 X 110 |
| 13 | 232521416 | Elastic Stop Nut M12 |
| 16 | 233281434 | Hex. Flange Elastic Nut M8 |
| 17 | 234002600 | Flat Washer 10 mm, Stainless |
| 18 | 234021430 | Flat Washer |
| 20 | 234281704 | Spring Washer M8 |
| 22 | 250000099 | Allen Plastite Screw #12 |
| 23 | 705005334 | RH FRONT FOOTREST ASS'Y - Call your local BRP dealership |
| 27 | 250000717 | Torx Head Screw M6 X 16 |
| 28 | 250000722 | Torx Screw M6 X 20 |
| 32 | 250100069 | Panel Nut M8 X 1.25 |
| 36 | 706200281 | Hardened Washer This part replaces 250200086. |
| 37 | 250200136 | Plastic Washer 20MM |
| 40 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 42 | 705007976 | BLACK RH FOOTREST SUPPORT - Call your local BRP dealership |
| 47 | 503183800 | Washer |
| 51 | 518327010 | LH ROCKER PANEL FOAM - Call your local BRP dealership |
| 52 | 518327011 | RH ROCKER PANEL FOAM - Call your local BRP dealership |
| 73 | 705002153 | Bushing |
| 84 | 705003013 | Adjuster Block |
| 85 | 705003018 | Rubber Bushing |
| 96 | 705005266 | LH ROCKER PANEL - Call your local BRP dealership |
| 97 | 705005267 | RH Rocker Panel |
| 98 | 705005329 | LH FRONT RUBBER PAD - Call your local BRP dealership |
| 99 | 705005333 | RH Front Rubber Pad |
| 100 | 705005350 | RH REAR RUBBER PAD - Call your local BRP dealership |
| 101 | 705005351 | LH REAR RUBBER PAD - Call your local BRP dealership |
| 105 | 705005413 | LH DEFLECTOR PANNEL - Call your local BRP dealership |
| 110 | 705005861 | Pivot Bracket |
| 114 | 705006428 | Latch Pin M12 X 30 |
| 117 | 705006533 | Spring |
| 118 | 705006557 | Retaining Plate |
| 128 | 705007473 | Lock Plate |
| 129 | 705008439 | LATCH ASS'Y - Call your local BRP dealership |
| 144 | 705600458 | Bearing |
| 146 | 706000447 | Bearing |
| 147 | 706000448 | Seal, Single Lip ID 19.4 OD 26 |
| 148 | 706000731 | Bushing |
| 149 | 708000759 | Rubber Stopper |
| 160 | 705005330 | LH Front Footrest Ass'y |
| 161 | 705005723 | Pivot Support |
| 162 | 705006796 | LH REAR FOOT SUPPORT - Call your local BRP dealership |
| 163 | 705006798 | LH REAR FOOTREST - Call your local BRP dealership |
| 164 | 705006799 | BLACK LH SLIDING BLOCK - Call your local BRP dealership |
| 165 | 705006800 | Black RH Footrest Support |
