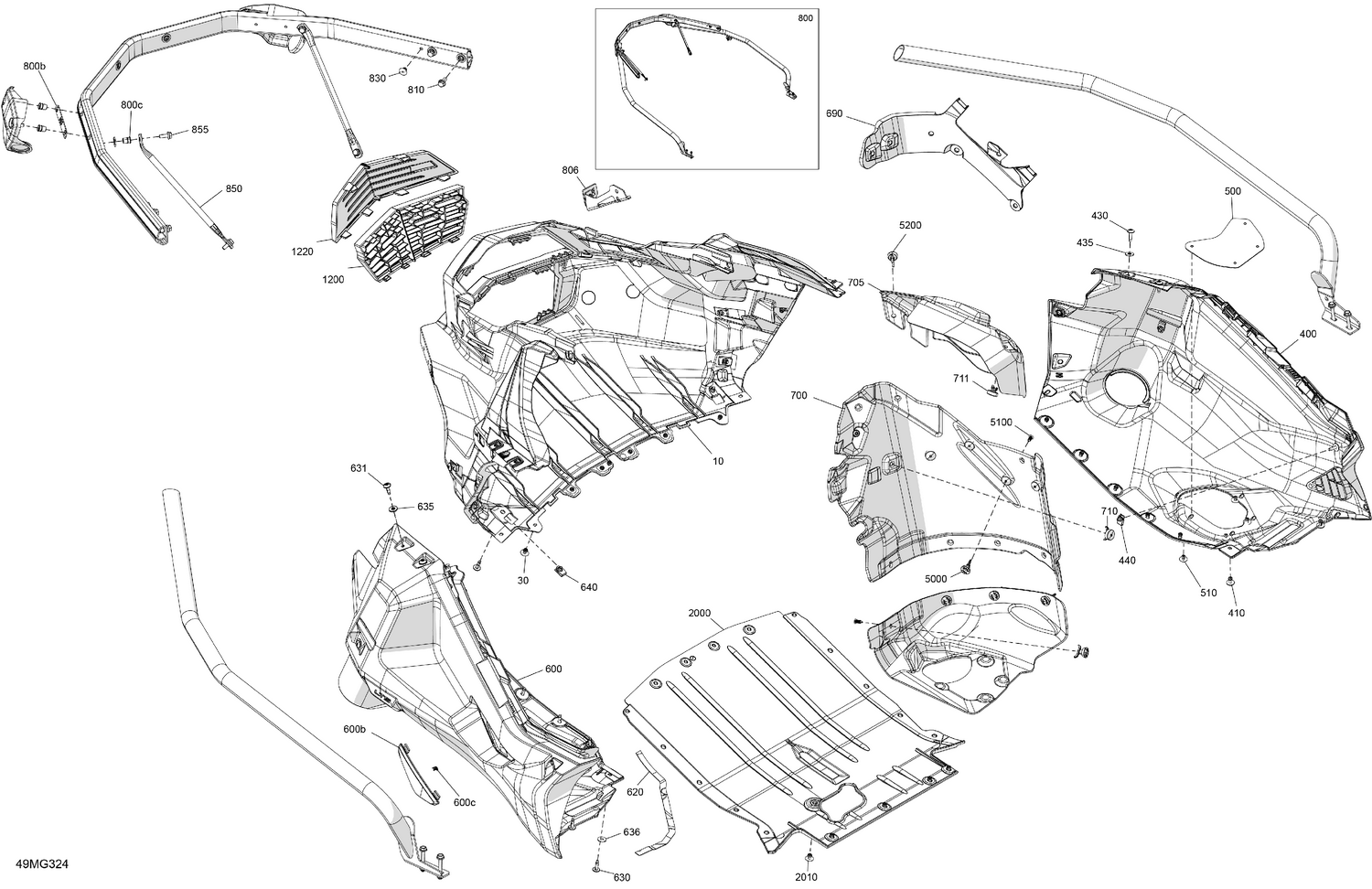

07- Body - Bottom Pan
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502008922 | Deep Black, Front Bottom Pan |
| 30 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 400 | 502008103 | Black Rh Bottom Pan |
| 410 | 293150322 | Black, Rivet Ornit 4.8 X 12 |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 435 | 517307442 | Washer |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 500 | 502007868 | Plate |
| 510 | 293150322 | Black, Rivet Ornit 4.8 X 12 |
| 600b | 502007676 | Bottom Pan Door |
| 600c | 269800431 | Hairpin Cotter |
| 620 | 219704364 | Neoprene Seal (1PAC=3M) |
| 630 | 250001232 | Screw Torx M5 X 20 |
| 631 | 250001232 | Screw Torx M5 X 20 |
| 635 | 517307442 | Washer |
| 636 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 690 | 502008994 | Heat Shield Support |
| 700 | 502009018 | Rear Central Acoustic Panel |
| 705 | 502008869 | Acoustic Panel |
| 710 | 502008752 | Stopper |
| 711 | 502008752 | Stopper |
| 800b | 502007880 | Bumper Trim |
| 800c | 293450398 | Insert |
| 806 | 502008984 | Horn Bracket |
| 810 | 207661644 | Hex. Flange Screw M6 X 16 |
| 830 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 850 | 502007913 | Bumper Reinforcement |
| 855 | 207661644 | Hex. Flange Screw M6 X 16 |
| 1200 | 502007979 | Lower Prefilter Grille |
| 1220 | 502008833 | Upper Prefilter Grille |
| 2000 | 502007906 | Under Skid Plate |
| 2010 | 293150321 | Black, Rivet Ornit 4.8 X 14 |
| 5000 | 502008753 | Stopper |
| 5100 | 293730062 | Dart |
