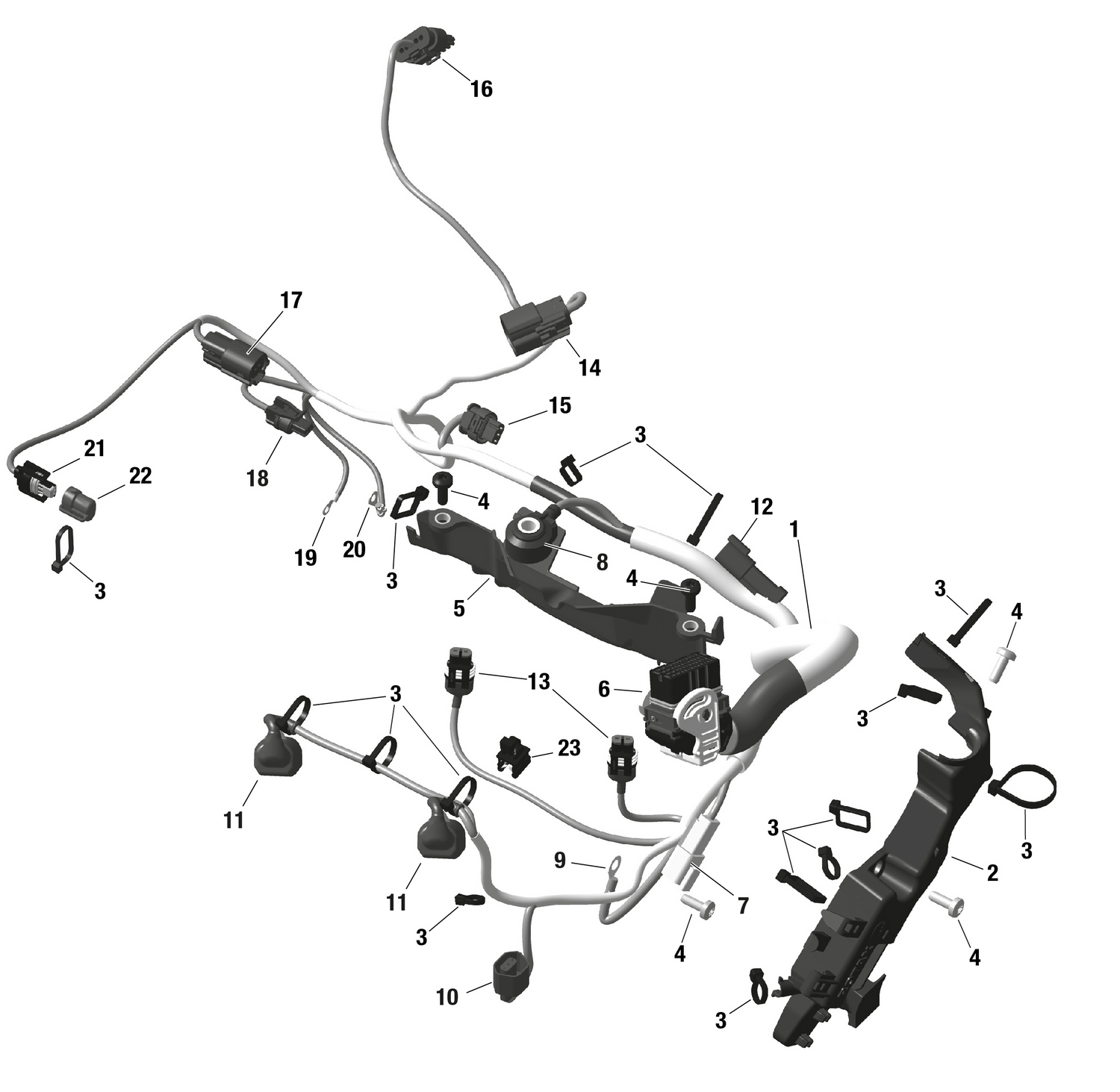

01- ROTAX - Engine Harness And Electronic Module
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420864454 | Engine Harness |
| 2 | 420260155 | Harness Support |
| 3 | 420651817 | Locking Tie 175 X 4 MM |
| 4 | 420640324 | Torx Screw M6 X 16 |
| 5 | 420260159 | Harness Support |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 409206900 | Male Housing, 2 Circuits |
| 8 | XXX | Not Available As Spare Parts |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 415130195 | Connector |
| 11 | 515176129 | Female Housing |
| 12 | 409206900 | Male Housing, 2 Circuits |
| 13 | 409209500 | Female Housing, 2 Circuits |
| 14 | 515178202 | Connector Coil |
| 15 | XXX | Not Available As Spare Parts |
| 16 | XXX | Not Available As Spare Parts |
| 17 | 710005827 | Connector 2 Pins with CPA |
| 18 | 278001113 | Male Connector, 2 Circuits |
| 19 | XXX | Not Available As Spare Parts |
| 20 | XXX | Not Available As Spare Parts |
| 21 | 515176890 | Female Terminal Housing |
| 22 | 420860455 | Connector Cap |
