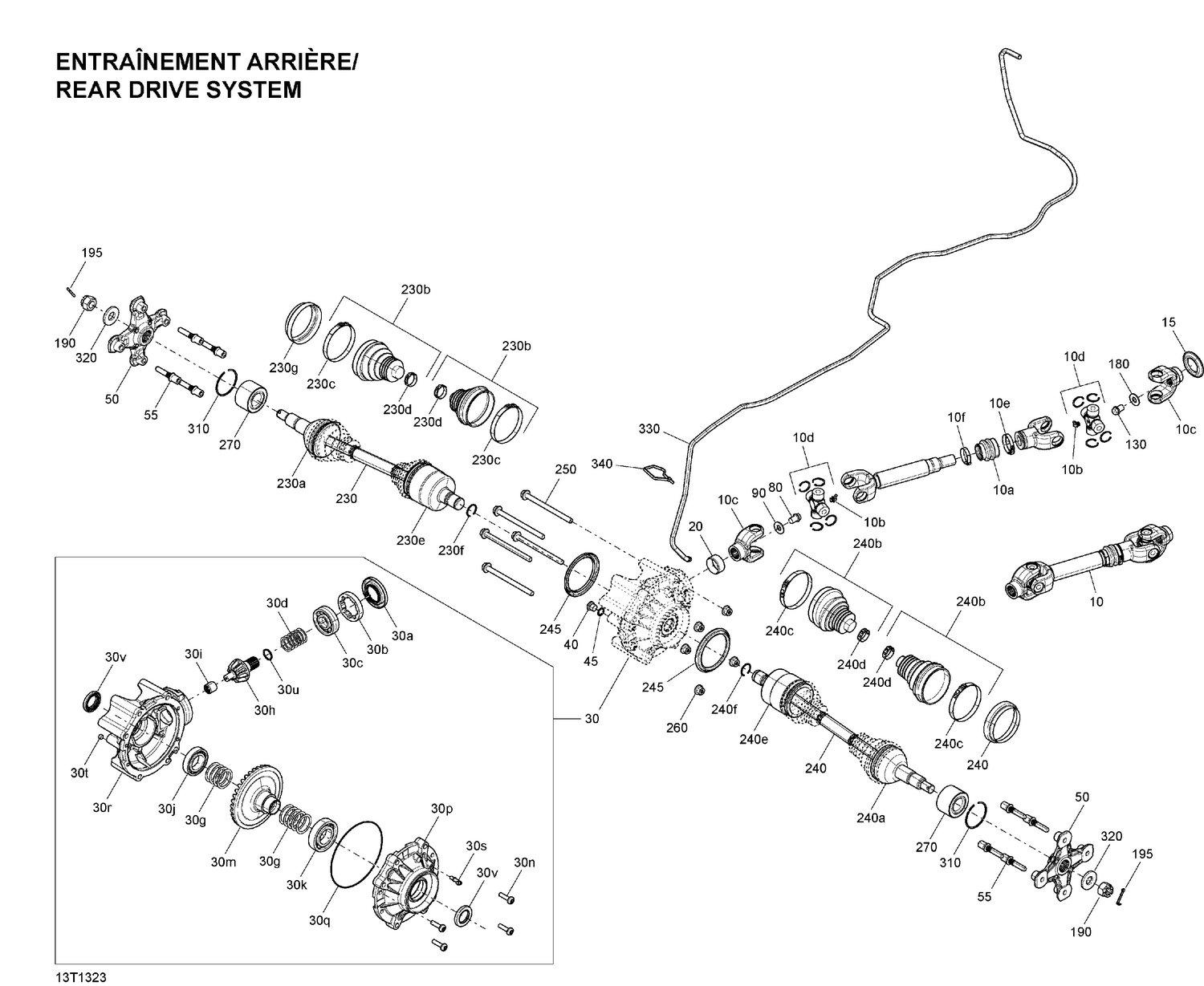

08- Drive System, Rear
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10b | 715900184 | Grease Fitting |
| 10c | 715900101 | Fixe Yoke |
| 10d | 715900326 | Universal Joint This part replaces 715500371. |
| 10e | 509000045 | Oetiker Gear Clamp 36.1MM |
| 10f | 293650138 | Oetiker Gear Clamp 44.0MM |
| 15 | 705501123 | Protector |
| 20 | 705400036 | Wear Ring |
| 30a | 705401481 | Oil Seal This part replaces 705400027. |
| 30b | 705502059 | Nut This part replaces 705500987. |
| 30c | 705500260 | Ball Bearing |
| 30d | 705500075 | Pinion Gear Shim .022" |
| 30d | 705501162 | Pinion Gear Shim |
| 30d | 705502061 | Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 30g | 705502060 | Differential Shim 0.02 mm This part replaces 703500548. |
| 30h | 703500873 | Gear-10/36 Too Kit This part replaces 705501570. |
| 30i | 705501408 | Needle Bearing |
| 30j | 705502737 | Ball Bearing This part replaces 705500749. |
| 30k | 705502738 | Ball Bearing This part replaces 705501389. |
| 30m | 703500873 | Gear-10/36 Too Kit This part replaces 705501403. |
| 30n | 705401601 | Screw This part replaces 705500892. |
| 30p | 705501507 | REAR DIFFERENTIAL COVER - Call your local BRP dealership |
| 30q | 705500265 | Seal |
| 30r | 705501420 | PINION REAR COVER - Call your local BRP dealership |
| 30s | 705500893 | VENT VALVE - Call your local BRP dealership |
| 30t | 705500894 | Drain Plug |
| 30u | 705500267 | O-Ring |
| 30v | 705501996 | Oil Seal This part replaces 705501196. |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 80 | 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 90 | 250200102 | Flat Washer M12 |
| 130 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 180 | 250200102 | Flat Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 195 | 250400036 | Cotter Pin |
| 230a | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 230c | 715900241 | Oetiker Clamp, 82.1 mm |
| 230d | 715900242 | Oetiker Clamp, 27.3 mm |
| 230e | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 230f | 705501781 | Circlip |
| 230g | 705501842 | Joint Protector |
| 240a | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 240c | 715900241 | Oetiker Clamp, 82.1 mm |
| 240d | 715900242 | Oetiker Clamp, 27.3 mm |
| 240e | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 240f | 705501781 | Circlip |
| 240g | 705501842 | Joint Protector |
| 245 | 705501124 | Wear Ring |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 This part replaces 250000508. |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing This part replaces 293350040. |
| 310 | 293370019 | Circlip |
| 320 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 330 | 219704410 | Polyurethane Hose 10000Mm Long |
