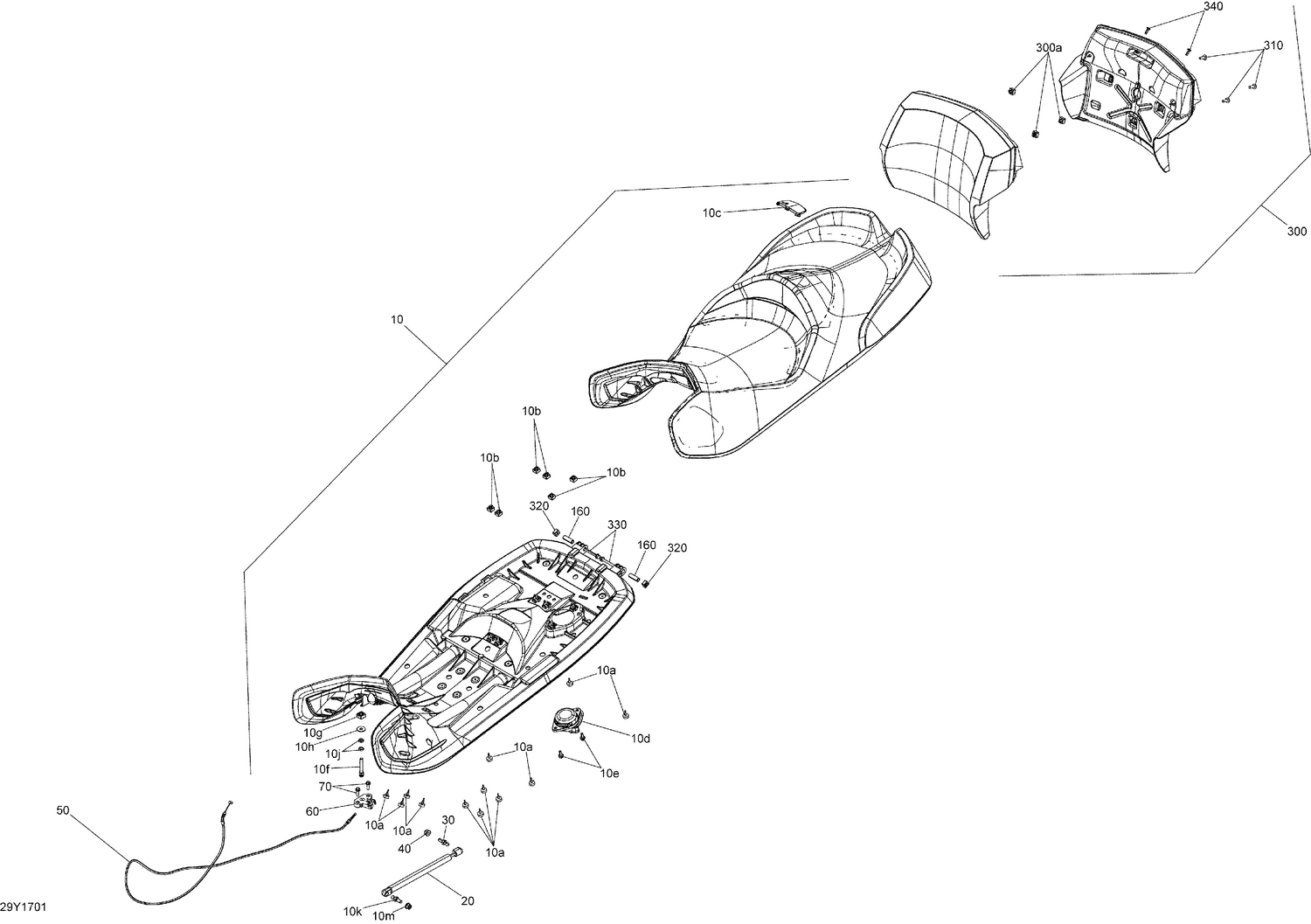

09- Seat - All Models
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 708000759 | Rubber Stopper |
| 10b | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 10c | 708001633 | Black Cap |
| 10d | 710008103 | Passenger Detection Switch This part replaces 710001346. |
| 10e | 207661644 | Hex. Flange Screw M6 X 16 |
| 10f | 705002223 | Lug |
| 10g | 233281414 | Hex. Flange Elastic Nut M8 |
| 10h | 234082410 | Flat Washer 8 mm |
| 10j | 232180600 | Hex. Jam Nut M8 |
| 10k | 250300039 | Ball Head Stud |
| 10m | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 708000658 | Gaz Shock |
| 30 | 250300039 | Ball Head Stud |
| 40 | 233281414 | Hex. Flange Elastic Nut M8 |
| 50 | 708001743 | Seat Cable |
| 60 | 705007379 | Latch |
| 70 | 210262050 | Hexagonal Head Screw |
| 160 | 708000664 | Spacer |
| 300a | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 310 | 250000488 | Torx Truss Screw M6 X 20 |
| 320 | 269500725 | M6 Nut Housing Ass'y |
| 330 | 250000778 | Hex. Flange Screw M6 X 60 |
