Home / BRP / STERN DRIVE / 1995 / 7.40 / 744DPHUB 1995 / UPPER GEAR HOUSING

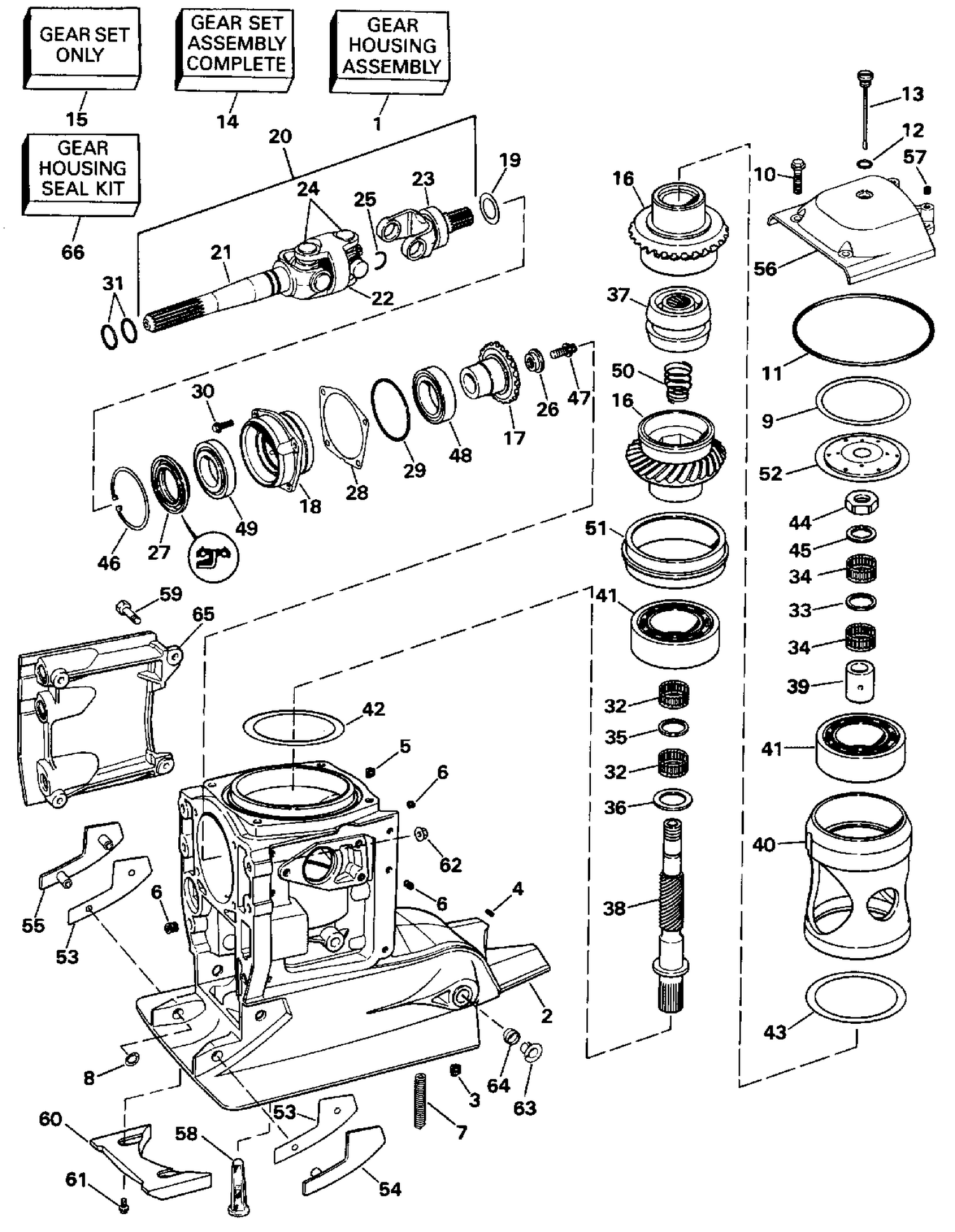

UPPER GEAR HOUSING

UPPER GEAR HOUSING

Parts (88)

RefPart NumberDescription
1 3850751 GEAR HOUSING ASSEMBLY
2 3854915 GEAR HOUSING & INSERTS
3 3852541 INSERT, 7/16 -14
4 3852567 INSERT
5 3852953 INSERT, Exhaust pipe
6 0910901 INSERT This part replaces 3852513.
7 3853387 GASKET, Cylinder head
8 0910953 RETAINER RING, Thrust plate This part replaces 3852516.
9 3852906 SHIM, Upper cover, 0.004 in.
9 3852907 SHIM, Upper cover, 0.003 in.
9 3852908 SHIM, Upper cover, 0.005 in.
9 3852909 SHIM, Upper cover, 0.010 in.
9 3852932 SHIM, Upper cover, 0.031 in.
10 3855472 SCREW, Pipe to gimbal This part replaces 3852898.
11 3852900 O-RING, Top cover
13 3852893 INDICATOR Oil fill
14 3854052 GEAR SET ASSEMBLY
15 3850989 GEAR SET, Pinion & drive gears
16 DRIVE GEAR
17 PINION GEAR
18 3852903 BEARING CARRIER, Pinion
19 3852914 SHIM, Pinion, preload, 0.003 in.
19 3852915 SHIM, Pinion, preload, 0.004 in.
19 3852916 SHIM, Pinion, preload, 0.005 in.
19 3852917 SHIM, Pinion, preload, 0.010 in.
20 3853937 U-JOINT ASSEMBLY
21 0912212 SHAFT, Yoke This part replaces 3850815.
22 0912213 DOUBLE CENTER This part replaces 3850813.
23 0914646 STUB, Yoke This part replaces 3854563.
24 3850812 U-JOINT
25 3850757 RETAINER, U-joint
26 3852897 RETAINER, Pinion gear
27 3852901 SEAL, U-joint to bearing carrier
28 3852910 SHIM, Bearing carrier, 0.004 in.
28 3852911 SHIM, Bearing carrier, 0.003 in.
28 3852912 SHIM, Bearing carrier, 0.005 in.
28 3852913 SHIM, Bearing carrier, 0.010 in.
30 0341013 SCREW, Cover This part replaces 3852454.
31 3852565 O-RING, U-joint
32 3853942 BEARING, Lower drive gear
33 3852966 SPACER, Lower drive gear bearing
34 3853942 BEARING, Lower drive gear
35 3852966 SPACER, Lower drive gear bearing
36 3852967 WASHER, Driveshaft to lower drive gear
37 3853450 CLUTCH CONE
38 0987747 DRIVESHAFT & BUSHING, Upper
39 3853656 BUSHING, Bearing
40 3854900 HOUSING, Drive gear
41 3853938 BEARING, Drive gear
42 3852938 SHIM, Drive gear hsg., 0.010 in.
42 3852939 SHIM, Drive gear hsg., 0.003 in.
42 3852940 SHIM, Drive gear hsg., 0.004 in.
42 3852941 SHIM, Drive gear hsg., 0.005 in.
43 3852934 SHIM, Bearing carrier, 0.010 in.
43 3852935 SHIM, Bearing carrier, 0.003 in.
43 3852936 SHIM, Bearing carrier, 0.004 in.
43 3852937 SHIM, Bearing carrier, 0.005 in.
44 3857797 Nut & Tag Ay This part replaces 3853440.
45 3853441 SHIM, Upper driveshaft, 0.071 in.
45 3853442 SHIM, Upper driveshaft, 0.075 in.
45 3853443 SHIM, Upper driveshaft, 0.079 in.
45 3853444 SHIM, Upper driveshaft, 0.083 in.
45 3853445 SHIM, Upper driveshaft, 0.087 in.
45 3853446 SHIM, Upper driveshaft, 0.091 in.
45 3853447 SHIM, Upper driveshaft, 0.095 in.
45 3853448 SHIM, Upper driveshaft, 0.099 in.
45 3853459 SHIM, Upper driveshaft, 0.063 in.
45 3853460 SHIM, Upper driveshaft, 0.067 in.
46 3853301 RETAINING RING, Seal
47 3852896 SCREW, Pinion gear retainer
48 3854636 BEARING, Pinion to inner carrier
49 3854637 BEARING, Pinion to outer carrier
50 3853366 SPRING, Clutchcone to shaft
51 3852943 BEARING CARRIER, Lower
52 3852899 DEFLECTOR, Oil
53 3852918 SHIM, Thrust plate, 0.015 in.
54 3852919 PLATE, Thrust, port
55 3852920 PLATE, Thrust, starboard
56 3854469 COVER, Upper gearcase, top
57 0910901 INSERT This part replaces 3852513.
58 3854021 Screen Ay
59 3852568 SCREW, Cover
60 3854061 ANODE, Gear housing, front
61 3853428 SCREW, Anchor bracket
62 3853329 LOCKNUT, Transom plate
63 3853423 BUSHING, Pivot pin
64 3853424 GROMMET, Pivot pin
65 3852999 COVER, Gearcase, starboard
