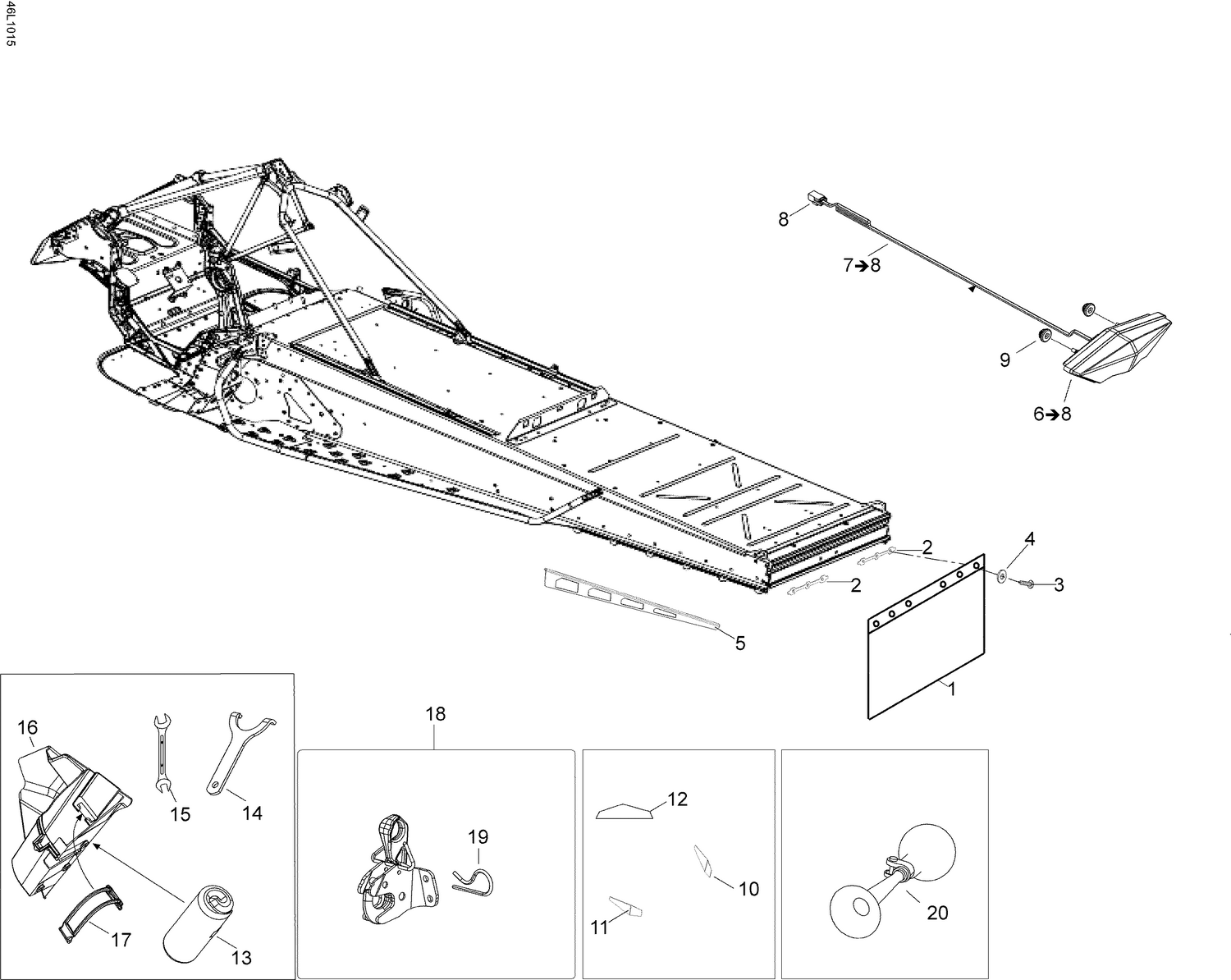

| Ref | Part Number | Description |
|---|
| 1 |
520000857 |
SNOW GUARD - Call your local BRP dealership |
| 2 |
520000847 |
THREADED PLATE - Call your local BRP dealership |
| 3 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
| 4 |
250200025 |
Washer M5 |
| 5 |
520000693 |
RH Protector |
| 5 |
520000694 |
LH Protector |
| 6 |
520000692 |
Rear light |
| 7 |
520000849 |
Rear Wiring Harness |
| 8 |
515175494 |
Male Housing, 3 Circuits |
| 9 |
40611 |
Screw Plastofast |
| 10 |
520001600 |
Yellow RH Reflector This part replaces 520000843. |
| 11 |
520001601 |
Yellow LH Reflector This part replaces 520000844. |
| 12 |
705002423 |
Front Lateral Reflector, Amber |
| 13 |
529000065 |
Tool Kit This part replaces 529000050. |
| 14 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 15 |
34017 |
Wrench |
| 16 |
520000720 |
TOOL KIT RACK - Call your local BRP dealership |
| 17 |
520000528 |
Latch |
| 18 |
520001774 |
Hitch Ass'y This part replaces 520000796. |
| 19 |
41029 |
Hair pin |
