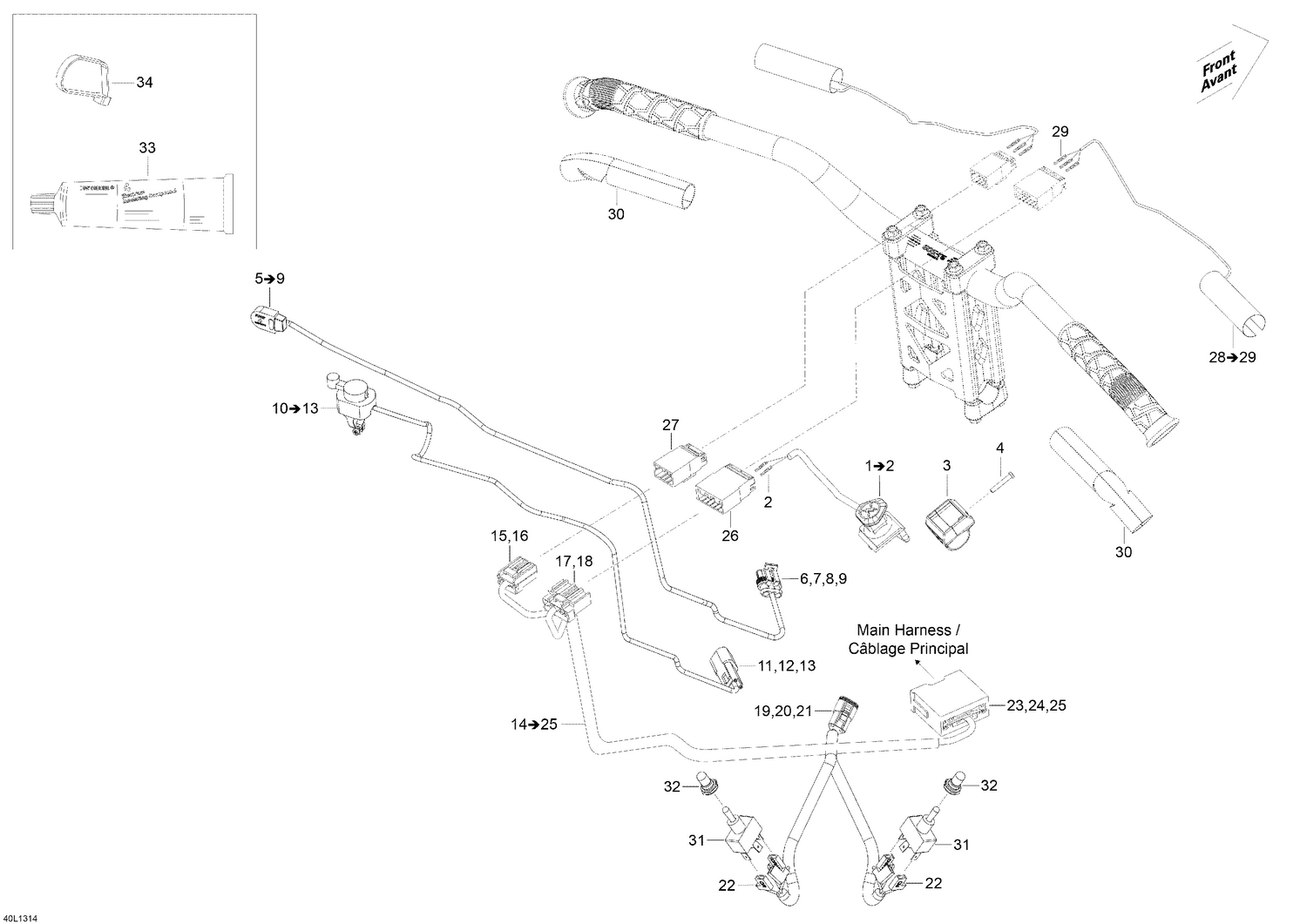

10- Steering Wiring Harness
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 515175232 | Male Terminal |
| 3 | 515177310 | Emergency Stop Switch Support This part replaces 515176825. |
| 4 | 250000263 | Torx Screw #8-18 |
| 6 | 409209600 | Housing |
| 7 | 278001014 | Female Terminal |
| 8 | 278001013 | Wire Seal |
| 9 | 409013700 | Plug |
| 11 | 515175666 | Housing |
| 12 | 278000631 | Male Terminal |
| 13 | 409207600 | Lock |
| 15 | 515175543 | Housing |
| 16 | 515175231 | Female Terminal |
| 17 | 515175819 | Housing |
| 18 | 515175231 | Female Terminal |
| 19 | 278002375 | CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership This part replaces 409207400. |
| 20 | 278000632 | Female Terminal |
| 21 | 409207200 | Lock |
| 22 | 409010400 | Housing |
| 23 | 515175351 | MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership |
| 24 | 515175232 | Male Terminal |
| 25 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 26 | 515175817 | Male Terminal Housing, 4 Circuits |
| 27 | 515175662 | Male Terminal Housing, 6 Circuits |
| 29 | 515175232 | Male Terminal |
| 30 | 506152611 | Isolant This part replaces 506152540. |
| 31 | 410107300 | Switch Grip |
| 32 | 515175281 | Switch Cover |
| 33 | 619600021 | Loctite 8104 (Dielectric Grease), 75ml |
