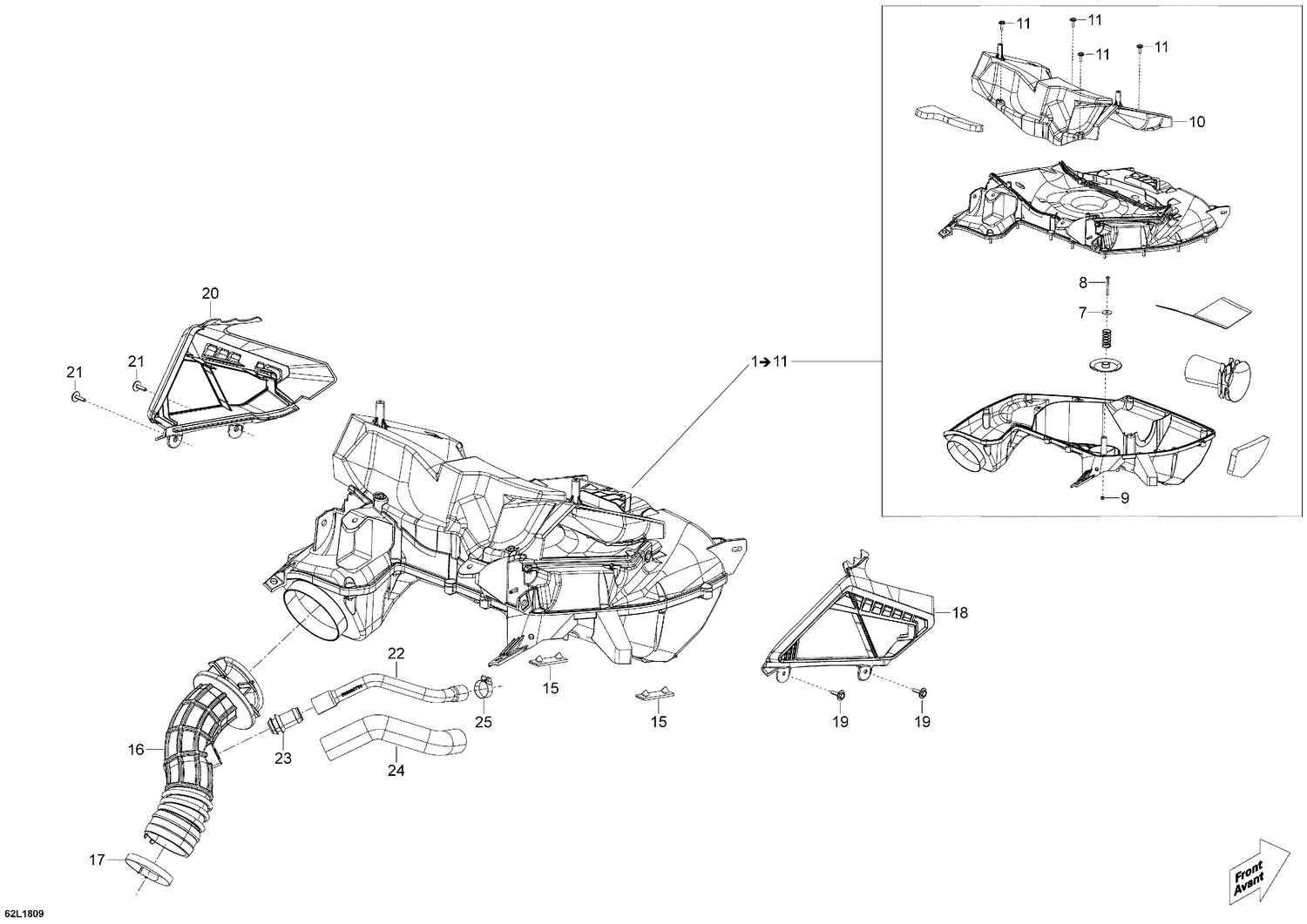

02- Air Intake 600 ACE - REX-2
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 224060201 | Flat Washer |
| 8 | 205444086 | Socket Head Screw M4 X 40 |
| 9 | 232541414 | Elastic Stop Nut M4 |
| 10 | 508000732 | Air Duct |
| 11 | 250000725 | Screw M4 X 16 |
| 15 | 508000744 | Stopper |
| 16 | 508000827 | Intake Hose |
| 17 | 293650229 | Gemi Clamp |
| 18 | 508000730 | Air Filter RH |
| 19 | 250000725 | Screw M4 X 16 |
| 20 | 508000731 | Air Filter LH |
| 21 | 250000725 | Screw M4 X 16 |
| 22 | 508000774 | Formed Vent Hose |
| 23 | 273000234 | Breather |
| 24 | 508000648 | Insulating Tube |
