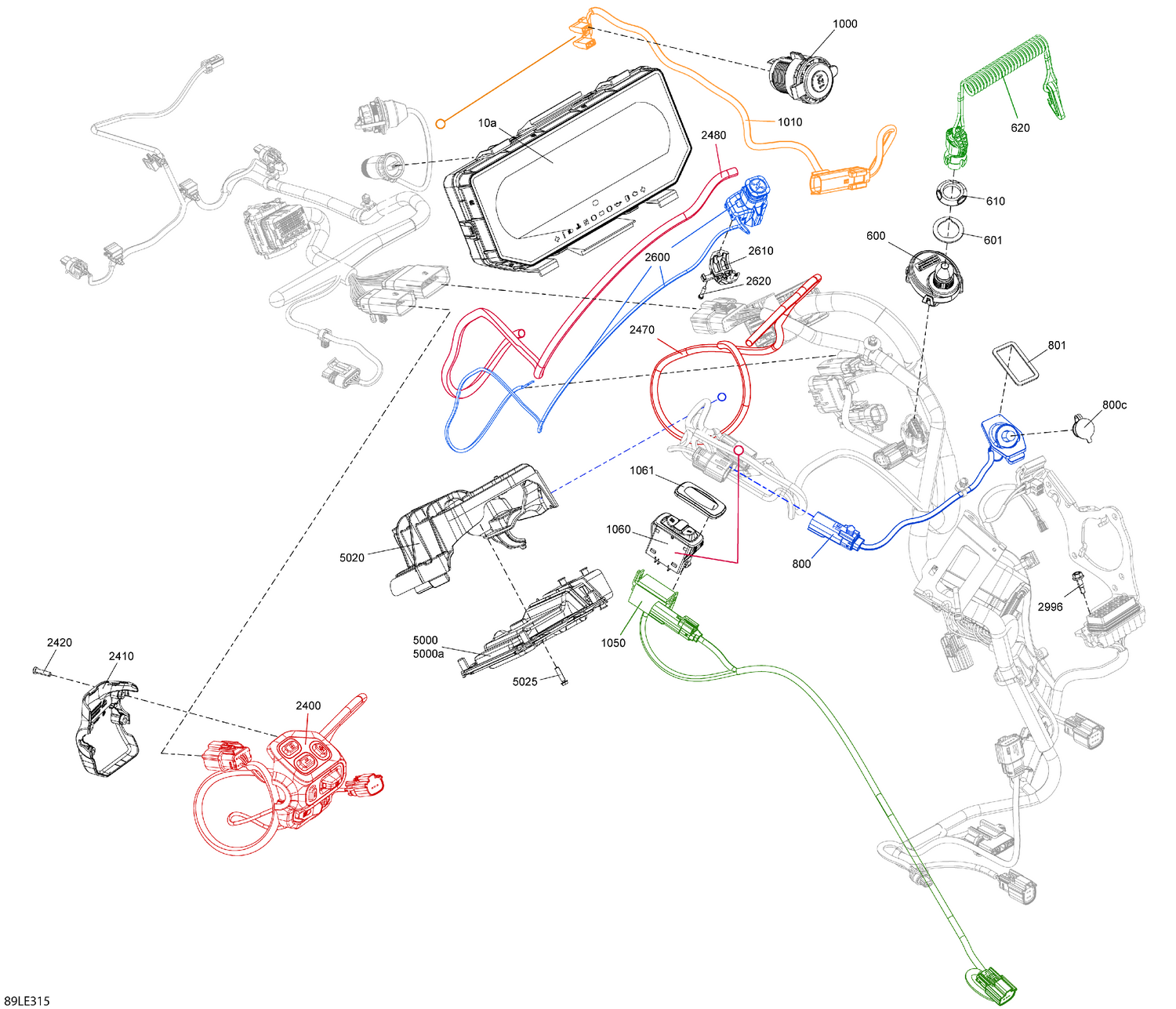

08- Electric - Upper Section
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 515179828 | Multifunction Full Size Mono Gauge |
| 600 | 710008832 | Dess Can Terminal |
| 601 | 513034206 | Self Adhesive Weather Strip |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178288 | Key |
| 800c | 572103300 | Cap |
| 801 | 513034207 | Self Adhesive Weather Strip |
| 1000 | 219400510 | USB Outlet |
| 1010 | 515178190 | Harness |
| 1050 | 515178608 | Seat Wiring Harness |
| 1060 | 515179490 | Heated Seat Switch |
| 1061 | 515179778 | Boot |
| 2400 | 515179677 | LH Front Multifunction Switch |
| 2410 | 515179437 | Switch Cover |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 2996 | 250000911 | Hex. Flange Screw M5 X 16 |
| 5000a | 420464172 | ECM Module |
| 5020 | 512061397 | Module Support |
