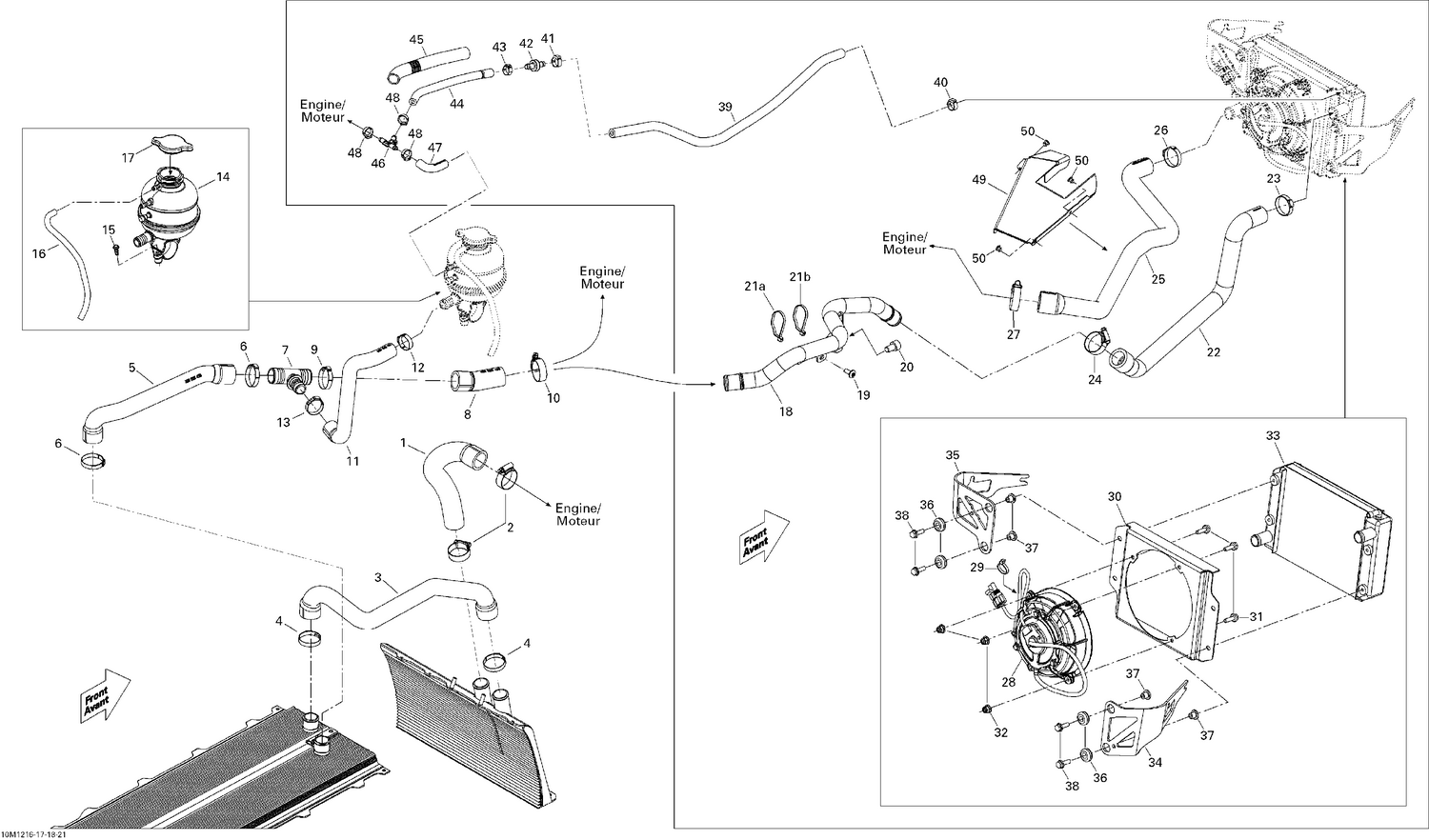

01- Cooling System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000440 | Outlet Hose |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000370 | RADIATOR HOSE - Call your local BRP dealership |
| 4 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 5 | 509000439 | Radiator Hose |
| 6 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 7 | 509000372 | T-Fitting |
| 8 | 509000438 | Radiator Hose |
| 9 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 10 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 11 | 509000441 | Hose |
| 12 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 13 | 293650099 | Crimp Clamp |
| 14 | 509000421 | Coolant Tank |
| 15 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 16 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 17 | 509000180 | Radiator Pressure Cap |
| 18 | 509000825 | WATER PIPE - Call your local BRP dealership |
| 19 | 250000223 | Torx Screw M6 X 16 |
| 20 | 205501644 | Socket Screw M10 X 16 |
| 21a | 414115200 | Tie-Rap 180 mm |
| 21b | 414115200 | Tie-Rap 180 mm |
| 22 | 509000832 | INLET HOSE - Call your local BRP dealership |
| 23 | 293650165 | Oetiker Gear Clamp |
| 24 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 25 | 509000753 | OUTLET HOSE - Call your local BRP dealership |
| 26 | 293650165 | Oetiker Gear Clamp |
| 27 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 28 | 709200573 | Fan This part replaces 709200230. |
| 29 | 414115200 | Tie-Rap 180 mm |
| 30 | 509000714 | Fan Support |
| 31 | 207662044 | Hex. Flange Screw M6 X 20 |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 33 | 509000756 | Radiator |
| 34 | 509000935 | RH RADIATOR SUPPORT - Call your local BRP dealership This part replaces 509000720. |
| 35 | 509000936 | LH RADIATOR SUPPORT - Call your local BRP dealership This part replaces 509000833. |
| 36 | 709000582 | Grommet This part replaces 293720053. |
| 37 | 293900100 | Bushing |
| 38 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 39 | 219704420 | Was 509000407 Hose 8 mm |
| 40 | 293650140 | Oetiker Clamp |
| 41 | 293650053 | Crimp Clamp |
| 42 | 509000153 | Check Valve |
| 43 | 293650125 | Oetiker Clamp |
| 44 | 509001069 | Hose-formed This part replaces 509000765. |
| 45 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 46 | 293710140 | Y-Fitting |
| 47 | 509001070 | Hose This part replaces 509000776. |
| 48 | 293650046 | Oetiker Clamp |
| 49 | 509000839 | HEAT DEFLECTOR - Call your local BRP dealership |
