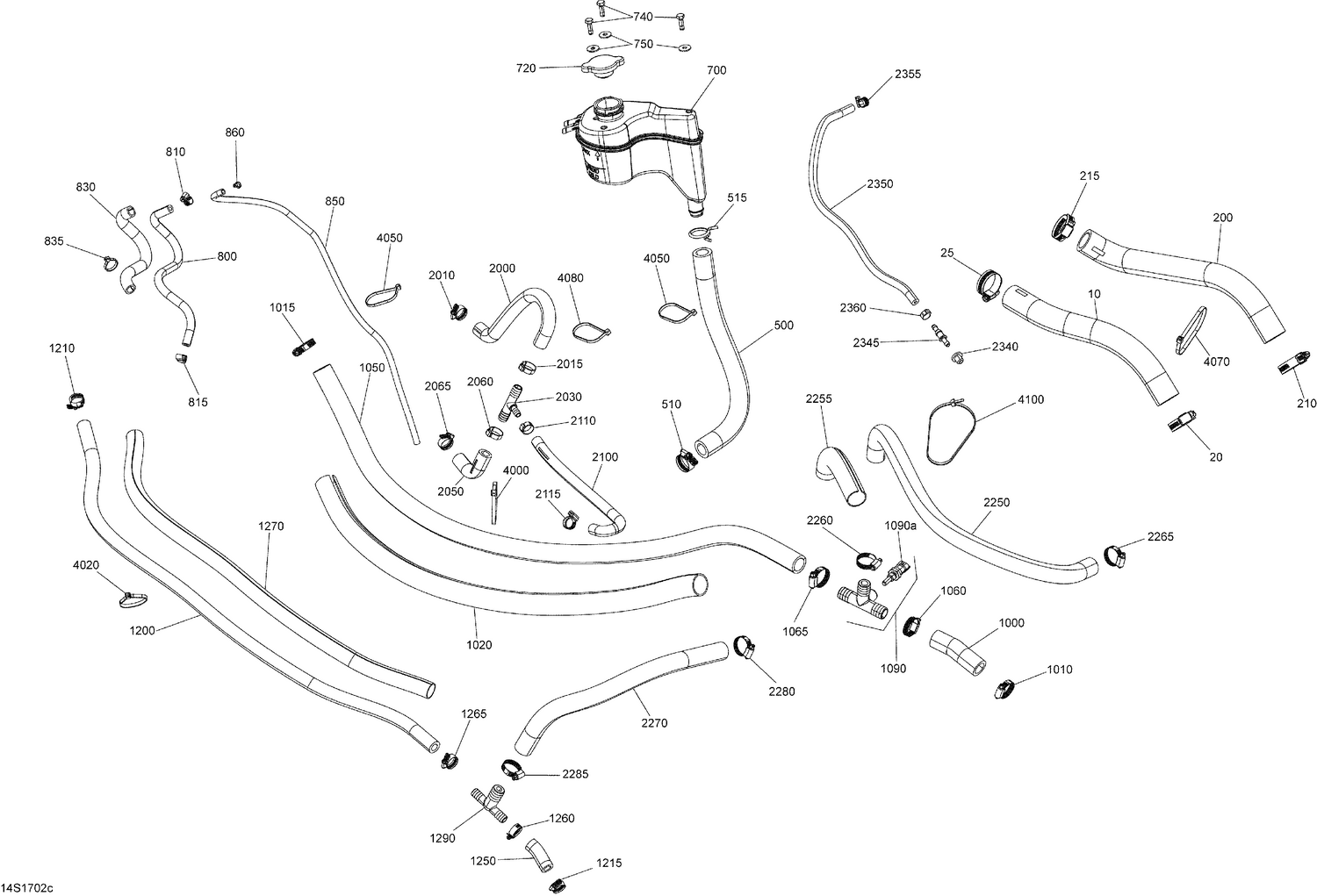

01- Cooling System - 260
Parts (63)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000241 | Radiator Hose |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 200 | 276000491 | Radiator Hose This part replaces 276000240. |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 500 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 510 | 293650019 | Tridon Gear Clamp |
| 515 | 293650115 | Spring Clamp |
| 700 | 276000265 | Coolant Tank |
| 720 | 276000100 | Pressure Cap |
| 740 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 750 | 234062600 | Flat Washer M6, Stainless |
| 800 | 219704362 | Was 276000394 Hose 6.4 mm |
| 810 | 293650170 | Tridon Gear Clamp |
| 815 | 293650170 | Tridon Gear Clamp |
| 830 | 219704400 | Was 409901800 Tubing (13 mm) |
| 835 | 293750001 | Tie Wrap 94 mm |
| 850 | 219704410 | Polyurethane Hose 10000Mm Long |
| 860 | 293750001 | Tie Wrap 94 mm |
| 1000 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 1010 | 293650051 | Tridon Gear Clamp |
| 1015 | 293650051 | Tridon Gear Clamp |
| 1020 | 219704402 | Tubing 25 MM 1000MM Long |
| 1050 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 1060 | 293650051 | Tridon Gear Clamp |
| 1065 | 293650051 | Tridon Gear Clamp |
| 1090a | 278002895 | Temperature Sensor |
| 1200 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1210 | 293650172 | Tridon Gear Clamp |
| 1215 | 293650172 | Tridon Gear Clamp |
| 1250 | 219704394 | Was 276000001 Hose 12.5 mm |
| 1260 | 293650172 | Tridon Gear Clamp |
| 1265 | 293650172 | Tridon Gear Clamp |
| 1270 | 219704423 | Was 515175319 Tubing 22 mm |
| 1290 | 293710132 | T-Fitting |
| 2000 | 276000484 | Hose, Bypass Upper This part replaces 276000244. |
| 2010 | 293650172 | Tridon Gear Clamp |
| 2015 | 293650012 | Oetiker Clamp |
| 2030 | 293710116 | T-Fitting |
| 2050 | 276000455 | Hose, Bypass Lower This part replaces 276000245. |
| 2060 | 293650012 | Oetiker Clamp |
| 2065 | 293650172 | Tridon Gear Clamp |
| 2100 | 276000246 | Formed Hose |
| 2110 | 293650030 | Oetiker Clamp |
| 2115 | 293650171 | Tridon Gear Clamp |
| 2250 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 2255 | 219704402 | Tubing 25 MM 1000MM Long |
| 2260 | 293650051 | Tridon Gear Clamp |
| 2265 | 293650051 | Tridon Gear Clamp |
| 2270 | 219704361 | Hose 19.0Mm. 2000Mm Long |
| 2280 | 293650051 | Tridon Gear Clamp |
| 2285 | 293650051 | Tridon Gear Clamp |
| 2340 | 293720029 | Grommet |
| 2345 | 414518500 | Male Connector |
| 2350 | 219704362 | Was 276000394 Hose 6.4 mm |
| 2355 | 293650170 | Tridon Gear Clamp |
| 2360 | 293650025 | Oetiker Gear Clamp |
| 4000 | 293750008 | Tie Wrap 368 mm |
| 4020 | 293750008 | Tie Wrap 368 mm |
| 4050 | 414115200 | Tie-Rap 180 mm |
| 4070 | 293750008 | Tie Wrap 368 mm |
| 4080 | 293750008 | Tie Wrap 368 mm |
