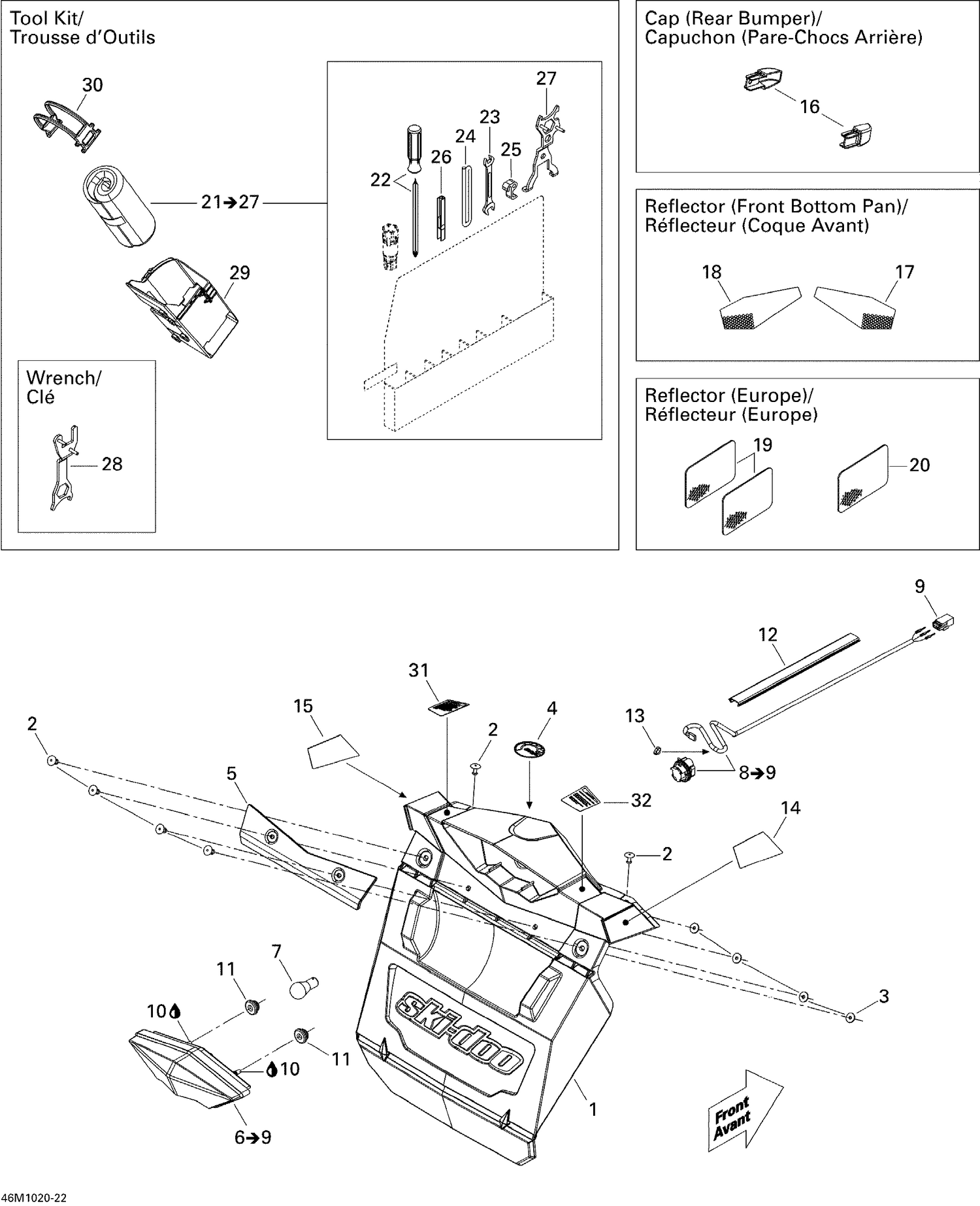

| Ref | Part Number | Description |
|---|
| 1 |
520000704 |
Snow Guard |
| 2 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 3 |
517124300 |
Washer |
| 4 |
219903305 |
BRP Logo 48 mm This part replaces 219902544. |
| 5 |
520000751 |
Reinforcement |
| 7 |
520000758 |
Bulb |
| 9 |
515175494 |
Male Housing, 3 Circuits |
| 10 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 11 |
705014429 |
Rubber Stopper This part replaces 705003666. |
| 12 |
520000829 |
Radiator Trim |
| 13 |
293750002 |
Tie Wrap 142 mm |
| 14 |
520000716 |
Red RH Rear Reflector |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
520000717 |
Red LH Rear Reflector |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
520000567 |
Full Moon Cap |
| 17 |
520000718 |
Yellow, RH Front Reflector |
| 18 |
520000719 |
Yellow, LH Front Reflector |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 22 |
529000004 |
SCREWDRIVER - Call your local BRP dealership |
| 23 |
529000002 |
FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 24 |
219704403 |
Was 412500100 Rope-Starter |
| 25 |
529000060 |
Starter Grip This part replaces 529019400. |
| 26 |
529035501 |
Spacing Tool |
| 27 |
520000988 |
WRENCH SUSPENSION - Call your local BRP dealership This part replaces 520000956. |
| 28 |
520000721 |
WRENCH - Call your local BRP dealership |
| 29 |
520000894 |
Tool Kit Rack |
| 30 |
520000528 |
Latch |
| 31 |
520000695 |
WARNING DECAL, SECURITY - Call your local BRP dealership |
