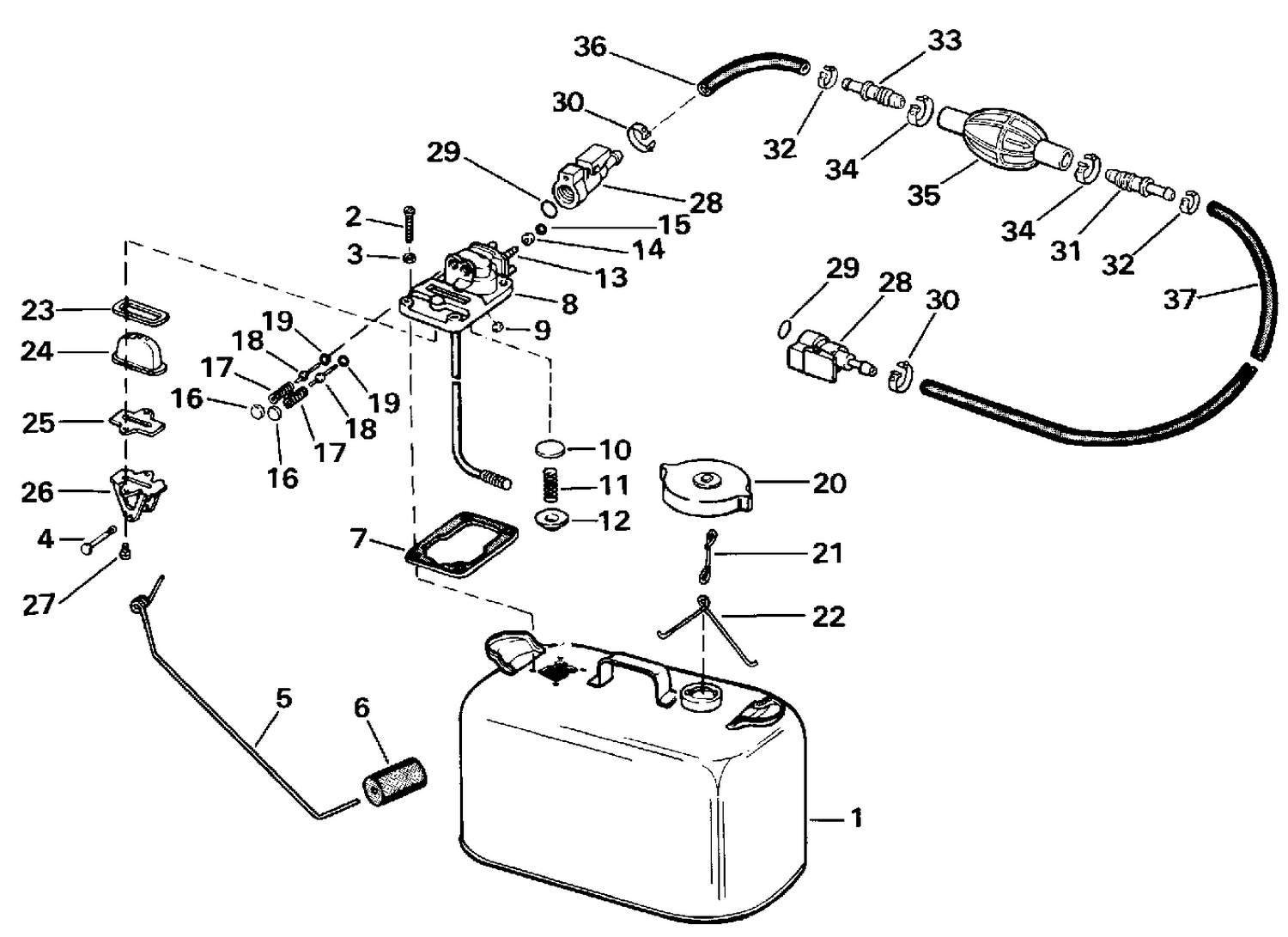

| Ref | Part Number | Description |
|---|
| 1 |
5008623 |
FUEL TANK This part replaces 0398458. |
| 2 |
0327888 |
SCREW |
| 5 |
0332400 |
INDICATOR |
| 6 |
0332370 |
FLOAT |
| 7 |
0125530 |
GASKET, Housing to tank This part replaces 0332403. |
| 8 |
0398409 |
HOUSING |
| 14 |
0332488 |
RING, Quad |
| 20 |
0388938 |
CAP ASSY., Fuel |
| 23 |
0332505 |
SEAL |
| 24 |
0312190 |
LENS |
| 25 |
0312193 |
GASKET |
| 26 |
0312191 |
SCREW, Indicator support |
| 27 |
0310849 |
HOUSING ASSY., Valve |
| 28 |
0396390 |
CONNECTOR ASSY., Fuel |
| 30 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 35 |
0328492 |
BULB, Primer |
| 36 |
HOSE, |
Short, 406mm (16") long |
| 37 |
HOSE, |
Long, 2515mm (99") long |
| 0398549 |
5008609 |
FLEXIBLE DE CARBURANT ET POIRE D'AMORÇAGE This part replaces 0398549. |
