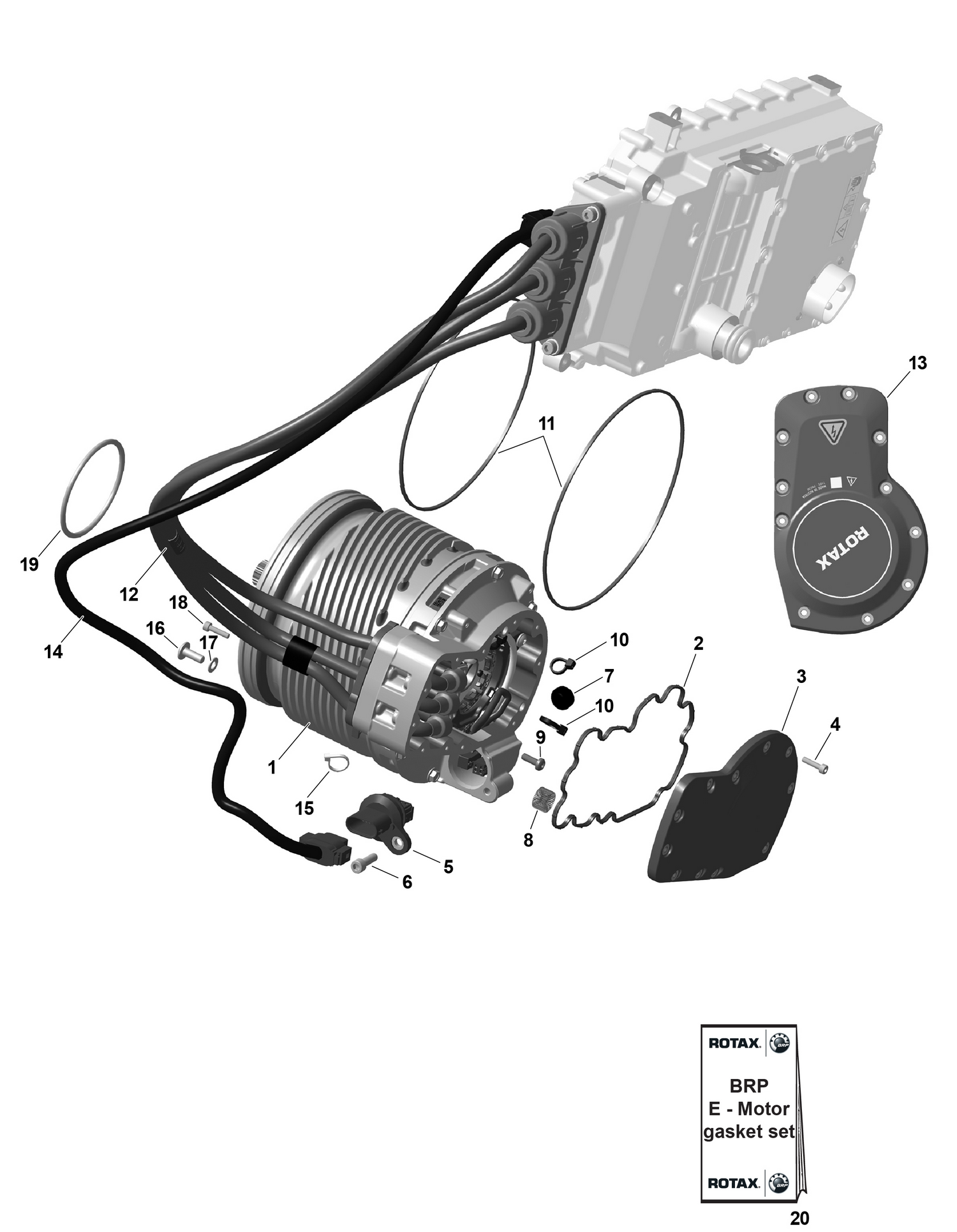

01- ROTAX - E-Motor
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420651192 | Gasket |
| 4 | 420440303 | Allen Screw M4X16 |
| 5 | 420264552 | Multiple Connector |
| 6 | 420241935 | Allen Screw M6x20 |
| 7 | 420572796 | Vent Plug |
| 8 | 420629280 | EMI Spring |
| 9 | 420440281 | Flange Screw |
| 10 | 420866714 | Tie Rap |
| 12 | 420573219 | Wiring Harness |
| 13 | 420201607 | Motor Cover |
| 14 | 420898385 | Communication Cable |
| 15 | 420866710 | Tie Rap |
| 18 | 420440303 | Allen Screw M4X16 |
