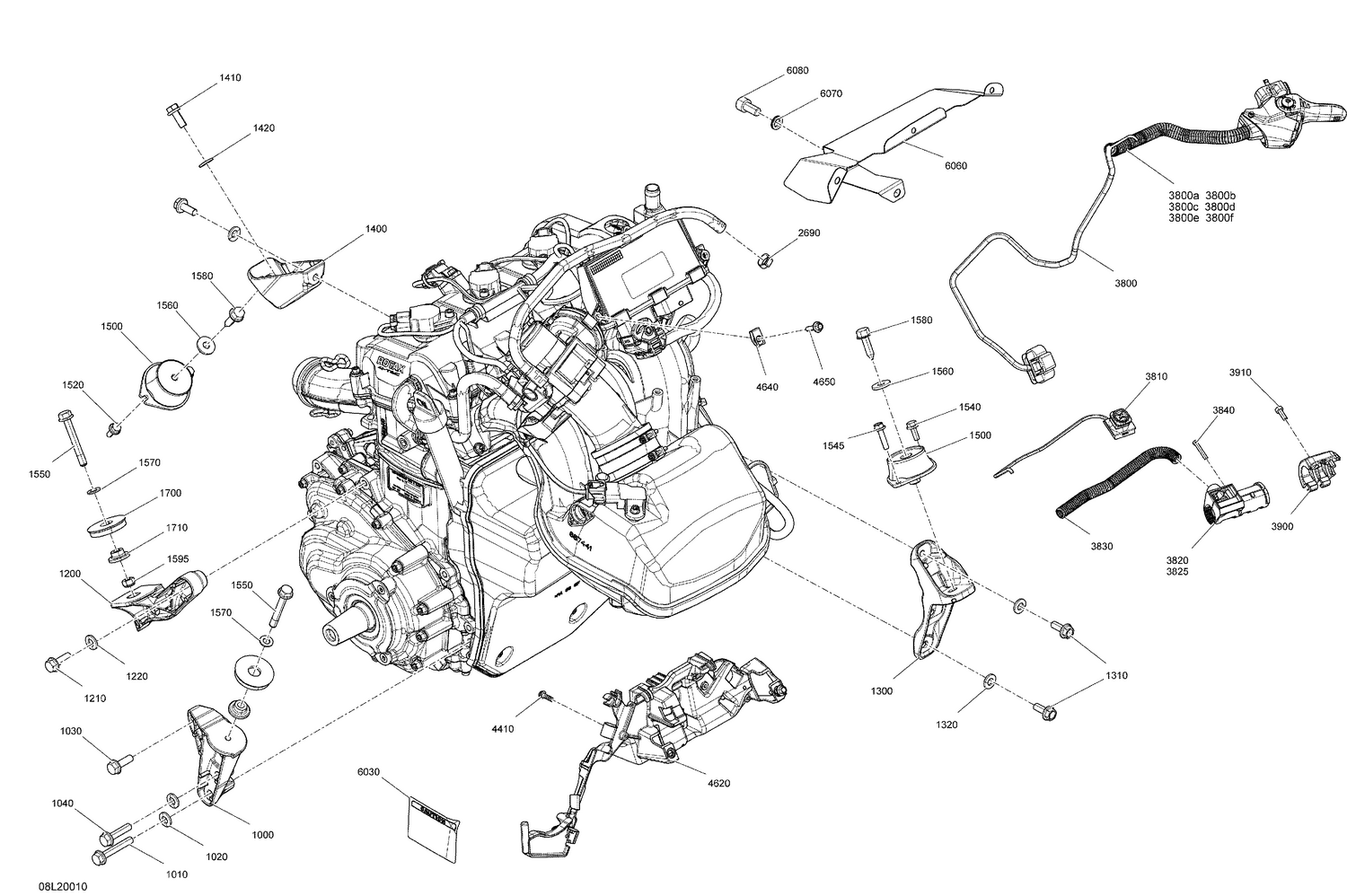

| Ref | Part Number | Description |
|---|
| 1000 |
512060591 |
Rear Support (PTO) |
| 1010 |
250001030 |
Hex. Flanged Screw M8 X 50 |
| 1020 |
250200146 |
Conical Spring Washer M8 |
| 1030 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1040 |
250000986 |
Hex. Flanged Screw M8 X 35 |
| 1200 |
512060593 |
Front Support (PTO) |
| 1210 |
250001016 |
Hex Flanged Screw M8 X 25 S.Grip |
| 1220 |
250200146 |
Conical Spring Washer M8 |
| 1300 |
512060594 |
Rear Support (MAG) |
| 1310 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 1320 |
250200146 |
Conical Spring Washer M8 |
| 1400 |
512060596 |
Front Support (MAG) |
| 1410 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 1420 |
250200146 |
Conical Spring Washer M8 |
| 1500 |
512060729 |
Rubber Mount |
| 1520 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 1540 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 1545 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 1550 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 1560 |
503183200 |
Yellow, Washer |
| 1570 |
250200008 |
Flat Washer With Teflon 8 mm |
| 1580 |
250000257 |
Hex. Flanged Screw M8 X 60, Scotch Grip |
| 1595 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1700 |
512061202 |
Stopper This part replaces 512060244. |
| 1710 |
512060285 |
Spacer |
| 2690 |
293650047 |
Crimp Clamp, 15.3-706R |
| 3800b |
512060862 |
Cap |
| 3800c |
250000623 |
Torx Screw M2.9 x 9.5 |
| 3800d |
250000671 |
Torx Screw |
| 3800e |
512060961 |
Screw |
| 3800f |
250000528 |
Torx Screw M5 X 20 |
| 3810 |
515177362 |
Emergency Stop Switch |
| 3820 |
512061453 |
Switch Support This part replaces 512060844. |
| 3825 |
294000973 |
Friction tape |
| 3830 |
515177946 |
Protector Tube |
| 3840 |
250000263 |
Torx Screw #8-18 |
| 3900 |
512060987 |
Front Housing |
| 3910 |
250000632 |
Torx Screw M5 x 14 |
| 4410 |
241151640 |
Hex. Flanged Screw K50 X 2.24 X 16 |
| 4620 |
512061012 |
Module Support |
| 4640 |
250000958 |
Panel Nut M5 X 0.8 |
| 4650 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 6030 |
516005521 |
Caution Decal, Checking Engine Oil Level |
| 6060 |
512060675 |
Heat shield plate |
| 6070 |
20068 |
Lock Washer D10 (nord-lock)(1=10pcs |
