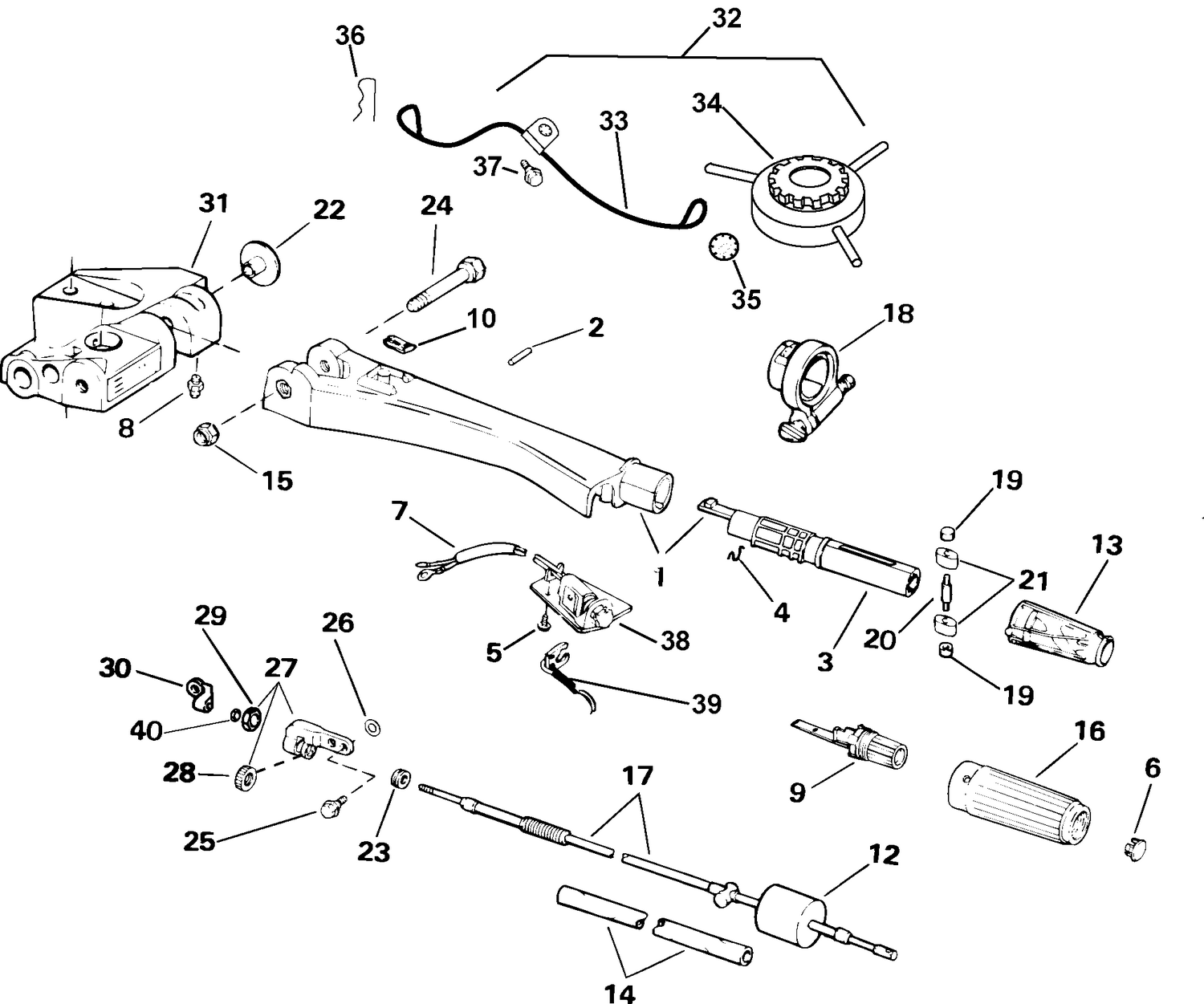

STEERING ARM
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0437144 | HANDLE ASSEMBLY, Tiller steering |
| 16 | 0436544 | TWIST GRIP |
| 17 | 5004652 | THROTTLE CABLE ASSY. |
| 23 | 0331634 | BAGUE, câble d'accélérateur |
| 27 | 5004651 | CONNECTOR, Throttle - kit |
| 30 | 0349930 | CONNECTOR, Throttle cable |
| 31 | 0355221 | STEERING ARM BRACKET, Tiller This part replaces 0340779. |
| 32 | 5006413 | HAND NUT & LANYARD ASSEMBLY This part replaces 5004742. |
| 34 | 5006413 | HAND NUT & LANYARD ASSEMBLY This part replaces 5004600. |
| 38 | 5005041 | SWITCH Assy, Stop |
