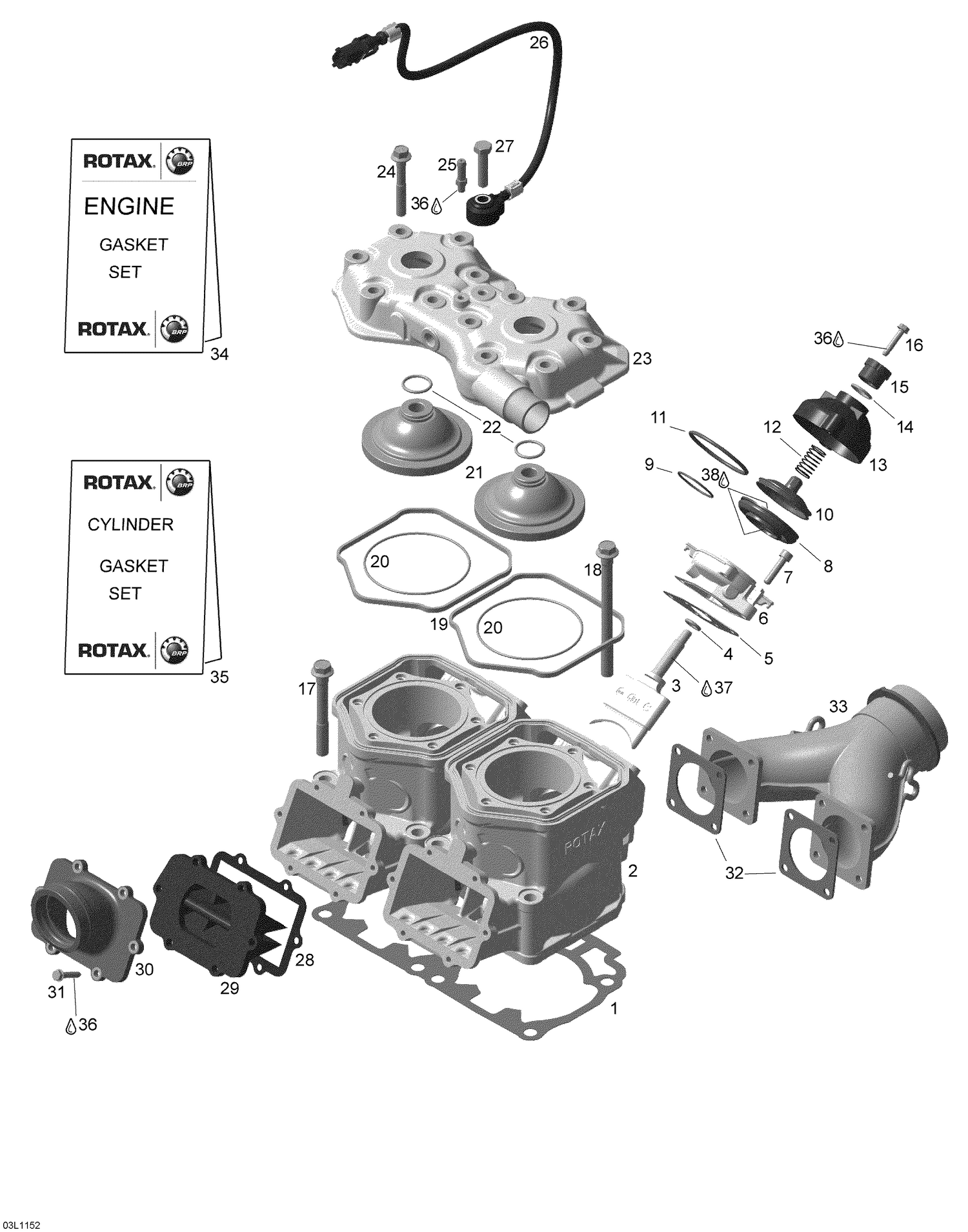

01- Cylinder And Reed Valve
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420431160 | Double Gasket 0.5 mm |
| 1 | 420431161 | Double Gasket 0.6 mm |
| 1 | 420431163 | Double Gasket 0.8 mm This part replaces 420931895. |
| 1 | 420931162 | Gasket, double 0.7 mm |
| 2 | 420413350 | CYLINDER - Call your local BRP dealership This part replaces 420623481. |
| 3 | 420854650 | Exhaust Valve |
| 4 | 420430110 | O-Ring |
| 5 | 420931542 | Gasket |
| 6 | 420854455 | Valve Housing |
| 7 | 205062544 | Socket Head Screw M6 X 25 |
| 8 | 420260729 | Bellows |
| 9 | 420838255 | Hose Spring |
| 10 | 420854449 | Exhaust Valve |
| 11 | 420939281 | Hose Spring This part replaces 420939280. |
| 12 | 420239954 | Spring This part replaces 420239944. |
| 13 | 420911559 | Valve Cover This part replaces 420911558. |
| 14 | 420430220 | O-Ring |
| 15 | 420241221 | Adjuster Screw |
| 16 | 420241271 | Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 17 | 420640524 | Hex. Collar Screw |
| 18 | 420640534 | Hex. Collar Screw |
| 19 | 420931590 | Rubber Ring |
| 20 | 293300026 | O-Ring |
| 21 | 420623358 | COMBUSTION CHAMBER INSERT - Call your local BRP dealership |
| 22 | 420430373 | O-Ring This part replaces 420430370. |
| 23 | 420623545 | Cylinder Head Cover |
| 24 | 420941627 | Hex. Screw M8 X 56.5 |
| 25 | 420924724 | Hose Nipple This part replaces 420924720. |
| 26 | 270000484 | Noise Sensor |
| 27 | 207083544 | Hex. Screw M8 X 35 |
| 28 | 420630815 | Gasket |
| 29 | 420924791 | REED VALVE ASS'Y - Call your local BRP dealership This part replaces 420924796. |
| 30 | 420667500 | Intake Socket |
| 31 | 420241271 | Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 32 | 420850552 | Gasket |
| 33 | 420673421 | Exhaust Manifold This part replaces 420673420. |
| 34 | 420889931 | Engine Gasket Set This part replaces 420889923. |
| 35 | 420889936 | Cylinder Gasket Set This part replaces 420889927. |
| 36 | 293800060 | Loctite 243, 10 ml |
| 37 | 420297433 | Molykote G-N, 50 g |
