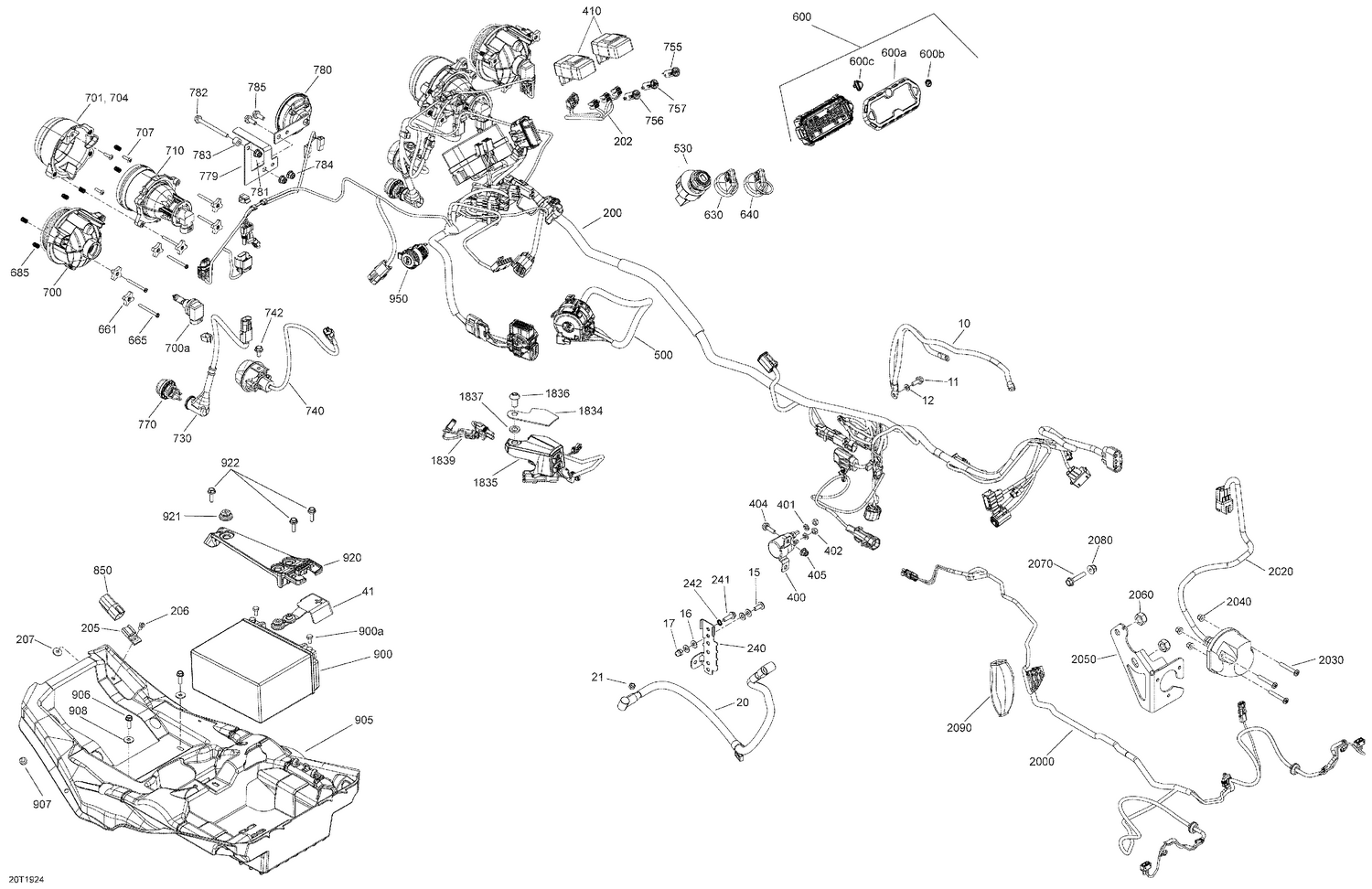

10- Electrical 6X6 - 1000 EFI - EUROPE
Parts (83)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 200 | 710006170 | No ABS Cable |
| 202 | 710005840 | Indicator Light Cable |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 211 | 710000992 | Clip |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 410 | 710003239 | Flasher Unit |
| 500 | 710006211 | LH Multi Fonction Control |
| 530 | 710008400 | Ignition Switch This part replaces 710003847. |
| 600 | 710006216 | Speedometer |
| 600a | 710001183 | Trim Ring Ass'y |
| 600b | 704904615 | BRP Logo13 mm |
| 600c | 715900265 | Button |
| 610 | 704904615 | BRP Logo13 mm |
| 630 | 710002183 | Grey, Electronic Key |
| 640 | 710000817 | Black, Electronic Key |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 685 | 517168600 | Spring |
| 700 | 710006177 | Low Beam |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 710 | 710002525 | High Beam Ass'y |
| 710a | 415129249 | Halogen Bulb |
| 740 | 710002964 | Flasher |
| 742 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 755 | 710005766 | Pilot Light Trailer Flasher |
| 756 | 710005767 | Pilot Light Tail Lamp |
| 757 | 710003909 | Pilot Lamp |
| 770 | 710001726 | Day Light |
| 779 | 710006113 | Horn Support |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207667044 | Hex. Flange Screw M6 X 70 |
| 783 | 708001129 | Bushing |
| 784 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 785 | 207661644 | Hex. Flange Screw M6 X 16 |
| 800 | 710005842 | Voltage Regulator |
| 802 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 803 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 850 | 710004904 | Connector Plug |
| 900 | 410301203 | Battery YUASA YTX20L |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710005528. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
| 1834 | 715004008 | Top Plate |
| 1835 | 710004990 | Multifonction Housing Ass'y |
| 1836 | 710005908 | Screw M10 X1.25 X 20 BHCS S.Grip |
| 1837 | 503192496 | Washer |
| 1839 | 710004567 | Cable |
| 2000 | 710009472 | Rear Lighting Wiring Harness This part replaces 710005932. |
| 2020 | 710005846 | Trailer Harness |
| 2030 | 40233 | Screw M5 X 35 |
| 2040 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 2050 | 705204572 | Plug Fastening Plate |
| 2060 | 232500416 | Elastic Stop Nut M10 |
| 2070 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 |
| 2080 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
