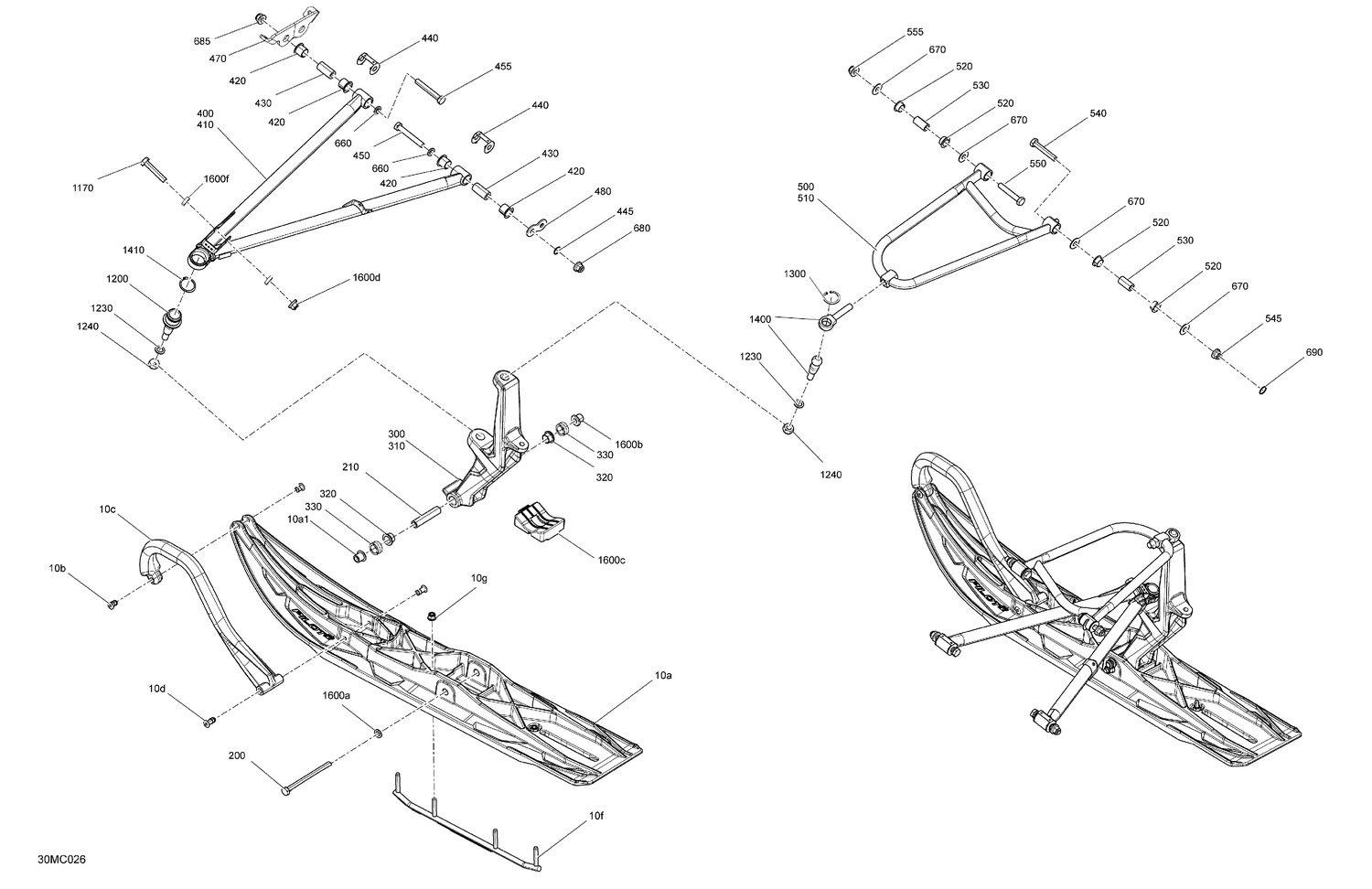

05- Suspension - Front
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 505071781 | Ski Bushing |
| 10b | 505071812 | Retainer 17mm long |
| 10c | 505072976 | Black, Handle |
| 10d | 505072133 | Retainer 23mm Long |
| 10f | 860202180 | Round Carbide Runner Kit |
| 10g | 233281414 | Hex. Flange Elastic Nut M8 |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 505073691 | Ski Axle |
| 300 | 505074706 | Deep Black, LH Ski Leg -8.5 |
| 310 | 505074707 | Deep Black, RH Ski Leg -8.5 |
| 320 | 505072690 | Leg Bushing |
| 330 | 505074949 | Spacer |
| 400 | 505075470 | LH Lower Suspension Arm 34" |
| 410 | 505075471 | RH Lower Suspension Arm 34" |
| 420 | 505072208 | Bushing |
| 430 | 505072209 | Sleeve |
| 440 | 505072634 | Wear Plate |
| 445 | 505072448 | O-Ring |
| 450 | 250001024 | Screw Hex. M10 X 70 |
| 455 | 250001024 | Screw Hex. M10 X 70 |
| 470 | 505073723 | Wear Plate |
| 480 | 505073844 | Plate |
| 500 | 505075178 | LH Upper Suspension Arm 34" |
| 510 | 505075179 | RH Upper Suspension Arm 34" |
| 520 | 505072250 | Bushing |
| 530 | 505072143 | Sleeve |
| 540 | 250001023 | Screw Hex. M10 X 60 |
| 545 | 250100165 | Hex. Flange Elastic Nut M10 |
| 550 | 250001023 | Screw Hex. M10 X 60 |
| 555 | 250100165 | Hex. Flange Elastic Nut M10 |
| 660 | 503189564 | Washer |
| 670 | 505072392 | Washer |
| 680 | 250100165 | Hex. Flange Elastic Nut M10 |
| 685 | 250100165 | Hex. Flange Elastic Nut M10 |
| 690 | 505072448 | O-Ring |
| 1170 | 250000824 | Hex. Flange Screw M8 X 58 |
| 1200 | 505074133 | Ball Joint |
| 1230 | 503192491 | Washer |
| 1240 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 1300 | 293370070 | Circlip |
| 1400 | 505072913 | Upper Ball Joint |
| 1410 | 293370098 | Snap Ring |
| 1600a | 503192496 | Washer |
| 1600b | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 1600c | 505074831 | Ski Stopper |
| 1600d | 233281466 | Elastic Flange Nut M8 |
